Analog Switches, Multiplexers, Demultiplexers
Browse available Analog Switches, Multiplexers, Demultiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4051ACSE+IC MUX 8:1 100OHM 16SOIC |
917 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4626EUK+TIC SW SPST-NOX1 500MOHM SOT23-5 |
4,788 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 500mOhm | - | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 40pC | 65pF, 65pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MAX4729EXT+TIC SWITCH SPDT X 1 5.5OHM SC70-6 |
2,167 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5.5Ohm | 50mOhm | 1.8V ~ 5.5V | - | 45ns, 26ns | 300MHz | 3pC | 6.5pF | 2nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
ADG1401BCPZ-REEL7IC SW SPST-NCX1 1.3OHM 8LFCSP |
5,395 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (2x3) |
|
|
ADG1402BCPZ-REEL7IC SW SPST-NOX1 1.3OHM 8LFCSP |
4,780 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (2x3) |
|
ADG788BCPZ-REEL7IC SWITCH SPDTX4 4.5OHM 20LFCSP |
8,396 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 160MHz | 5pC | 11pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
ISL84781IRZIC MUX 8:1 750MOHM 16TQFN |
5,056 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -39pC | 65pF, 470pF | 4nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
ADG734BRUZ-REEL7IC SWITCH SPDTX4 4.5OHM 20TSSOP |
2,542 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 200MHz | 5pC | 11pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
|
ADG734BRUZ-REELIC SWITCH SPDTX4 4.5OHM 20TSSOP |
2,353 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 200MHz | 5pC | 11pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
|
ADG734BRUZIC SWITCH SPDTX4 4.5OHM 20TSSOP |
1,564 | - |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 200MHz | 5pC | 11pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
|
ADG788BCPZIC SWITCH SPDTX4 4.5OHM 20LFCSP |
676 | - |
|
Datasheet | - | Tray | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 160MHz | 5pC | 11pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
MAX4715EXK+TIC SW SPST-NOX1 400MOHM SC70-5 |
9,124 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 400mOhm | - | 1.6V ~ 3.6V | - | 18ns, 12ns | - | 20pC | 55pF, 55pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
MAX4627EUK+TIC SW SPST-NOX1 500MOHM SOT23-5 |
5,245 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 500mOhm | - | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 40pC | 65pF, 65pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

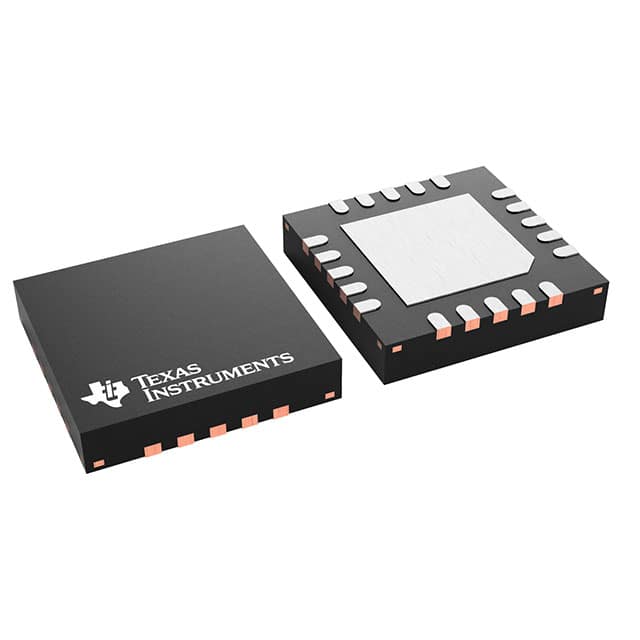

TMUX7234RRQRIC SW SPDT-NO/NCX4 5.8OHM 20WQFN |
4,536 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 4 | 5.8Ohm | 200mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 100ns, 90ns | 92MHz | 3pC | 16pF, 26pF | 1nA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-WQFN (4x4) |
|
TMUX7208PWRIC SWITCH SP8TX1 5.4OHM 16TSSOP |
1,176 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 5.4Ohm | 700mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 205ns, 270ns | 30MHz | 2pC | 14pF, 130pF | 70nA | -65dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
MAX4734EUB+IC SWITCH SP4TX1 800MOHM 10UMAX |
2,370 | - |
|
Datasheet | - | Tube | Active | SP4T | 4:1 | 1 | 800mOhm | 100mOhm | 1.6V ~ 3.6V | - | 25ns, 20ns | 90MHz | 60pC | 33pF, 117pF | 1nA | -56dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
MAX4717ETB+TIC SW SPDT-NO/NCX2 3OHM 10TDFN |
7,960 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 3Ohm | 100mOhm | 1.8V ~ 5.5V | - | 80ns, 40ns | 300MHz | 5pC | 9pF | 500pA | -80dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
MAX4624EZT+TIC SWITCH SPDT X 1 1OHM TSOT23-6 |
5,008 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1Ohm | 60mOhm | 1.8V ~ 5.5V | - | 50ns, 50ns | - | 65pC | 32pF | 2nA | -57dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
ADG1219BRJZ-REEL7IC SWITCH SPDTX1 200OHM SOT23-8 |
636 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 200Ohm | 3.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 105ns, 125ns | 520MHz | 0.1pC | 3.3pF, 5.1pF | 100pA | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
ADG1419BCPZ-REEL7IC SWITCH SPDT X 1 2.4OHM 8LFCSP |
10,107 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 2.4Ohm | 50mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 110ns, 140ns | 135MHz | -16pC | 19pF, 44pF | 500pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (2x3) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about selecting, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components through Winsun (HK) Electronics.
What should I check when selecting Analog Switches, Multiplexers, Demultiplexers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Analog Switches, Multiplexers, Demultiplexers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Analog Switches, Multiplexers, Demultiplexers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
