Analog Switches, Multiplexers, Demultiplexers
Browse available Analog Switches, Multiplexers, Demultiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG1401BRMZ-REEL7IC SWITCH SPST-NCX1 1.3OHM 8MSOP |
3,417 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG1401BRMZIC SWITCH SPST-NCX1 1.3OHM 8MSOP |
1,164 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
MAX4648EUT+TIC SWITCH SPST-NO X 1 25OHM SOT6 |
3,228 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 25Ohm | 800mOhm | 9V ~ 36V | ±4.5V ~ 20V | 100ns, 100ns | - | 4pC | 6pF, 6pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX4625EUT+TIC SWITCH SPDT X 1 1OHM SOT6 |
9,206 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1Ohm | 60mOhm | 1.8V ~ 5.5V | - | 50ns, 50ns | - | 65pC | 32pF | 2nA | -57dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
MUX36D04IPWRIC MUX DUAL 4:1 170OHM 16TSSOP |
2,747 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 4:1 | 2 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 4.3pF | 400pA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG417BRZ-REELIC SWITCH SPST-NCX1 35OHM 8SOIC |
4,384 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 35Ohm | - | 12V | ±15V | 160ns, 100ns | - | 7pC | 6pF, 6pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX4624EUT+TIC SWITCH SPDT X 1 1OHM SOT6 |
7,698 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1Ohm | 60mOhm | 1.8V ~ 5.5V | - | 50ns, 50ns | - | 65pC | 32pF | 2nA | -57dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
ADG759BCPZ-REEL7IC SWITCH SP4TX2 4.5OHM 20LFCSP |
8,848 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 42pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
MAX4649EKA+TIC SWITCH SPDT X 1 45OHM SOT23-8 |
13,609 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 45Ohm | 600mOhm | 9V ~ 36V | ±4.5V ~ 20V | - | - | 2pC | 6pF | 2nA | -92dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
MAX4634EUB+TIC SWITCH SP4T X 1 4OHM 10UMAX |
2,201 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 18ns, 11ns | - | 2pC | 13pF, 52pF | 100pA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
TMUX7462FRRPRIC SW SPST-NCX4 10.5OHM 16WQFN |
2,719 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 10.5Ohm | 500mOhm | 8V ~ 44V | ±5V ~ 22V | - | 550MHz | - | - | - | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
ADG812YRUZ-REEL7IC SW SPST-NOX4 650MOHM 16TSSOP |
6,155 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 25ns, 5ns | 90MHz | 30pC | 30pF, 35pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4707EXK+TIC SWITCH SPST-NOX1 3OHM SC70-5 |
2,075 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5.5V | - | 20ns, 15ns | 190MHz | 5pC | 17pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
ADG811YRUZIC SW SPST-NCX4 650MOHM 16TSSOP |
1,109 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 25ns, 5ns | 90MHz | 30pC | 30pF, 35pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG1419BRMZ-REEL7IC SWITCH SPDT X 1 2.4OHM 8MSOP |
3,592 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 2.4Ohm | 50mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 110ns, 140ns | 135MHz | -16pC | 19pF, 44pF | 500pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG1419BRMZIC SWITCH SPDT X 1 2.4OHM 8MSOP |
3,479 | - |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 1 | 2.4Ohm | 50mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 110ns, 140ns | 135MHz | -16pC | 19pF, 44pF | 500pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ADG1421BCPZ-REEL7IC SW SPST-NOX2 2.4OHM 10LFCSP |
3,539 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 2.4Ohm | 20mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 145ns, 145ns | 180MHz | -5pC | 18pF, 22pF | 500pA | -74dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-LFCSP-WD (3x3) |
|
ADG888YCPZ-REEL7IC SWITCH DPDTX2 480MOHM 16LFCSP |
3,247 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 4:2 | 2 | 480mOhm | 40mOhm | 1.8V ~ 5.5V | - | 30ns, 17ns | 29MHz | 70pC | 58pF | 200pA (Typ) | -99dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (4x4) |
|

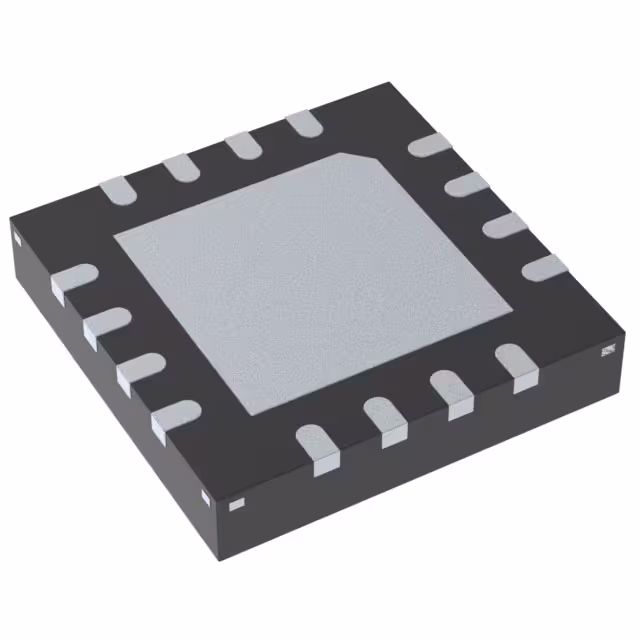

TMUX7412FRRPRIC SWITCH SPST-NCX4 11OHM 16WQFN |
3,053 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 11Ohm | 60mOhm | 8V ~ 44V | ±5V ~ 22V | 740ns, 100ns | 550MHz | 330pC | 10pF, 12pF | 700pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
|
ADG611YRUZ-REEL7IC SW SPST-NCX4 115OHM 16TSSOP |
4,955 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 40ns | 680MHz | -0.5pC | 5pF, 5pF | 100pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about selecting, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components through Winsun (HK) Electronics.
What should I check when selecting Analog Switches, Multiplexers, Demultiplexers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Analog Switches, Multiplexers, Demultiplexers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Analog Switches, Multiplexers, Demultiplexers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
