Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74HCT4053DB,118IC SWITCH SPDT X 3 120OHM 16SSOP |
8,000 | - |
|
Datasheet | - | Bulk | Active | SPDT | 2:1 | 3 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 34ns, 31ns | 170MHz | - | 3.5pF | 100nA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SSOP |
|
74HC4353N,652IC SWITCH SPDT X 3 120OHM 20DIP |
3,515 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 3 | 120Ohm | 6Ohm | 2V ~ 10V | ±1V ~ 5V | 40ns, 40ns | 170MHz | - | 3.5pF | 100nA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Through Hole | 20-DIP |
|
HEF4016BP,652IC SWITCH SPST-NOX4 350OHM 14DIP |
4,881 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 4 | 350Ohm | 10Ohm | 4.5V ~ 15.5V | - | - | - | - | - | 200nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 14-DIP |
|
74HCT4051DB,118NEXPERIA 74HCT4051DB - SINGLE-EN |
13,950 | - |
|
Datasheet | 74HCT | Bulk | Active | SP8T - Open/Closed | 8:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | - | 59ns, 49ns | 180MHz | - | 3.5pF | 400nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SSOP |
|
74HCT4066DB,112IC SWITCH QUAD 1X1 14SSOP |
1,092 | - |
|
Datasheet | * | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NX3L2G66GM,125IC SW SPST-NOX2 750MOHM 8XQFNU |
3,796 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 23ns, 8ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XQFNU (1.6x1.6) |
|
|
NX3L2T384GM,125IC SW SPST-NCX2 750MOHM 8XQFNU |
4,775 | - |
|
Datasheet | - | Cut Tape (CT) | Obsolete | SPST - NC | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 40ns, 15ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XQFNU (1.6x1.6) |
|
NX3L2T384GD,125IC SW SPST-NCX2 750MOHM 8XSON |
2,979 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 40ns, 15ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT996-2 (2x3) |
|

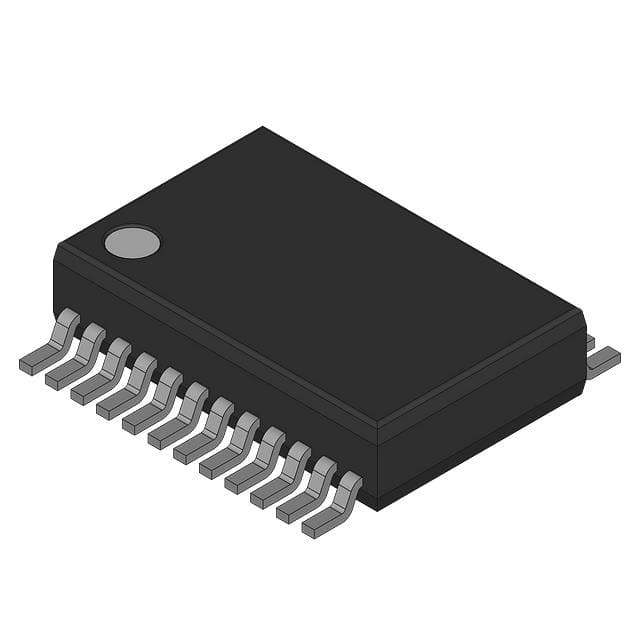

74HC4067DB,118NEXPERIA 74HC4067DB - SINGLE-END |
296,989 | - |
|
Datasheet | 74HC | Bulk | Active | - | 16:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | - | 45ns, 45ns | 100MHz | - | 3.5pF | 800nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-SSOP |
|
|
74HCT4066N,112IC SWITCH SPST-NOX4 20OHM 14DIP |
1,823 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 4 | 20Ohm (Typ) | 3Ohm | 4.5V ~ 5.5V | - | 44ns, 30ns | 200MHz | - | 3.5pF | 1µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Through Hole | 14-DIP |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
