Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLAS4717EPMTR2GIC SWITCH SPDT X 2 3.5OHM 10WQFN |
3,938 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3.5Ohm | 100mOhm | 1.8V ~ 5.5V | - | 30ns, 40ns | 90MHz | 9pC | 15pF | 1nA | -110dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WQFN (1.4x1.8) |
|
MC74LVX8053MELGIC SWITCH SPDTX3 25OHM 16SOEIAJ |
3,190 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 25Ohm | 8Ohm | 2.5V ~ 6V | - | - | 120MHz | - | 10pF | 100nA | -60dB @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
|
MC74LVXT8051MELGIC MUX 8:1 25OHM 16SOEIAJ |
3,748 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 25Ohm | 8Ohm | 2V ~ 6V | - | - | 80MHz | - | 10pF | 100nA | -60dB @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
|
MC74LVXT8051MGIC MUX 8:1 25OHM 16SOEIAJ |
4,172 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 25Ohm | 8Ohm | 2V ~ 6V | - | - | 80MHz | - | 10pF | 100nA | -60dB @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
|
MC74LVX8053MGIC SWITCH SPDTX3 25OHM 16SOEIAJ |
4,617 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 3 | 25Ohm | 8Ohm | 2.5V ~ 6V | - | - | 120MHz | - | 10pF | 100nA | -60dB @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
|
MC74LVX8051MGIC MUX 8:1 25OHM 16SOEIAJ |
1,568 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 25Ohm | 8Ohm | 2.5V ~ 6V | - | - | 80MHz | - | 10pF | 100nA | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
MC74VHC1G66DFT2GIC SWITCH SPST-NOX1 40OHM SC88A |
3,541 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 40Ohm | - | 2V ~ 5.5V | - | - | 180MHz | - | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
NLAS5213AMUTIC SWITCH DPST 8UDFN |
11,973 | - |
|
Datasheet | - | Bulk | Active | SPST - NO | 1:1 | 2 | 1.3Ohm | 150mOhm | 1.65V ~ 4.5V | - | 20ns, 15ns | 496MHz | - | 19pF | 1µA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UDFN (1.8x1.2) |
|
NLAS4684FCT1IC SW SPDTX2 800MOHM 10MICROBUMP |
2,460 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 800mOhm | 60mOhm | 1.8V ~ 5.5V | - | 30ns, 30ns | 9.5MHz | 15pC | 102pF, 104pF | 1µA | -83dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-Microbump |
|

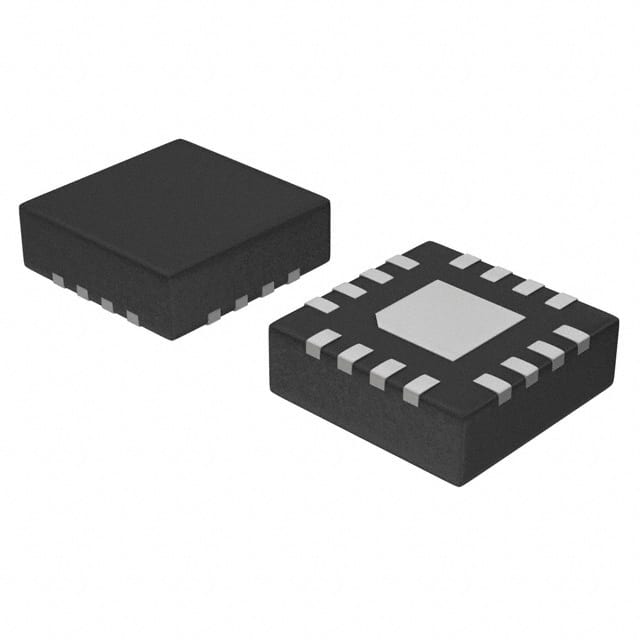

NLAS3699BMN1R2GIC SWITCH DPDT X 2 550MOHM 16QFN |
2,591 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 550mOhm | 50mOhm | 1.65V ~ 4.5V | - | 50ns, 50ns | 20MHz | 50pC | 7pF | 500nA | -62dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
