Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

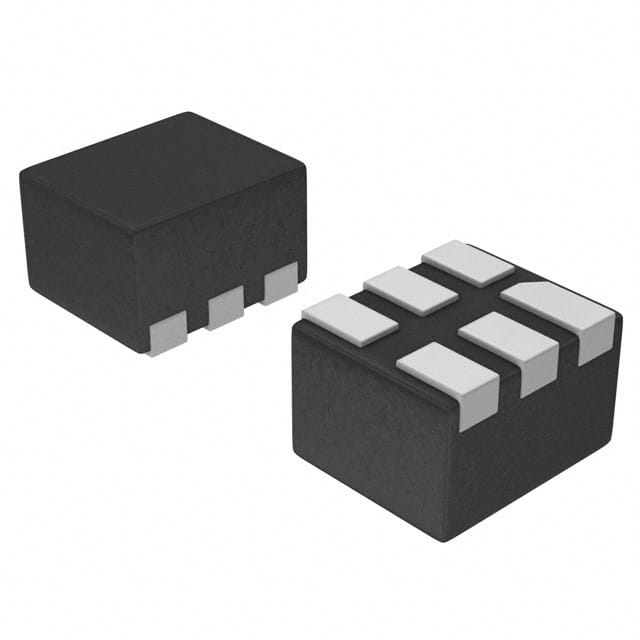

NLASB3157MTR2GIC SWITCH SPDT X 1 7OHM 6WDFN |
3,213 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 7Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 3.5ns | 250MHz | 7pC | 6.5pF | 100nA | -54dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-WDFN (1.2x1) |
|
MC74LVX4052DTGIC SWITCH SP4T X 2 26OHM 16TSSOP |
4,784 | - |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 26Ohm | 10Ohm | 2.5V ~ 6V | ±2.5V ~ 6V | - | 80MHz | 12pC | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
NLAS3699MN1R2GIC SWITCH DPDT X 2 550MOHM 16QFN |
3,093 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 550mOhm | 50mOhm | 1.65V ~ 4.5V | - | 50ns, 50ns | 20MHz | 50pC | 7pF | 500nA | -62dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
FSA266K8XIC SWITCH SPST-NO X 2 10OHM US8 |
2,635 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 10Ohm | 200mOhm | 1.65V ~ 5.5V | - | 3.2ns, 4.1ns | 300MHz | - | 5pF | 100nA | -70dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | US8 |
|
MC14052BFELGIC SWITCH DP4TX2 280OHM 16SOEIAJ |
1,877 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DP4T | 2:4 | 2 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
NLAST4501DFT2GIC SWITCH SPST-NOX1 25OHM SC88A |
5,453 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 25Ohm | - | 2V ~ 5.5V | - | 9ns, 10ns | 220MHz | 3pC | 10pF, 10pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
NLAS2750MUTAGIC SWITCH SPDT X 2 1.3OHM 10UQFN |
3,778 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 1.3Ohm | 100mOhm | 1.8V ~ 5V | - | 150ns, 130ns | 44MHz | 60pC | 5pF | 250nA | -60dB @ 300kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
NLHV4051DR2GIC MUX 8:1 280OHM 16SOIC |
4,445 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | - | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
NS5B1G385DFT2GIC SWITCH SPST-NOX1 15OHM SC88A |
13,214 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 15Ohm | - | 2V ~ 5.5V | - | 6ns, 2ns | 330MHz | - | 4.1pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
MM74HC4052MXIC SWITCH SP4T X 2 100OHM 16SOIC |
1,890 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | 41ns, 32ns | 35MHz | - | 5pF, 45pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
