Analog Switches, Multiplexers, Demultiplexers
Browse available Analog Switches, Multiplexers, Demultiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG413DY-T1-E3IC SW SPST-NO/NCX4 35OHM 16SOIC |
2,676 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PI3USB4000AZMEXIC SWITCH SPDT X 1 8OHM 10UQFN |
2,064 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 1:2 | 1 | 8Ohm | 500mOhm | 2.7V ~ 6V | - | 100µs, 50ns (Typ) | 1GHz | - | 5pF, 9pF | 1µA | -35dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
DG212BDQ-T1-E3IC SW SPST-NOX4 85OHM 16TSSOP |
5,608 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
PI3USB4000DQ1ZUAEXIC SWITCH SPDT X 1 10OHM 10UQFN |
19,378 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 500mOhm | 2.7V ~ 5.5V | - | 100µs, 50ns | 1GHz | - | 5pF | 1µA | -35dB @ 240MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 10-UQFN (1.5x2) |
|
|
DG508BEY-T1-E3IC MUX 8:1 380OHM 16SOIC |
2,400 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 380Ohm | 10Ohm | 12V ~ 44V | ±5V ~ 20V | 250ns, 240ns | 250MHz | 2pC | 3pF, 13pF | 1nA | -88dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TMUX1136DGSRIC SWITCH SPDT X 2 4OHM 10VSSOP |
5,900 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 220MHz | 6pC | 6pF | 80pA | -80dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
TMUX1104DQARIC SWITCH SP4T X 1 4OHM 10USON |
5,070 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | 12ns, 5ns (Typ) | 155MHz | 1.5pC | 6pF, 28pF | 80pA | -45dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
|

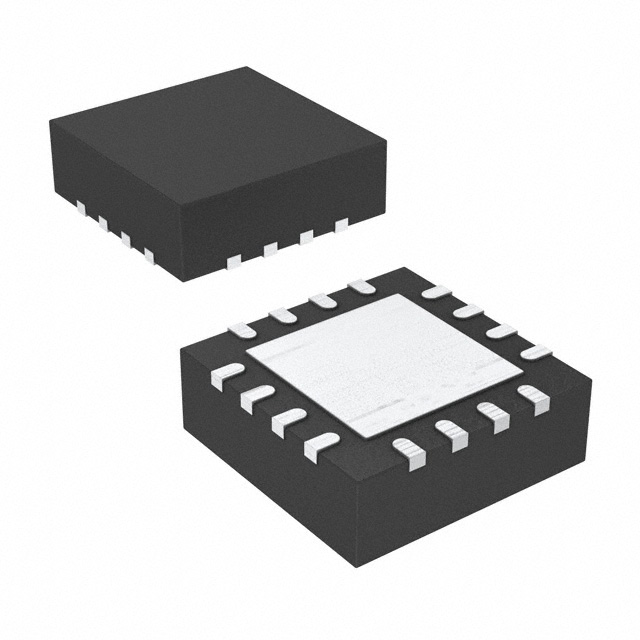

DG9409EDN-T1-GE4IC MUX DUAL 4:1 7OHM 16QFN |
4,409 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 4:1 | 2 | 7Ohm | 3.6Ohm (Max) | 2.7V ~ 12V | ±3V ~ 6V | 70ns, 44ns | - | 29pC | 23pF, 112pF | 2nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
|
TMUX1136DQARIC SWITCH SPDT X 2 4OHM 10USON |
2,603 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 220MHz | -6pC | 6pF | 80pA | -80dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
|
|
TMUX1104DGSRIC MUX 4:1 4OHM 10VSSOP |
6,373 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 4Ohm | 130mOhm | - | - | 12ns, 5ns (Typ) | 155MHz | 1.5pC | 6pF, 28pF | 80pA | -65dB ~ -45dB @ 1MHz ~ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
ISL43L210IHZ-TIC SWITCH SPDTX1 360MOHM SC70-6 |
31,721 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 360mOhm (Typ) | 2mOhm | 1.1V ~ 4.5V | - | 15ns, 10ns | - | 25pC | 40pF | 30nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
TMUX1111PWRIC SWITCH SPST X 4 4OHM 16TSSOP |
11,196 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | -, - | 300MHz | -1.5pC | 7pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG9424EDQ-T1-GE3IC SWITCH SPST-NOX4 3OHM 16TSSOP |
42,384 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 3Ohm | - | 3V ~ 16V | ±3V ~ 8V | 51ns, 35ns | - | 38pC | 49pF, 37pF | 1nA | -77dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG9424EDN-T1-GE4IC SWITCH SPST-NC X 4 3OHM 16QFN |
4,279 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 3Ohm | - | 3V ~ 16V | ±3V ~ 8V | 51ns, 35ns | - | 38pC | 49pF, 37pF | 1nA | -77dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
TMUX1112RSVRIC SWITCH SPST X 4 4OHM 16UQFN |
27,478 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | -1.5pC | 7pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
MAX4514EUK+TIC SWITCH SPST-NOX1 20OHM SOT23 |
21,979 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
ISL84544IHZ-TIC SWITCH SPDT X 1 60OHM 6SOT |
3,515 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
|
TS5A3159MDBVREPIC SWITCH SPDTX1 1.1OHM SOT23-6 |
6,072 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.1Ohm | 100mOhm | 1.65V ~ 5.5V | - | 35ns, 20ns | 100MHz | 36pC | 23pF | 4nA | -65dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
DG408DQ-T1-E3IC MUX 8:1 100OHM 16TSSOP |
6,836 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 5V ~ 36V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX20337AEFT+TIC SWITCH SPST-NOX1 330MOHM 6WLP |
1,390 | - |
|
Datasheet | Beyond-the-Rails™ | Tape & Reel (TR) | Active | SPST - NO | 2:1 | 1 | 330mOhm | 3mOhm | 1.6V ~ 5.5V | - | 32.5ms, 8.8ms (Typ) | 220MHz | - | 19pF | 100nA | -55dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-FC2QFN (1.25x1.75) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about selecting, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components through Winsun (HK) Electronics.
What should I check when selecting Analog Switches, Multiplexers, Demultiplexers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Analog Switches, Multiplexers, Demultiplexers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Analog Switches, Multiplexers, Demultiplexers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
