Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3A27518ZDEXIC SWITCH SPDT X 6 5.2OHM 24TQFN |
18,368 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 5.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 30ns, 30ns | 380MHz | - | 10pF, 16pF | 2µA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-TQFN (4x4) |
|

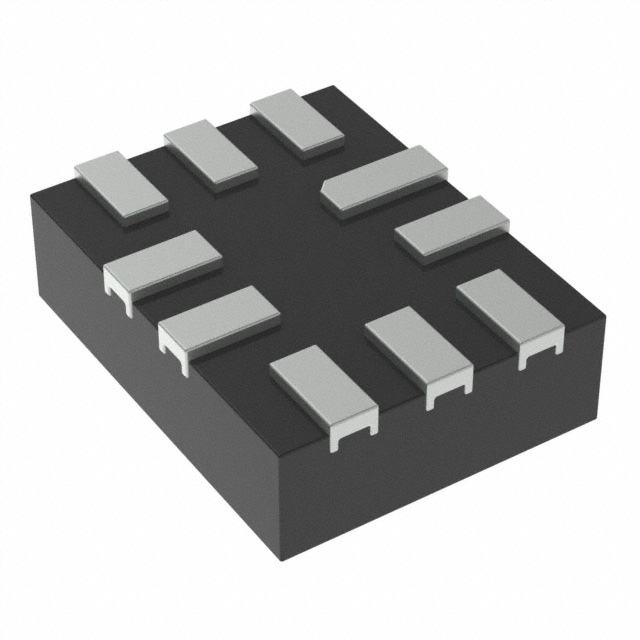

PI3USB4000AZMEXIC SWITCH SPDT X 1 8OHM 10UQFN |
2,064 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 1:2 | 1 | 8Ohm | 500mOhm | 2.7V ~ 6V | - | 100µs, 50ns (Typ) | 1GHz | - | 5pF, 9pF | 1µA | -35dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|

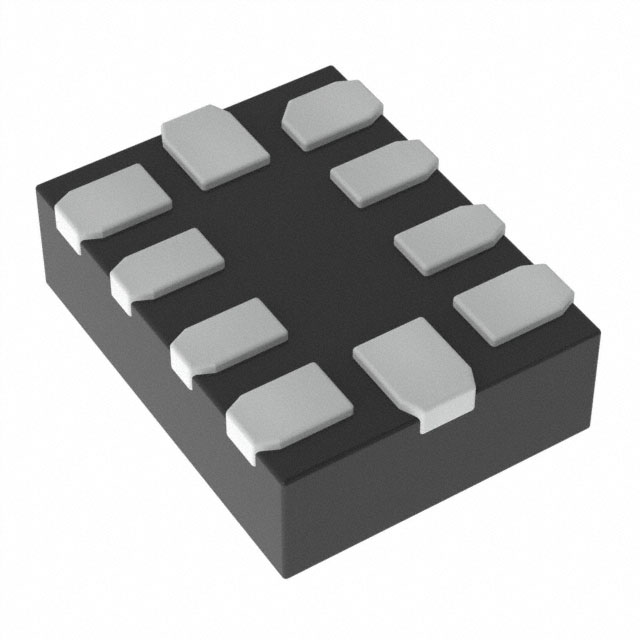

PI3USB4000DQ1ZUAEXIC SWITCH SPDT X 1 10OHM 10UQFN |
19,378 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 500mOhm | 2.7V ~ 5.5V | - | 100µs, 50ns | 1GHz | - | 5pF | 1µA | -35dB @ 240MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 10-UQFN (1.5x2) |
|

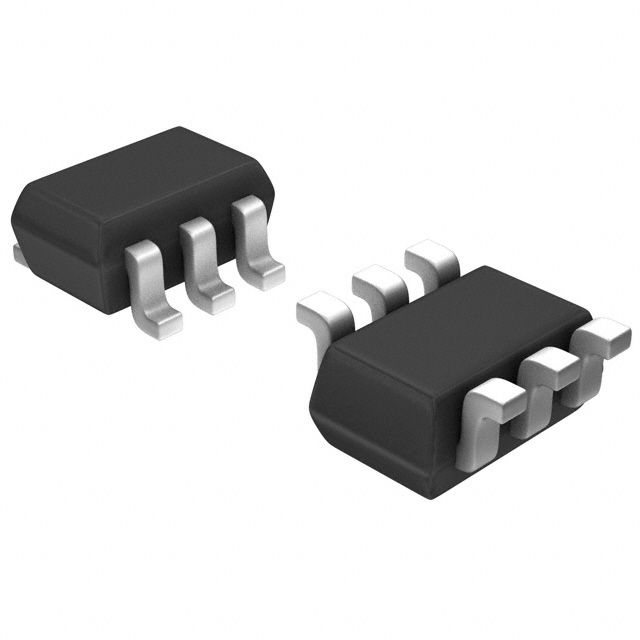

74LVC1G3157DW-7IC SWITCH SPDT X 1 10OHM SOT363 |
20,508 | - |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 250mOhm | 1.65V ~ 5.5V | - | 4ns, 7.5ns | 300MHz | 7pC | 6pF | 1µA | -42dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-363 |
|

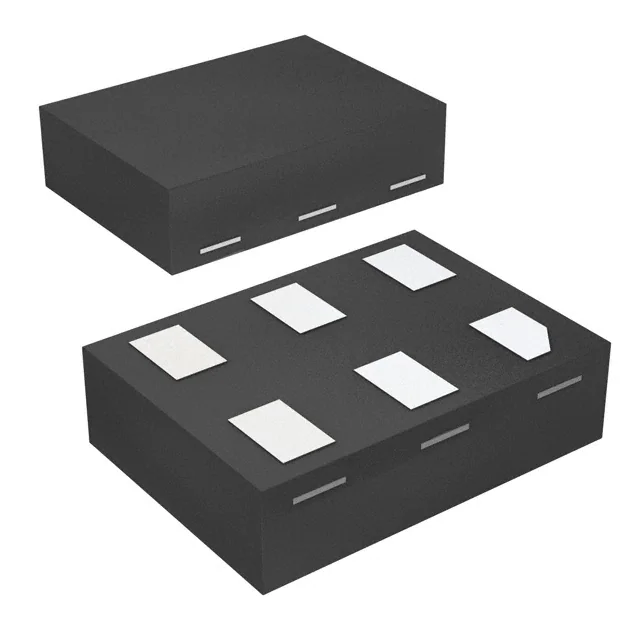

74LVC1G3157FZ4-7IC SWITCH SPDT X 1 10OHM 6DFN |
79,019 | - |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 250mOhm | 1.65V ~ 5.5V | - | 4ns, 7.5ns | 300MHz | 7pC | 6pF | 1µA | -42dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | X2-DFN1410-6 |
|
PI5A3157CEXIC SWITCH SPDTX1 13OHM SOT363-6 |
164,355 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 13Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 3.5ns | 250MHz | 7pC | 2.3pF | 100nA | -54dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|
|
PI3A268CZMEXIC SWITCH SPDTX2 400MOHM 10UQFN |
6,835 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 400mOhm (Typ) | 40mOhm | 1.65V ~ 4.3V | - | 50ns, 50ns | 85MHz | 52pC | 21pF | 1µA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
|
PI3USB4000AZUAEXIC MUX 1:2 8OHM 10UQFN |
614 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 1:2 | 1 | 8Ohm | 500mOhm | 2.7V ~ 6V | - | 100µs, 50ns (Typ) | 1GHz | - | 7pF, 9pF | 1µA | -35dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.5x2) |
|
|
PI3USB4002AQ1ZUAEXIC SWITCH SPST X 2 10OHM 10UQFN |
3,068 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 2 | 10Ohm | 500mOhm | 2.7V ~ 5.5V | - | - | 1GHz | - | 5pF | 1µA | -35dB @ 240MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 10-UQFN (1.5x2) |
|
|
PI5A23157ZUAEXIC SWITCH SPDT X 2 15OHM 10UQFN |
6,487 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 15Ohm | 150mOhm | 1.65V ~ 5.5V | - | 12ns, 8ns | 220MHz | 7pC | 2.8pF | 1µA | -66dB @ 10MHz | -40°C ~ 125°C | - | - | Surface Mount | 10-UQFN (1.5x2) |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
