Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3A3899ZTAEXIC SWITCH DPDT X 2 2.4OHM 16UQFN |
2,672 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:2 | 2 | 2.4Ohm | 200mOhm | 1.65V ~ 4.3V | - | 8ns, 12ns | 330MHz | 13pC | 7pF | 1µA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UQFN (1.8x2.6) |
|
|
PI3USB3031XUAEXUSB2 SWITCH X2-QFN1616-12 T&R 3. |
2,177 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T - Open/Closed | 3:1 | 2 | 7Ohm | 100mOhm | 1.8V ~ 5.5V | - | 100µs, 100µs | 6.5GHz | - | 1.3pF, 1.3pF | 2µA | -65dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-STQFN (1.6x1.6) |
|
|
PSMUX136ZUAEXIC SW SPDT-NO/NCX2 9OHM 10UQFN |
1,544 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 9Ohm | 100mOhm | 1.8V ~ 5.5V | - | 100µs, 50ns (Typ) | 5.5GHz | - | 2.2pF | 2µA | -37dB @ 240MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-UQFN (1.5x2) |
|
PI3A223ZMEXIC SWITCH SPDTX2 750MOHM 10UQFN |
5,340 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 750mOhm | 50mOhm (Typ) | 1.65V ~ 4.2V | - | 13ns, 38ns (Typ) | 84MHz | 50pC | 20pF, 20pF | 1µA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|

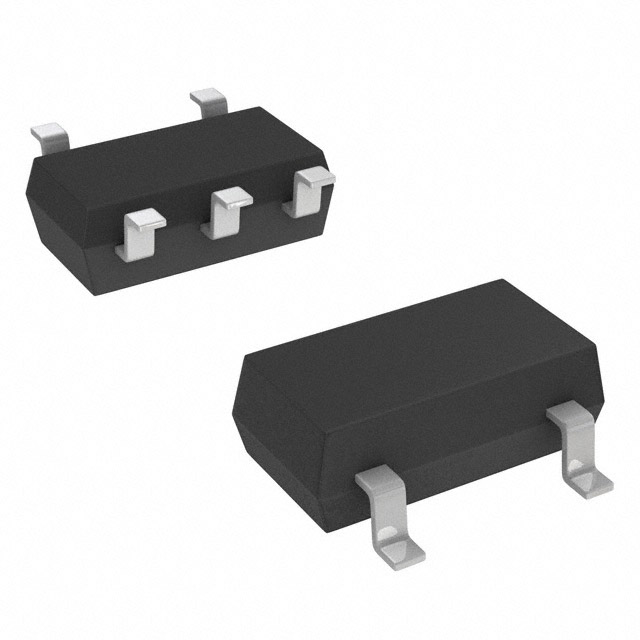

PI5A3167CTAEXIC SW SPST-NCX1 1.2OHM SOT23-5 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 1.2Ohm | - | 1.65V ~ 5.5V | - | 6ns, 7.5ns | 200MHz | 35pC | 15pF | 20nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
PI5A3166TAEXIC SW SPST-NOX1 1.2OHM SOT23-5 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 1.2Ohm | - | 1.65V ~ 5.5V | - | 2ns, 5ns | 200MHz | 35pC | 15pF | 20nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
PI5A3157BC6EXIC SWITCH SPDTX1 13OHM SOT363-6 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 11Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 4.5ns | 350MHz | 7pC | 2.5pF | 100nA | -64dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|
|
PI5A4157CEXIC SWITCH SPDTX1 1.2OHM SOT363-6 |
1,119 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.2Ohm | 10mOhm | 1.65V ~ 5.5V | - | 18ns, 20ns | 150MHz | 35pC | 3.5pF | 20nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|
PI5A4157TAEXIC SWITCH SPDTX1 1.2OHM SOT23-6 |
1,084 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.2Ohm | 10mOhm | 1.65V ~ 5.5V | - | 18ns, 20ns | 150MHz | 35pC | 3.5pF | 20nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|

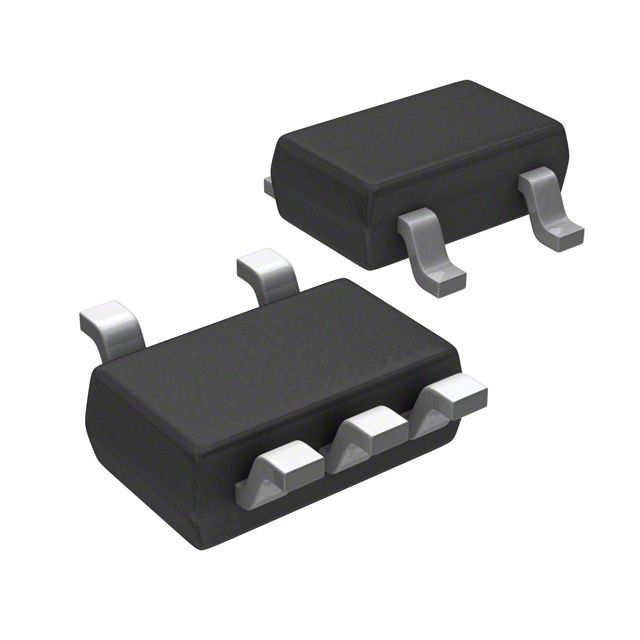

PI5A3167CCEXIC SW SPST-NCX1 1.2OHM SC70-5 |
1,897 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 1.2Ohm | - | 1.65V ~ 5.5V | - | 6ns, 7.5ns | 200MHz | 35pC | 15pF | 20nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
