Analog Switches, Multiplexers, Demultiplexers
Use the filters and product table below to compare Analog Switches, Multiplexers, Demultiplexers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI5A3157ZAEXIC SWITCH SPDT X 1 13OHM 6TDFN |
2,362 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 13Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 3.5ns | 250MHz | 7pC | 2.3pF | 100nA | -54dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN (1.5x1) |
|
PI3USB4000BZUAEXIC SWITCH SPDT X 1 8OHM 10UQFN |
2,483 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 8Ohm | 500mOhm | 2.7V ~ 6V | ±2.7V ~ 6V | 100µs, 50ns (Typ) | 1GHz | - | 5pF, 9pF | 1µA | -35dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.5x2) |
|
PI5A4213GAEXIC SWITCH SP3T X 2 2OHM 12CSP |
2,506 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP3T | 3:1 | 2 | 2Ohm | 100mOhm (Max) | 1.65V ~ 5.5V | - | 15ns, 12ns | 30MHz | 35pC | 50pF | 80nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-CSP (2.0x1.5) |
|
PS323CUAEXIC SWITCH SPST-NOX2 35OHM 8MSOP |
3,104 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 35Ohm | 800mOhm | 2.5V ~ 16V | - | 75ns, 50ns | - | 1pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
.jpg "PI3A3160ZGEX")
|
PI3A3160ZGEXIC SWITCH SPDTX2 450MOHM 12TDFN |
2,391 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 450mOhm | 80mOhm (Max) | 1.5V ~ 4.2V | - | 20ns, 12ns | - | 100pC | 56pF, 56pF | 100nA | -41dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-TDFN (3.5x3) |
|
PI5A3158ZAEXIC MUX 12TDFN |
2,764 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 12-TDFN (3x1) |
|
PI5A124TEXIC SWITCH SPDT X 1 10OHM SOT23-6 |
4,640 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 200mOhm | 2V ~ 6V | - | 15ns, 7ns | 326MHz | 1.6pC | 5.5pF, 5.5pF | 200pA (Typ) | -43dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
PI5A126WIC SWITCH SPST-NOX2 10OHM 8SOIC |
4,904 | - |
|
Datasheet | - | Bag | Obsolete | SPST - NO | 1:1 | 2 | 10Ohm | 200mOhm | 2V ~ 6V | - | 15ns, 7ns | 326MHz | 1.6pC | 5.5pF, 5.5pF | 200pA (Typ) | -43dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |

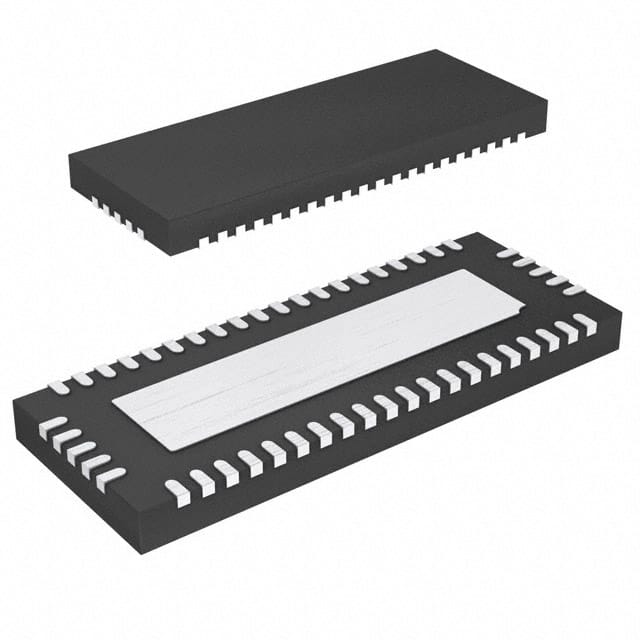

 Exp Pad.jpg "PI2SSD3212ZLEX")
|
PI2SSD3212ZLEXIC SWITCH SPDT X 14 8OHM 52TQFN |
2,698 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 14 | 8Ohm (Typ) | - | 1.35V, 1.5V, 1.8V | - | - | 3.3GHz | - | - | - | - | - | - | - | Surface Mount | 52-TQFN (3.5x9) |
|
|
PS301CUAIC SWITCH SPST-NOX1 60OHM 8MSOP |
2,283 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 1 | 60Ohm | 800mOhm | 2.5V ~ 16V | - | 150ns, 100ns | - | 1pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
Analog Switches, Multiplexers, Demultiplexers FAQ
Common questions about filtering, comparing and sourcing Analog Switches, Multiplexers, Demultiplexers components.
How can I narrow the Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Analog Switches, Multiplexers, Demultiplexers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
