Analog Switches - Special Purpose
Browse available Analog Switches - Special Purpose part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

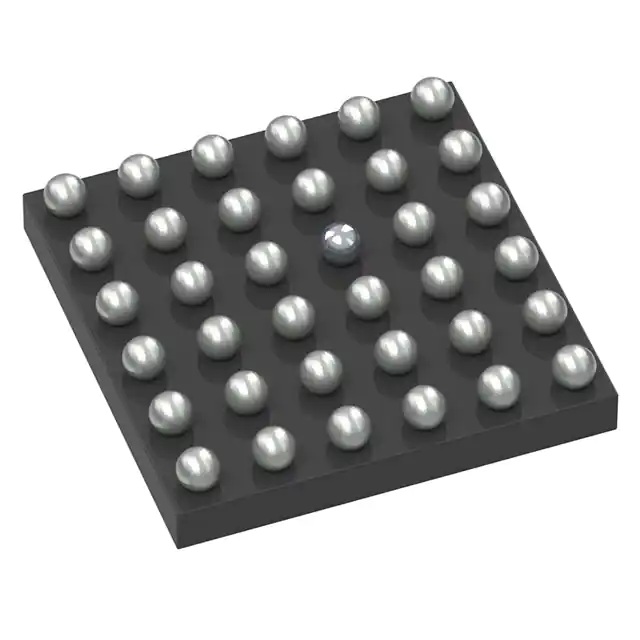

FSA646AUCXIC SWITCH SPDT 36-WLCSP |
9,286 | - |
|
Datasheet | - | 36-UFBGA, WLCSP | Tape & Reel (TR) | Active | MIPI | 2:1 | SPDT | 4 | 6Ohm (Typ) | 1.5V ~ 5V | - | 4.7GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-WLCSP (2.43x2.43) |
|
HD3SS3212RKSTQ1MULTIPLEXER |
37,482 | - |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1, 1:2 | SPDT | 2 | 8Ohm | 2.7V ~ 3.6V | ±2.7V ~ 3.6V | 8GHz | USB 3.1 | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 20-VQFN (2.5x4.5) |
|
HD3SS6126RUARIC MUX 2:1 8 OHM 42WQFN |
24,693 | - |
|
Datasheet | - | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB, Telecommunications | 2:1 | - | 1 | 8Ohm | 3V ~ 3.6V | - | 10GHz | Bi-Directional, SATA, USB 2.0, USB 3.0 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
PI3DBS16222ZLEXPCIE SWITCH W-QFN2545-30 |
7,763 | - |
|
Datasheet | - | 30-WFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 1:1 | 8PST | 1 | - | 2.97V ~ 3.63V | - | - | USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 30-TQFN (2.5x4.5) |
|
PI3DBS16213XEAEXPCIE SWITCH X1-QFN2040-24 T&R 3. |
17,739 | - |
|
Datasheet | - | 24-XFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 3:1 | SP3T | 2 | - | 3.3V | - | 12GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 24-X1QFN (2x4) |
|
PI3USB32212ZLEXUSB3 SWITCH W-QFN3060-32 T&R 3.5 |
31,798 | - |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 1:2 | SPDT | 2 | 13Ohm | 2.97V ~ 3.63V | - | 10.6GHz | USB 2.0, USB 3.0 | - | - | - | Surface Mount | 32-TQFN (3x6) |
|
PI3L2500ZHEXIC LAN SWITCH V-QFN3590-42 |
23,450 | - |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Telecommunications | 2:1 | SPDT | 8 | - | 3V ~ 3.6V | - | 3GHz | - | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3DBS16412ZHEXPCIE SWITCH V-QFN3590-42 |
56,969 | - |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PCIe 4.0, USB | 2:1 | SPDT | 4 | - | 3.3V | - | 13GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
HD3SS214IZXHR8.1 GBPS DISPLAYPORT 1.4 1-TO-2 |
1,514 | - |
|
Datasheet | - | 50-VFBGA | Tape & Reel (TR) | Active | DisplayPort | 2:1 | SPDT | 2 | 12Ohm | 3V ~ 3.6V | - | 8GHz | Differential Compatibility | -40°C ~ 105°C | - | - | Surface Mount | 50-NFBGA (5x5) |
|
PI3USB31532ZLCEXIC SWITCH USB3 W-QFN3060-40 |
6,848 | - |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 3:2 | - | 5 | - | 3V ~ 3.6V | - | 8.3GHz | Bi-Directional, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 40-TQFN (3x6) |
|
|
PI3DBS16413ZHEXPCIE SWITCH V-QFN3590-42 |
10,704 | - |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PCIe 4.0, USB | 3:1 | SPDT | 4 | - | 3.3V | - | 12GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI3WVR14412Q2ZLCEXDISPLAY SWITCH W-QFN3060-40 T&R |
2,124 | - |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, Video | 2:1 | SPDT | 4 | - | 3.3V | - | - | HDMI, MIPI, USB 3.2 | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 40-TQFN (3x6) |
|
MAX4885ETJ+TIC SWITCH 2X1 32TQFN |
1,998 | - |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 1 | 7.5Ohm | 4.5V ~ 5.5V | - | - | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (5x5) |
|
MAX4906ELB+TIC USB SWITCH DUAL 1X2 10UDFN |
501 | - |
|
Datasheet | - | 10-WFDFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 7Ohm | 3V ~ 3.6V | - | 1GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
OPA875IDGKRIC VIDEO MUX 2:1 8VSSOP |
141 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 1 | - | 5V | ±5V | 425MHz | Buffered, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
MAX4740ETE+IC SWITCH QUAD SPDT 16TQFN |
2,497 | - |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tube | Active | Audio | 2:1 | SPDT | 4 | 900mOhm | 1.6V ~ 5.5V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
|
OPA875IDGKTIC VIDEO MUX SNGL 2:1 8VSSOP |
1,238 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 1 | - | 5V | ±5V | 425MHz | Buffered, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
MAX7356EUG+IC MULTIPLEXER 8X1 24TSSOP |
266 | - |
|
Datasheet | - | 24-TSSOP (0.173", 4.40mm Width) | Tube | Active | I2C | 8:1 | - | 1 | 24Ohm | 2.3V ~ 5.5V | - | - | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
MAX14979EETX+IC SWITCH HIGH BW LVDS 36TQFN |
1,256 | - |
|
Datasheet | - | 36-WFQFN Exposed Pad | Tube | Active | LVDS | - | DPDT | 4 | 5.5Ohm | 3V ~ 3.6V | - | 650MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-TQFN (6x6) |
|
MAX4908ETD+TIC MULTIPLEXER DUAL 3X1 14TDFN |
1,901 | - |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Audio | 3:1 | SP3T | 2 | 750mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TDFN (3x3) |
Analog Switches - Special Purpose FAQ
Common questions about selecting, comparing and sourcing Analog Switches - Special Purpose components through Winsun (HK) Electronics.
What should I check when selecting Analog Switches - Special Purpose components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Analog Switches - Special Purpose part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Analog Switches - Special Purpose parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Analog Switches - Special Purpose components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
