Gates and Inverters - Multi-Function, Configurable
Browse available Gates and Inverters - Multi-Function, Configurable part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G97DCKRIC MF/CFG 1-CIR 3-IN SC-70-6 |
33,927 |
1+：$0.23000 10+：$0.15800 25+：$0.13960 100+：$0.11920 250+：$0.10948 500+：$0.10362 1000+：$0.09878 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
SN74LVC1G97DRLRIC MF/CFG 1-CIR 3-IN SOT-5X3 |
541 |
1+：$0.41000 10+：$0.28700 25+：$0.25560 100+：$0.22120 250+：$0.20476 500+：$0.19486 1000+：$0.18671 |
|
Datasheet | 74LVC | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-5X3 |
|
SN74LVC1G97DBVRIC MF/CFG 1-CIR 3-IN SOT-23-6 |
23,465 |
1+：$0.23000 10+：$0.16000 25+：$0.14200 100+：$0.12130 250+：$0.11148 500+：$0.10558 1000+：$0.10071 |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
NC7SZ57P6XIC MF/CFG 1-CIR 3-IN SC-88 |
70,178 |
1+：$0.11000 10+：$0.07400 25+：$0.06440 100+：$0.05410 250+：$0.04920 500+：$0.04626 1000+：$0.04384 |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
SN74LVC1G97DCKTIC MF/CFG 1-CIR 3-IN SC-70-6 |
45,737 |
1+：$1.00000 10+：$0.71700 25+：$0.64680 100+：$0.56910 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
MC100EP05DTR2GIC AND 1-CIR 2-IN 8-TSSOP |
11 |
11+：$27.27000 |
|
Datasheet | 100EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
|
MC100EP08DTR2GIC XOR/XNOR 1-CIR 2-IN 8-TSSOP |
5,152 |
1+：$13.03000 10+：$10.23700 25+：$9.53880 100+：$8.97930 500+：$8.47100 |
|
Datasheet | 100EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
NB7L86AMNHTBGIC MF/CFG 1-CIR 2-IN 16-QFN |
498 |
1+：$42.71000 10+：$34.89800 25+：$32.98800 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.375V ~ 3.465V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC722LP3EIC AND 1-CIR 4-IN 16-QFN |
81 |
1+：$139.95000 10+：$118.26500 25+：$112.85160 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Strip | Active | AND/NAND/NOR/OR GATE | 1 | 4 | No | Differential, Single-Ended | - | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
74LVC1G97GW,125IC MF/CFG 1-CIR 3-IN 6-TSSOP |
9,660 |
1+：$0.14000 10+：$0.09300 25+：$0.08200 100+：$0.06920 250+：$0.06316 500+：$0.05952 1000+：$0.05652 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
74LVC1G57GW,125IC MF/CFG 1-CIR 3-IN 6-TSSOP |
16,353 |
1+：$0.14000 10+：$0.09200 25+：$0.08040 100+：$0.06790 250+：$0.06196 500+：$0.05840 1000+：$0.05545 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
74LVC1G97GV,125IC MF/CFG 1-CIR 3-IN 6-TSOP |
650 |
1+：$0.17000 10+：$0.11800 25+：$0.10360 100+：$0.08780 250+：$0.08032 500+：$0.07582 1000+：$0.07210 |
|
Datasheet | 74LVC | SC-74, SOT-457 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
|
SN74LVC1G98DCKRIC CONFIG MULT-FUNC GATE SC70-6 |
10,237 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|

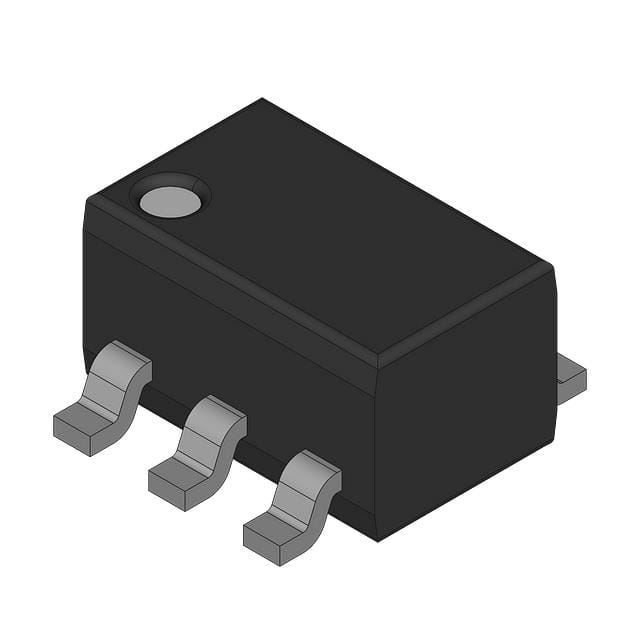

74LVC1G58GW,125IC MF/CFG 1-CIR 3-IN 6-TSSOP |
9,746 |
1+：$0.17000 10+：$0.11200 25+：$0.09840 100+：$0.08350 250+：$0.07644 500+：$0.07216 1000+：$0.06863 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
SN74LVC1G3208DCKRIC AND 1-CIR 3-IN SC-70-6 |
7,778 |
1+：$0.78000 10+：$0.56000 25+：$0.50320 100+：$0.44140 250+：$0.41180 500+：$0.39398 1000+：$0.39015 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G58DCKRIC MULT-FUNCTION GATE SC70-6 |
21,481 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G57DCKRIC MF/CFG 1-CIR 3-IN SC-70-6 |
4,243 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G57DBVRIC MF/CFG 1-CIR 3-IN SOT-23-6 |
26,407 |
1+：$0.34000 10+：$0.23600 25+：$0.20920 100+：$0.18020 250+：$0.16628 500+：$0.15792 1000+：$0.15102 |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
SN74LVC1G97DSFRIC MF/CFG 1-CIR 3-IN 6-SON |
60 |
1+：$0.34000 10+：$0.23500 25+：$0.20920 100+：$0.18030 250+：$0.16648 500+：$0.15820 1000+：$0.15136 2500+：$0.14994 |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1x1) |
|
74LVC1G99GT,115IC MF/CFG 1-CIR 4-IN 8-XSON |
17,615 |
1+：$0.19000 10+：$0.13100 25+：$0.11600 100+：$0.09860 250+：$0.09044 500+：$0.08548 1000+：$0.08142 2500+：$0.07835 |
|
Datasheet | 74LVC | 8-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
Gates and Inverters - Multi-Function, Configurable FAQ
Common questions about selecting, comparing and sourcing Gates and Inverters - Multi-Function, Configurable components through Winsun (HK) Electronics.
What should I check when selecting Gates and Inverters - Multi-Function, Configurable components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Gates and Inverters - Multi-Function, Configurable part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Gates and Inverters - Multi-Function, Configurable parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Gates and Inverters - Multi-Function, Configurable components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
