Gates and Inverters - Multi-Function, Configurable
Browse available Gates and Inverters - Multi-Function, Configurable part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLX1G97CMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
3,032 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
74F51SCXAND-OR-INVERT GATE |
17,500 | - |
|
Datasheet | 74F | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
74AUP1G58FW4-7IC GATE SGL GATE X2-DFN1010-6 |
5,000 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
|
|
NLX1G58AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
2,724 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
|
NLX1G57AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
3,525 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
|
NLX1G98AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
4,453 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
NLX1G57CMUTCGIC LOGIC SMD |
2,692 | - |
|
Datasheet | MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
74AUP1T97GM,115NEXPERIA 74AUP1T97GM - LOGIC CIR |
45,000 | - |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 2.3V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|
74F51PCAND-OR-INVERT GATE |
7,996 | - |
|
Datasheet | 74F | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
MC14069UBFL1INVERTER |
3,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NLX1G57BMX1TCGIC CONFIG MULTIPLE FUNCT 6ULLGA |
3,101 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
NLX1G97BMX1TCGIC CONFIG MULTIPLE FUNCT 6ULLGA |
2,428 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
74AUP1G98FW4-7IC GATE SGL GATE X2-DFN1010-6 |
5,000 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
|
74AUP1G97L6XIC GATE UNIV 2INPUT 6-MICROPAK |
1,840 | - |
|
Datasheet | 74AUP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|

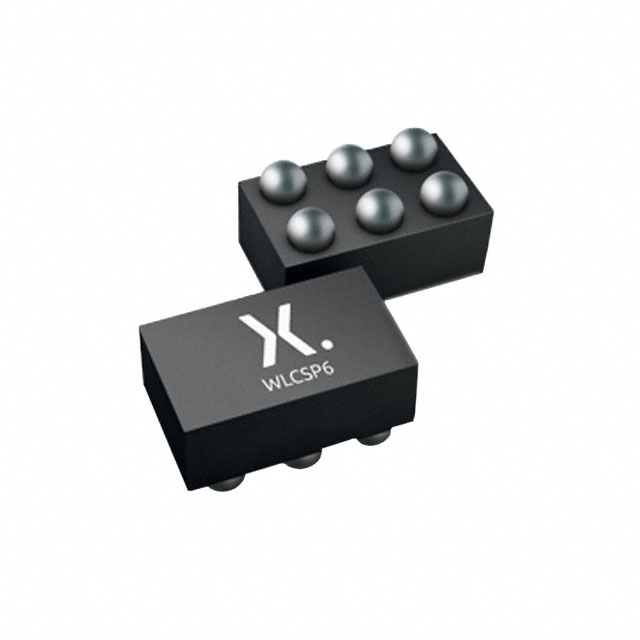

74AUP1G97UKAZIC GATE MULTIFUNCTION WLCSP6 |
4,917 | - |
|
Datasheet | 74AUP | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.65x0.44) |
|
74LVC1G98GF,132IC CONFIG MULTI FUNC GATE 6XSON |
2,063 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
|
74LVC1G97GF,132IC CONFIG MULTI FUNC GATE 6XSON |
2,566 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|

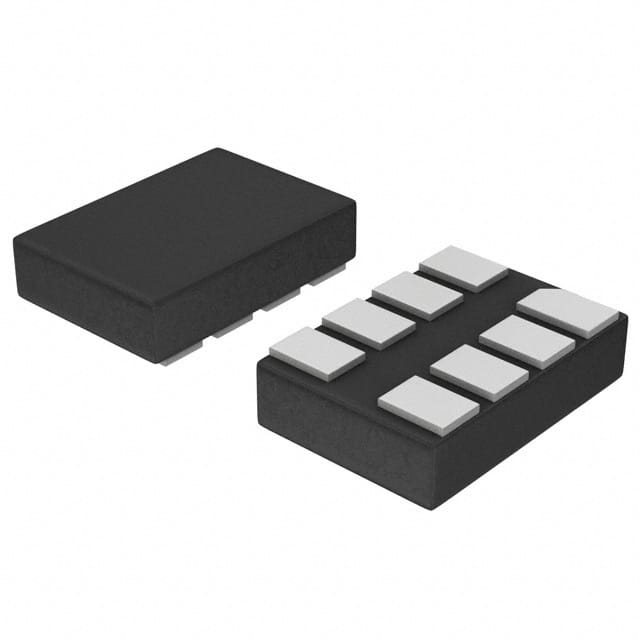

NLX1G99AMX1TCGIC MINIGATE MULTIFUNC 8ULLGA |
1,640 | - |
|
Datasheet | MiniGate™ | 8-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | Yes | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 8-ULLGA (1.95x1) |
|
|
SN72270NHEX INVERTER |
19,722 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
CD4019BPWIC QUAD AND/OR SLCT GATE 16TSSOP |
3,501 | - |
|
Datasheet | 4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
Gates and Inverters - Multi-Function, Configurable FAQ
Common questions about selecting, comparing and sourcing Gates and Inverters - Multi-Function, Configurable components through Winsun (HK) Electronics.
What should I check when selecting Gates and Inverters - Multi-Function, Configurable components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Gates and Inverters - Multi-Function, Configurable part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Gates and Inverters - Multi-Function, Configurable parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Gates and Inverters - Multi-Function, Configurable components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
