Gates and Inverters - Multi-Function, Configurable
Browse available Gates and Inverters - Multi-Function, Configurable part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SY100EL04ZG-TRIC GATE AND/NAND 2-INPUT 8-SOIC |
3,678 | - |
|
Datasheet | 100EL | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND/NAND Gate | 1 | 2 | No | Differential | - | 4.2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY100EL05ZGIC GATE AND/NAND DIFF 2INP 8SOIC |
3,467 | - |
|
Datasheet | 100EL | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 4.2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY100EL05ZG-TRIC GATE AND/NAND DIFF 2INP 8SOIC |
1,300 | - |
|
Datasheet | 100EL | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 4.2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY100EL07ZG-TRIC GATE XOR/XNOR 2-INPUT 8-SOIC |
3,101 | - |
|
Datasheet | 100EL | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | XOR/XNOR Gate | 1 | 2 | No | Differential | - | 4.2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EL01ZGIC GATE OR/NOR 4-INPUT 8-SOIC |
2,606 | - |
|
Datasheet | 10EL | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 4.75V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EL01ZG-TRIC GATE OR/NOR 4-INPUT 8-SOIC |
2,726 | - |
|
Datasheet | 10EL | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 4.75V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EL04ZGIC GATE AND/NAND 2-INPUT 8-SOIC |
4,815 | - |
|
Datasheet | 10EL | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | AND/NAND Gate | 1 | 2 | No | Differential | - | 4.75V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EL04ZG-TRIC GATE AND/NAND 2-INPUT 8-SOIC |
2,896 | - |
|
Datasheet | 10EL | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | AND/NAND Gate | 1 | 2 | No | Differential | - | 4.75V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EL07ZGIC GATE XOR/XNOR 2-INPUT 8-SOIC |
3,035 | - |
|
Datasheet | 10EL | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | XOR/XNOR Gate | 1 | 2 | No | Differential | - | 4.75V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EL07ZG-TRIC GATE XOR/XNOR 2-INPUT 8-SOIC |
1,487 | - |
|
Datasheet | 10EL | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | XOR/XNOR Gate | 1 | 2 | No | Differential | - | 4.75V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EP01VZGIC GATE OR/NOR 3.3/5V 4IN 8-SOIC |
1,333 | - |
|
Datasheet | 10EP | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EP01VZG-TRIC GATE OR/NOR 3.3/5V 4IN 8-SOIC |
1,201 | - |
|
Datasheet | 10EP | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
SY10EP05VKGIC GATE AND/NAND 2INP DIFF 8MSOP |
1,009 | - |
|
Datasheet | 10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
SY10EP05VKG-TRIC GATE AND/NAND 2INP DIFF 8MSOP |
4,440 | - |
|
Datasheet | 10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
SY10EP08VKGIC GATE XOR/XNOR 2INP DIFF 8MSOP |
2,174 | - |
|
Datasheet | 10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
SY10EP08VKG-TRIC GATE XOR/XNOR 2INP DIFF 8MSOP |
4,552 | - |
|
Datasheet | 10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
SY10EP08VZGIC GATE XOR/XNOR 2INP DIFF 8SOIC |
3,240 | - |
|
Datasheet | 10EP | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
SY10EP08VZG-TRIC GATE XOR/XNOR 2INP DIFF 8SOIC |
1,542 | - |
|
Datasheet | 10EP | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
SY55851AUKG-TRIC GATE UNIV 3GHZ 50 OHM 10-MSOP |
4,993 | - |
|
Datasheet | SY55 | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 10-MSOP |
|

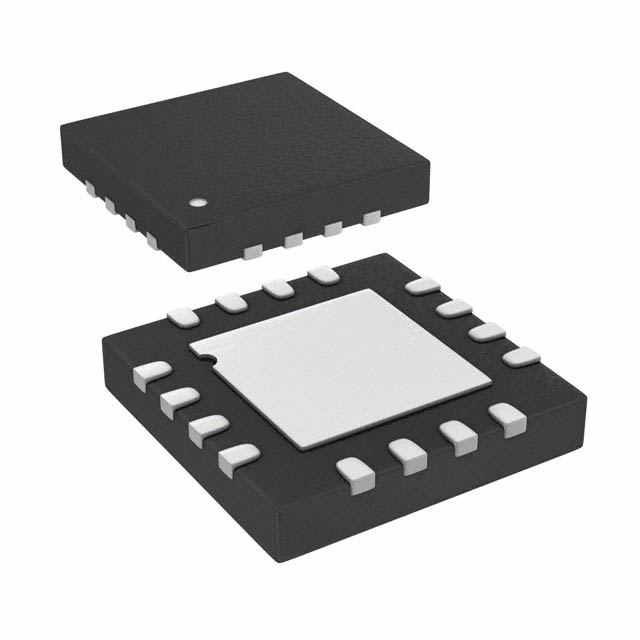

SY58051UMG-TRIC GATE CML UNIV I/O TERM 16-MLF |
3,338 | - |
|
Datasheet | SY55 | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-MLF® (3x3) |
Gates and Inverters - Multi-Function, Configurable FAQ
Common questions about selecting, comparing and sourcing Gates and Inverters - Multi-Function, Configurable components through Winsun (HK) Electronics.
What should I check when selecting Gates and Inverters - Multi-Function, Configurable components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Gates and Inverters - Multi-Function, Configurable part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Gates and Inverters - Multi-Function, Configurable parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Gates and Inverters - Multi-Function, Configurable components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
