Gates and Inverters
Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

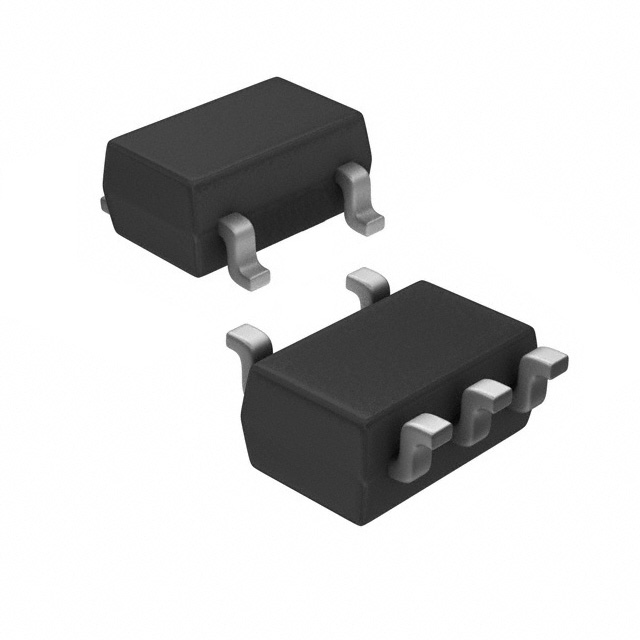

TC4S584F,LFIC INVERT SCHMITT 1CH 1-INP SMV |
45,070 | - |
|
Datasheet | TC4S | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 3V ~ 18V | 4 µA | 3.4mA, 3.4mA | 1.1V ~ 3.3V | 3.35V ~ 10.6V | 120ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
TC7SH04FU,LJ(CTIC INVERTER 1CH 1-INP 5SSOP |
39,724 | - |
|
Datasheet | TC7SH | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
|
TC7SH08FU,LJ(CTIC GATE AND 1CH 2-INP 5SSOP |
80,070 | - |
|
Datasheet | TC7SH | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
|
TC7SH14FU,LJ(CTIC INVERT SCHMITT 1CH 1INP 5SSOP |
54,529 | - |
|
Datasheet | TC7SH | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
|
TC7SZ14FU,LJ(CTIC INVERT SCHMITT 1CH 1INP 5SSOP |
49,929 | - |
|
Datasheet | TC7SZ | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | 0.2V ~ 1.2V | 1.4V ~ 3.6V | 5.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
|
TC7SET08FU,LJ(CTIC GATE AND 1CH 2-INP 5SSOP |
32,783 | - |
|
Datasheet | TC7SET | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
|
TC7SZ08FU,LJ(CTIC GATE AND 1CH 2-INP 5SSOP |
26,271 | - |
|
Datasheet | TC7SZ | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.8V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
|
TC7SH32FU,LJ(CTIC GATE OR 1CH 2-INP 5SSOP |
24,114 | - |
|
Datasheet | TC7SH | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-SSOP |
|
|
TC7SH86FU,LJ(CTIC GATE XOR 1CH 2-INP 5SSOP |
6,723 | - |
|
Datasheet | TC7SH | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 8.8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
|
TC7SH00FU,LJ(CTIC GATE NAND 1CH 2-INP 5SSOP |
24,295 | - |
|
Datasheet | TC7SH | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
