| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC7S14FU,LFIC INVERT SCHMITT 1CH 1INP 5SSOP |
35,586 | - |
|
Datasheet | TC7S | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.3V ~ 1.5V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|

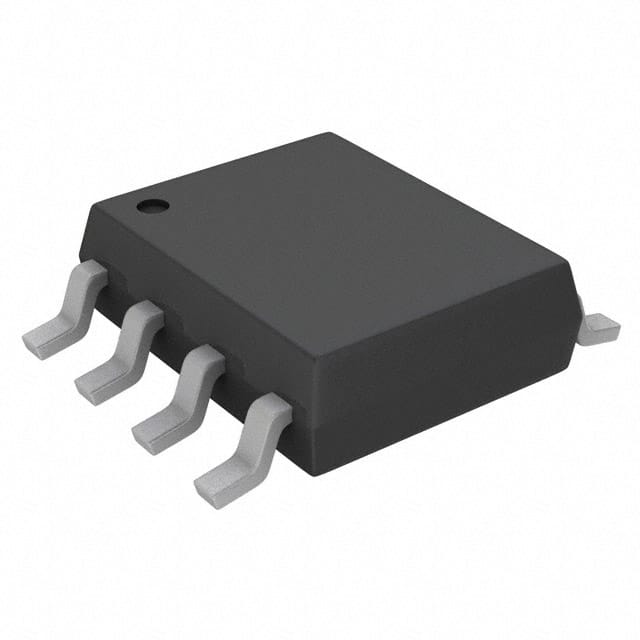

TC7WH08FU,LJ(CTIC GATE AND 2CH 2-INP 8SSOP |
35,852 | - |
|
Datasheet | TC7WH | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | - | - | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
|
TC7WH32FU,LJ(CTIC GATE OR 2CH 2-INP 8SSOP |
16,730 | - |
|
Datasheet | TC7WH | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | OR Gate | 2 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | - | - | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
|
TC7WH14FU,LJ(CTIC INVERT SCHMITT 3CH 3INP 8SSOP |
13,370 | - |
|
Datasheet | TC7WH | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
|
TC7WH04FU,LJ(CTIC INVERTER 3CH 3-INP 8SSOP |
11,320 | - |
|
Datasheet | TC7WH | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
TC7WZ00FK,LJ(CTIC GATE NAND 2CH 2-INP 8SSOP |
11,208 | - |
|
Datasheet | TC7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
|
TC7WH14FK,LJ(CTIC INVERTER 3CH 3-INP 8SSOP |
11,172 | - |
|
Datasheet | TC7WH | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
TC7WZ32FK,LJ(CTIC GATE OR 2CH 2-INP 8SSOP |
8,887 | - |
|
Datasheet | 7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
TC7WZ08FK,LJ(CTIC GATE AND 2CH 2-INP 8SSOP |
3,136 | - |
|
Datasheet | 7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
TC7WH02FU,LJ(CTIC GATE NOR 2CH 2-INP SM8 |
2,104 | - |
|
Datasheet | TC7WH | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | NOR Gate | 2 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | - | - | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SM8 |
