Sensor Matched Magnets
Browse available Sensor Matched Magnets part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Use With/Related Products | Housing Material | Material - Magnet | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

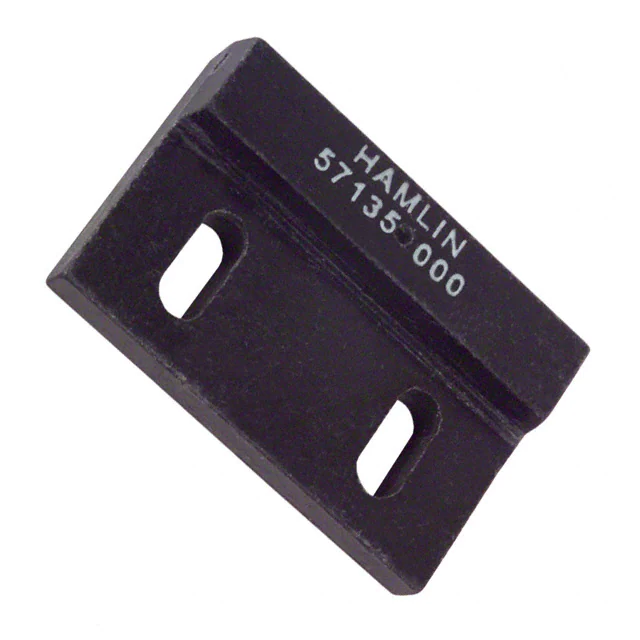

57135-000MAGNET 1.125"L X 0.259"W PLASTIC |
3,746 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59135 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|

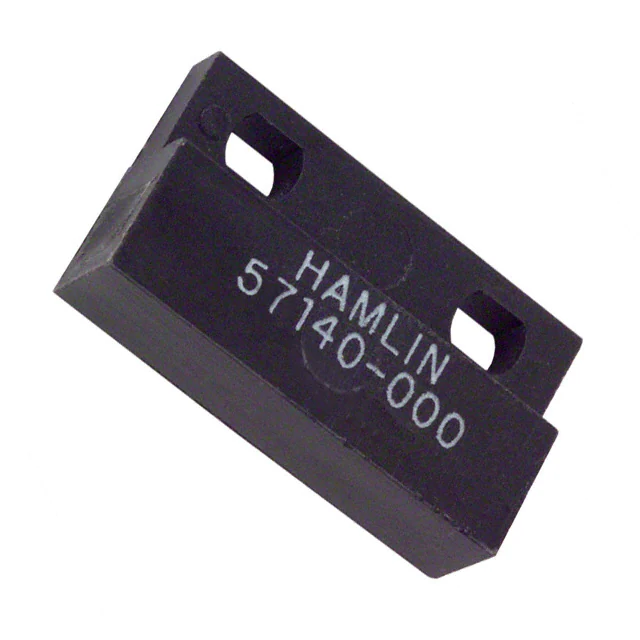

57140-000MAGNET 0.906"L X 0.236"W PLASTIC |
3,620 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59140 | Plastic | Alnico 5 (AlNiCo) | 0.906" L x 0.236" W x 0.551" H (23.0mm x 6.00mm x 14.0mm) | 105°C (TA) |
|
57145-000MAGNET 1.125"L X 0.259"W PLASTIC |
5,673 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59145 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|
|
57150-000MAGNET 1.125"L X 0.259"W PLASTIC |
2,924 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | 59150 | Plastic | Alnico 5 (AlNiCo) | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) |
|
M04MAGNET 0.910"L X 0.55"W PBT |
365 | - |
|
Datasheet | M04 | Flange Mount | Bulk | Active | MK04 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|

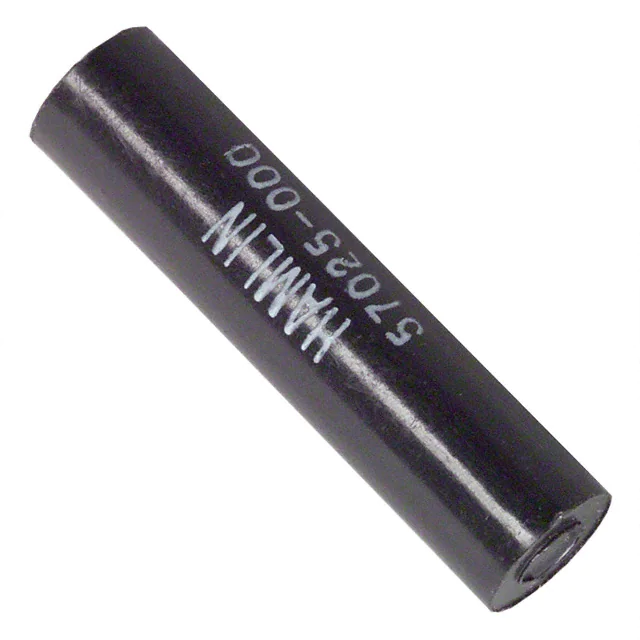

57025-000MAGNET 0.245"DIA X 1"L PLASTIC |
1,422 | - |
|
Datasheet | - | Cylinder | Bulk | Active | 59025 | Plastic | Alnico 5 (AlNiCo) | 0.245" Dia x 1.00" L (6.22mm x 25.4mm) | 105°C (TA) |
|
SI-MAGB2MMCODED MAG USE W/SI-MAGB2SM |
213 | - |
|
Datasheet | SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 1.693" L x 1.024" W x 0.512" H (43.0mm x 26.0mm x 13.0mm) | -25°C ~ 70°C |
|

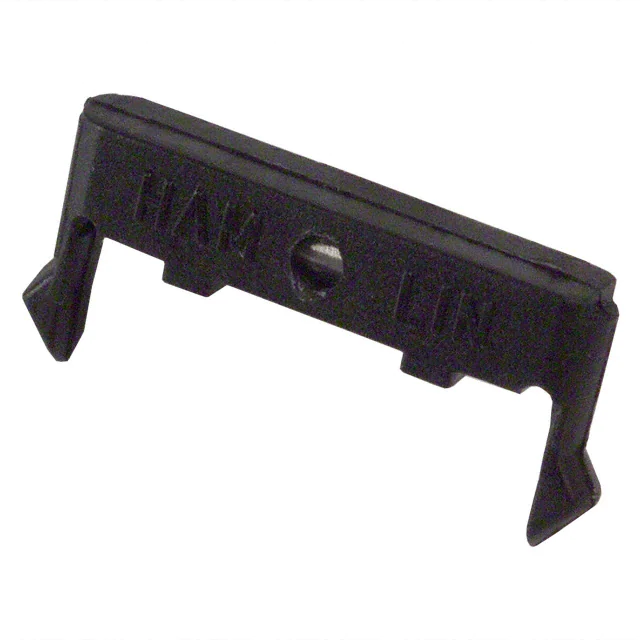

57045-000MAGNET 0.700"L X 0.130"W PLASTIC |
940 | - |
|
Datasheet | - | PCB Module | Box | Active | 59045 | Plastic | Alnico 5 (AlNiCo) | 0.700" L x 0.130" W x 0.170" H (17.8mm x 3.30mm x 4.32mm) | 105°C (TA) |
|

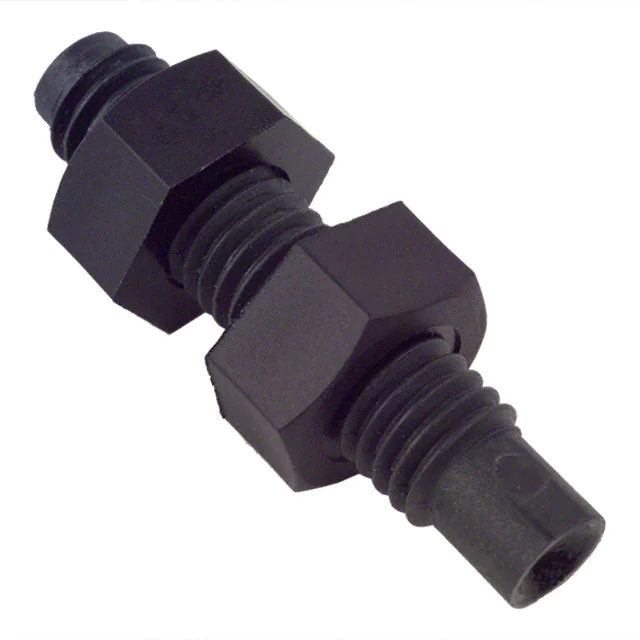

57065-000MAGNET 0.219"DIA X 1.5"L PLASTIC |
739 | - |
|
Datasheet | - | Cylinder, Threaded | Bulk | Active | 59065 | Plastic | Alnico 5 (AlNiCo) | 0.219" Dia x 1.50" L (5.56mm x 38.0mm) | 105°C (TA) |
|
|
57070-000MAGNET 0.219"DIA X 1.5"L PLASTIC |
697 | - |
|
Datasheet | - | Cylinder, Threaded | Bulk | Active | 59070 | Plastic | Alnico 5 (AlNiCo) | 0.219" Dia x 1.50" L (5.56mm x 38.0mm) | 105°C (TA) |
|
S1368BLACK RECTANGULAR ENCAPSULATED U |
839 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | PSM | Nylon | - | 1.181" L x 0.787" W x 0.276" H (30.00mm x 20.00mm x 7.00mm) | - |
|
57142-00057142-000 ACTUATOR |
502 | - |
|
Datasheet | - | Flange Mount | Box | Active | 59142 | Plastic | Nd-Fe-B | 0.906" L x 0.236" W x 0.551" H (23.0mm x 6.00mm x 14.0mm) | 105°C (TA) |
|
M11/M8MAGNET 0.315"DIA X 1.5"L PLASTIC |
630 | - |
|
Datasheet | M11 | Cylinder, Threaded | Bulk | Active | MK11/M8 | Plastic | Alnico 5 (AlNiCo) | 0.315" Dia x 1.50" L (8.00mm x 38.0mm) | 70°C (TA) |
|
57022-000MAGNET 0.228"DIA X 1"L PLASTIC |
255 | - |
|
Datasheet | - | Cylinder | Box | Active | 59022 | Plastic | Alnico 5 (AlNiCo) | 0.228" Dia x 1.00" L (5.79mm x 25.4mm) | 105°C (TA) |
|

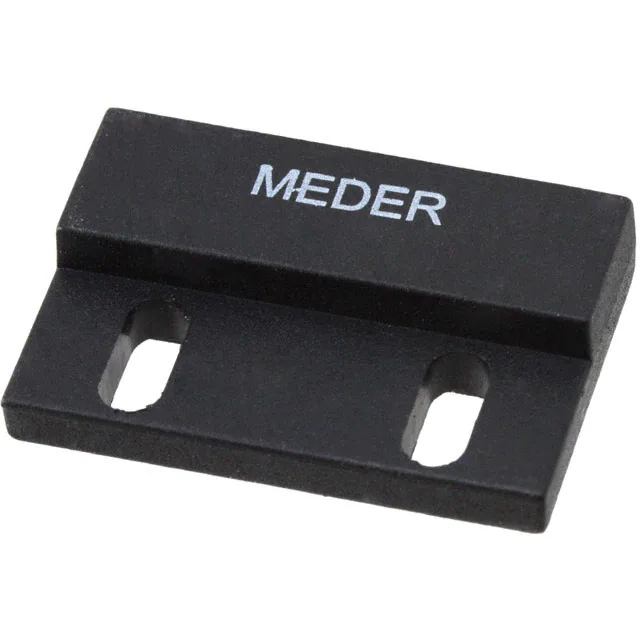

M21P/1MAGNET 1.122"L X 0.246"W PBT |
288 | - |
|
Datasheet | M21 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|
MMPSM MAGNET BLUEBLUE RH RECTANGULAR ENCAPSULATED |
506 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | MMPSM | Nylon | - | 0.787" L x 0.551" W x 0.236" H (20.00mm x 14.00mm x 6.00mm) | - |
|

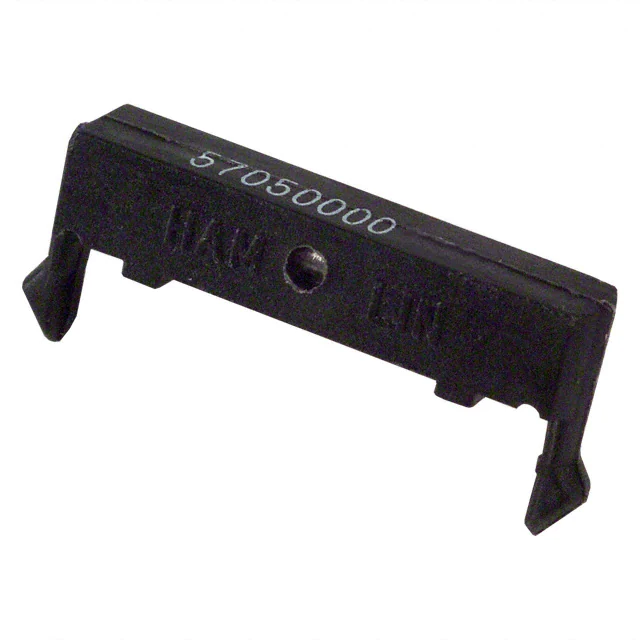

57050-000MAGNET 0.9"L X 0.180"W PLASTIC |
314 | - |
|
Datasheet | - | PCB Module | Bulk | Active | 59050 | Plastic | Alnico 5 (AlNiCo) | 0.900" L x 0.180" W x 0.265" H (22.9mm x 4.57mm x 6.73mm) | 105°C (TA) |
|
57040-000MAGNET 0.42"DIA X 1.22"L PLASTIC |
395 | - |
|
Datasheet | - | Press Fit | Box | Active | 59040 | Plastic | - | 0.420" Dia x 1.22" L (10.7mm x 31.0mm) | 105°C (TA) |
|
57020-000MAGNET 0.201"DIA X 0.6"L PLASTIC |
125 | - |
|
Datasheet | - | Cylinder | Bulk | Active | 59020 | Plastic | Alnico 5 (AlNiCo) | 0.201" Dia x 0.60" L (5.10mm x 15.2mm) | 105°C (TA) |
|
CTI302MMAGNET |
106 | - |
|
Datasheet | - | Cylinder, Threaded - M8 | Bulk | Active | S1736 | Nickel Plated Brass | - | - | 85°C (TA) |
Sensor Matched Magnets FAQ
Common questions about selecting, comparing and sourcing Sensor Matched Magnets components through Winsun (HK) Electronics.
What should I check when selecting Sensor Matched Magnets components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Sensor Matched Magnets part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Sensor Matched Magnets parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Sensor Matched Magnets components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
