Sensor Matched Magnets
Use the filters and product table below to compare Sensor Matched Magnets components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Use With/Related Products | Housing Material | Material - Magnet | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M04MAGNET 0.910"L X 0.55"W PBT |
365 | - |
|
Datasheet | M04 | Flange Mount | Bulk | Active | MK04 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|
M11/M8MAGNET 0.315"DIA X 1.5"L PLASTIC |
630 | - |
|
Datasheet | M11 | Cylinder, Threaded | Bulk | Active | MK11/M8 | Plastic | Alnico 5 (AlNiCo) | 0.315" Dia x 1.50" L (8.00mm x 38.0mm) | 70°C (TA) |
|
M21P/1MAGNET 1.122"L X 0.246"W PBT |
288 | - |
|
Datasheet | M21 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|
M13MAGNET 0.906"L X 0.547"W PBT |
113 | - |
|
Datasheet | M13 | Flange Mount | Bulk | Active | MK13 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.906" L x 0.547" W x 0.232" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|
M05MAGNET 0.910"L X 0.55"W PBT |
101 | - |
|
Datasheet | M05 | Flange Mount | Bulk | Active | MK05 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) |
|

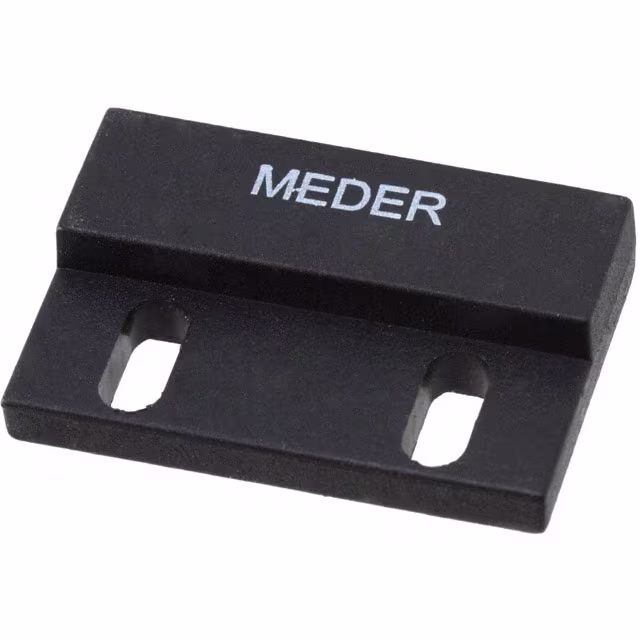

M21P/2MAGNET 1.122"L X 0.246"W PBT |
4,070 | - |
|
Datasheet | M22 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|
M11/M5MAGNET 0.980"DIA X 0.20"L SS |
3,529 | - |
|
Datasheet | M11 | Cylinder, Threaded | Bulk | Active | MK11 | Stainless Steel | Alnico (AlNiCo) | 0.980" Dia x 0.20" L (25.0mm x 5.00mm) | 70°C (TA) |
|
RM-01-020TARGET MAGNET |
3,619 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Magnetic Reed Sensors | - | Nd-Fe-B | 0.250" Dia x 0.25" L (6.35mm x 6.4mm) | 150°C (TA) |
|
|
RM-01-071ANGULAR POSITION MAGNET |
2,209 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Magnetic Reed Sensors | - | Nd-Fe-B | 0.500" Dia x 0.13" L (12.70mm x 3.2mm) | - |
|
|
PM-SCS50FX075S-01022NTARGET MAGNET |
4,371 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Magnetic Reed Sensors | Stainless Steel | NEO 35 | 0.750" Dia x 1.25" L (19.05mm x 31.8mm) | 150°C (TA) |
Sensor Matched Magnets FAQ
Common questions about filtering, comparing and sourcing Sensor Matched Magnets components.
How can I narrow the Sensor Matched Magnets selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Sensor Matched Magnets part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
