Gyroscopes
Browse available Gyroscopes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Axis | Range °/s | Sensitivity (LSB/(°/s)) | Sensitivity (mV/°/s) | Bandwidth | Output Type | Voltage - Supply | Current - Supply | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
I3G4250DTRMEMS MOTION SENSOR 3AXIS 16LGA |
368 |
1+：$10.22000 5+：$9.24200 10+：$8.87700 25+：$8.44120 50+：$8.14320 100+：$7.86990 500+：$7.31958 1000+：$7.11443 |
|
Datasheet | - | 16-TFLGA | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±245, 500, 2000 | 8.75 ~ 70 | - | - | I2C, SPI | 2.4V ~ 3.6V | 6.1 mA | Adjustable Bandwidth, Selectable Scale, Temperature Sensor | -40°C ~ 85°C | - | - |
|
IAM-20380HTSENSOR ACCELEROMETER |
3,825 |
1+：$10.71000 5+：$9.69800 10+：$9.32200 25+：$8.87280 50+：$8.56560 100+：$8.28400 500+：$7.92540 |
|
Datasheet | - | 16-WFLGA Module | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 5Hz ~ 250Hz | I2C, SPI | 1.71V ~ 3.6V | 2.6 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|
IAM-20380SENSOR GYROSCOPE |
17,229 |
1+：$15.49000 5+：$14.08800 10+：$13.56700 25+：$12.94360 50+：$12.51720 100+：$12.12620 500+：$11.96460 |
|
Datasheet | - | 16-WFLGA Module | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 27kHz | I2C, SPI | 1.71V ~ 3.6V | - | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|
|
A3G4250DTRIC MEMS MOTION SENSOR 16-LGA |
900 |
1+：$18.76000 5+：$17.08200 10+：$16.45600 25+：$15.70960 50+：$15.19860 100+：$14.73000 500+：$13.78570 |
|
Datasheet | - | 16-TFLGA | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±245 | 114 | - | 4.45Hz ~ 483Hz | I2C, SPI | 2.4V ~ 3.6V | 6.1 mA | Adjustable Bandwidth, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|
SCR2100-D08-05GYROSCOPES |
1,094 |
1+：$58.25000 5+：$53.77000 10+：$52.10300 25+：$51.61320 |
|
Datasheet | - | 24-SMD Module | Tape & Reel (TR) | Active | Digital | X (Pitch) | ±125 | 50 | - | 1.15kHz | SPI | 3V ~ 3.6V | 23.9 mA | Temperature Sensor | -40°C ~ 125°C | - | - |
|
ADXRS623BBGZ-RLIC GYROSCOPE YAW RATE 32CBGA |
650 |
1+：$74.68000 5+：$69.12400 10+：$67.71800 |
|
Datasheet | - | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±150 | - | 12.5 | 1Hz ~ 3kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS624BBGZ-RLIC GYROSCOPE YAW RATE 32CBGA |
550 |
1+：$74.68000 5+：$69.12400 10+：$67.71800 |
|
Datasheet | - | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±50 | - | 25 | 1Hz ~ 1kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS620BBGZ-RLIC GYROSCOPE YAW RATE 32-CBGA |
495 |
1+：$76.72000 5+：$71.03200 10+：$69.73700 |
|
Datasheet | - | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±300 | - | 6 | 0.01Hz ~ 2.5kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS642BBGZ-RLIC GYROSCOPE YAW RATE 32CBGA |
481 |
1+：$102.25000 5+：$95.35000 |
|
Datasheet | - | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±250 | - | 7 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADXRS450BEYZSENS GYRO 300DEG/S DGTL 14CLCC |
0 | - |
|
Datasheet | - | 14-CLCC | Tube | Last Time Buy | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±300 | 80 | - | 80Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADXRS453BRGZIC GYROSCOPE ANGULAR 16SOIC |
0 | - |
|
Datasheet | - | 16-SOIC (0.307", 7.80mm Width) | Tube | Active | Digital | Z (Yaw) | ±300 | 80 | - | 77.5Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Compensated | -40°C ~ 105°C | - | - |
|
|
ADXRS649BBGZIC GYROSCOPE YAW RATE 32CBGA |
1,068 |
1+：$139.40000 6+：$128.89667 12+：$125.42167 30+：$121.26200 54+：$118.83074 |
|
Datasheet | - | 32-BFCBGA | Tray | Active | Analog | Z (Yaw) | ±20000 | - | 0.1 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS453BEYZIC GYROSCOPE ANGULAR CLCC |
0 | - |
|
Datasheet | - | 14-CLCC | Tube | Last Time Buy | Digital | X (Pitch), Y (Roll) | ±300 | 80 | - | 77.5Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Compensated | -40°C ~ 105°C | - | - |
|
ADIS16265BCCZIC SENSOR GYRO PROGR 10MV 20LGA |
1,215 | - |
|
Datasheet | - | 20-BFLGA | Tray | Active | Digital | Z (Yaw) | ±80, 160, 320 | 13 ~ 54 | - | 50Hz ~ 330Hz | SPI | 4.75V ~ 5.25V | 41 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 105°C | - | - |
|

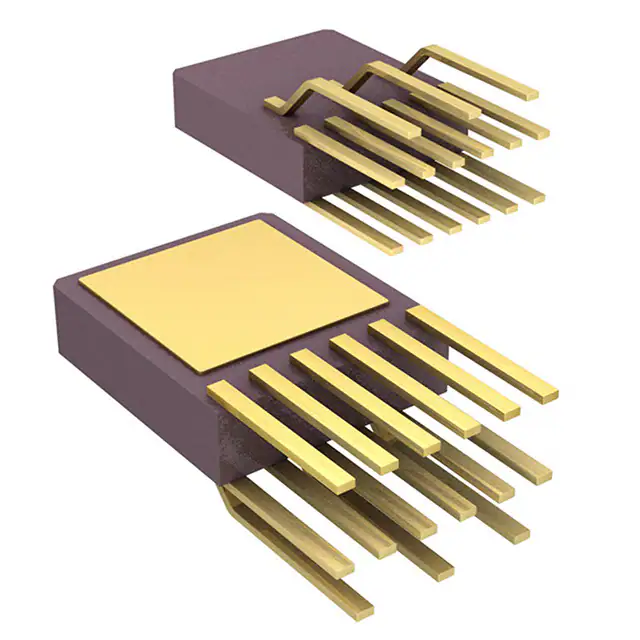

ADXRS645HDYZIC GYROSCOPE YAW RATE 32CBGA |
35 |
1+：$0.00000 5+：$0.00000 |
|
Datasheet | - | 15-TRIIP | Tray | Active | Analog | X (Pitch) or Y (Roll) | ±2000 | - | 1 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 175°C | - | - |
.jpg "ADXRS290BCEZ")
|
ADXRS290BCEZIC GYROSCOPE YAW RATE 18LGA |
247 |
1+：$27.43000 5+：$25.11600 10+：$24.25200 38+：$22.78632 76+：$22.11605 114+：$21.75009 |
|
Datasheet | - | 18-LFLGA | Tray | Active | Digital | X (Pitch), Y (Roll) | ±100 | 200 | - | 20Hz ~ 480Hz | SPI | 2.7V ~ 5V | 7.8 mA | Adjustable Bandwidth, Sleep Mode | -25°C ~ 85°C | - | - |
|
|
ADXRS623BBGZIC GYROSCOPE YAW RATE 32CBGA |
54 |
1+：$74.68000 5+：$69.12400 20+：$65.15450 40+：$63.41125 60+：$62.45883 100+：$61.32490 |
|
Datasheet | - | 32-BFCBGA | Tray | Active | Analog | Z (Yaw) | ±150 | - | 12.5 | 1Hz ~ 3kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS620BBGZIC GYROSCOPE YAW RATE 32-CBGA |
47 |
1+：$76.72000 5+：$71.03200 20+：$66.96800 40+：$65.18350 60+：$64.20850 100+：$63.04760 |
|
Datasheet | - | 32-BFCBGA | Bulk | Active | Analog | Z (Yaw) | ±300 | - | 6 | 0.01Hz ~ 2.5kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS642BBGZIC GYROSCOPE YAW RATE 32CBGA |
18 |
1+：$102.25000 5+：$94.95600 20+：$89.74150 40+：$87.45125 60+：$86.19983 100+：$84.70970 |
|
Datasheet | - | 32-BFCBGA | Tube | Active | Analog | Z (Yaw) | ±250 | - | 7 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS646BBGZIC GYROSCOPE YAW RATE 32CBGA |
0 |
1+：$146.48000 5+：$136.53000 20+：$129.41400 40+：$126.28800 60+：$124.57983 |
|
Datasheet | - | 32-BFCBGA | Bulk | Active | Analog | Z (Yaw) | ±250 | - | 9 | 1kHz | Analog Voltage | 5.75V ~ 6.25V | 4 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
Gyroscopes FAQ
Common questions about selecting, comparing and sourcing Gyroscopes components through Winsun (HK) Electronics.
What should I check when selecting Gyroscopes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Gyroscopes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Gyroscopes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Gyroscopes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
