Photodiodes
Browse available Photodiodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD100MC0MP1SENSOR PHOTODIODE 820NM 2SMD |
2,412 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 820nm | - | 400nm ~ 1100nm | - | - | 10ns | 20 V | 10nA | - | 40° | -30°C ~ 85°C | - | - | Surface Mount |
|
VEMD5510C-GS15SENSOR PHOTODIODE 550NM 4SMD |
4,655 | - |
|
Datasheet | - | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Last Time Buy | 550nm | - | 440nm ~ 700nm | PIN | - | 70ns | 20 V | 200pA | 7.5mm² | 130° | -40°C ~ 100°C | - | - | Surface Mount |
|
VEMD5510FX01-GS15SENSOR PHOTODIODE 540NM 4SMD |
3,039 | - |
|
Datasheet | - | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 540nm | - | 420nm ~ 620nm | PIN | - | - | 10 V | 1nA | 7.5mm² | 130° | -40°C ~ 110°C (TA) | - | - | Surface Mount |
|
VTP1232HSENSOR PHOTODIODE 920NM RADIAL |
4,233 | - |
|
Datasheet | - | Radial | Bulk | Active | 920nm | - | 400nm ~ 1100nm | - | 0.60 A/W @ 920nm | - | - | 25nA | 2.33mm² | - | -40°C ~ 100°C | - | - | Through Hole |
|
|
NJL6407R-TE1SENSOR PHOTODIODE 800NM 2SMD |
3,047 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 800nm | Infrared(NIR)/Blue | - | - | 0.47 A/W @ 780nm, 0.42 A/W @ 650nm | 9ns | 35 V | 100pA | 2.16mm² | - | -30°C ~ 80°C | - | - | Surface Mount |
|
|
PD60-48C/TR8SENSOR PHOTODIODE 940NM 2SMD |
1,538 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 940nm | Infrared (NIR) | 420nm ~ 1100nm | PIN | - | 50ns | 32 V | 10nA | - | 125° | -25°C ~ 85°C | - | - | Surface Mount |
|
APT2012PD1CSENSOR PHOTODIODE 940NM 2SMD |
1,550 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | 940nm | Infrared (NIR) | 420nm ~ 1120nm | - | - | 6ns | 170 V | 10nA (Max) | - | 160° | -40°C ~ 85°C | - | - | Surface Mount |
|
SFH 2701SENSOR PHOTODIODE 820NM 2SMD |
2,134 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | 820nm | - | 400nm ~ 1050nm | PIN | 0.5 A/W @ 780nm | 2ns | 15 V | 50pA | 0.36mm² | 120° | -40°C ~ 85°C | - | - | Surface Mount |
|
|
SFH 2504 AN23SENSOR PHOTODIODE 900NM RADIAL |
1,021 | - |
|
Datasheet | - | Radial, 5mm Dia (T 1 3/4) | Tape & Box (TB) | Active | 900nm | - | 750nm ~ 1100nm | PIN | - | 5ns | 50 V | 100pA | - | 30° | -40°C ~ 85°C | - | - | Through Hole |
|
|
PDB-C154SMFSENSOR PHOTODIODE 660NM 1210 |
1,702 | - |
|
Datasheet | - | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | 660nm | Red | 400nm ~ 1100nm | PIN | - | 10ns | 32 V | 2nA | 2.10mm² | 120° | -40°C ~ 80°C | - | - | Surface Mount |
|
PDB-C157SENSOR PHOTODIODE 660NM RADIAL |
4,450 | - |
|
Datasheet | - | Radial | Tray | Active | 660nm | Blue | 400nm ~ 1100nm | PIN | - | 50ns | 50 V | 2nA | 9mm² | 120° | -40°C ~ 80°C | - | - | Through Hole |
|
BP 104 S-ZSENSOR PHOTODIODE 850NM 2SMD |
4,142 | - |
|
Datasheet | - | 2-SMD, Z-Bend | Tape & Reel (TR) | Obsolete | 850nm | - | 400nm ~ 1100nm | PIN | - | 20ns | 20 V | 2nA | 4.84mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
NJL6195R-W-TE1SENSOR PHOTODIODE 890NM 2SMD |
2,363 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 890nm | - | - | - | 0.55 A/W @ 850nm | 25ns, 42ns | 35 V | 1nA | 8.79mm² | - | -30°C ~ 85°C | - | - | Surface Mount |
|
PD70-01B/TR10SENSOR PHOTODIODE 940NM 2SMD |
2,390 | - |
|
Datasheet | - | 2-SMD, Z-Bend | Tape & Reel (TR) | Active | 940nm | - | 730nm ~ 1100nm | PIN | - | 50ns | 32 V | 5nA | - | - | -25°C ~ 85°C | - | - | Surface Mount |
|
PD42-21C/TR8SENSOR PHOTODIODE 940NM 2SMD |
3,862 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 940nm | - | 400nm ~ 1100nm | PIN | - | 6ns | 32 V | 10nA | - | - | -25°C ~ 85°C | - | - | Surface Mount |
|
|
PD70-01B/S57/TR7SENSOR PHOTODIODE 940NM 2SMD GW |
3,138 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | 940nm | - | 730nm ~ 1100nm | PIN | - | - | 32 V | 5nA | - | - | -25°C ~ 85°C | - | - | Surface Mount |
|
PDI-C172SMFSENSOR PHOTODIODE 900NM 2SMD |
3,104 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 900nm | Blue | 840nm ~ 1050nm | PIN | - | 20ns | 60 V | 4nA | 7.67mm² | 130° | -40°C ~ 80°C | - | - | Surface Mount |
|

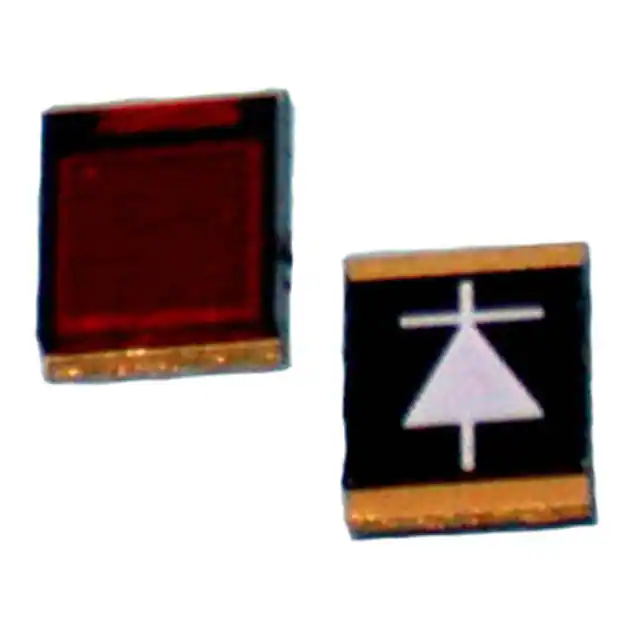

PDV-C173SMSENSOR PHOTODIODE 900NM 2SMD |
1,108 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 900nm | Blue | 600nm ~ 1050nm | PIN | - | 20ns | 60 V | 4nA | 7.67mm² | 130° | -40°C ~ 80°C | - | - | Surface Mount |
|
NJL6401R-3-TE1SENSOR PHOTODIODE 800NM 2SMD |
3,230 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 800nm | Infrared(NIR)/Blue | - | PIN | 0.47 A/W @ 780nm, 0.42 A/W @ 650nm | 2ns | 35 V | 100pA | 0.49mm² | - | -30°C ~ 85°C | - | - | Surface Mount |
|
NJL6402R-2-TE1SENSOR PHOTODIODE 800NM 2SMD |
3,824 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 800nm | Infrared(NIR)/Blue | - | PIN | 0.47 A/W @ 780nm, 0.42 A/W @ 650nm | 2ns | 35 V | 100pA | 1mm² | - | -30°C ~ 85°C | - | - | Surface Mount |
Photodiodes FAQ
Common questions about selecting, comparing and sourcing Photodiodes components through Winsun (HK) Electronics.
What should I check when selecting Photodiodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Photodiodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Photodiodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Photodiodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
