Photodiodes
Browse available Photodiodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLSD-71N200SENSOR PHOTODIODE 940NM BOX WIRE |
4,822 | - |
|
Datasheet | - | Box with Wire Leads | Bulk | Active | 940nm | - | 400nm ~ 1100nm | - | 0.55 A/W @ 940nm | - | 20 V | 3.3µA | - | 120° | -40°C ~ 105°C | - | - | Free Hanging |
|
OPR5915SENSOR PHOTODIODE 880NM |
3,925 | - |
|
Datasheet | - | - | Tube | Obsolete | 880nm | - | 400nm ~ 1100nm | PIN | 0.45 A/W @ 890nm | - | 35 V | 30nA | 7.8mm² | - | -55°C ~ 125°C | - | - | Surface Mount |
|
|
OP910SENSOR PHOTODIODE 885NM TO46 |
4,159 | - |
|
Datasheet | - | - | Bulk | Obsolete | 885nm | - | 600nm ~ 1100nm | PIN | - | 10ns | 60 V | 1nA | - | 24° | -65°C ~ 125°C | - | - | Through Hole |
|
|
OP910WSENSOR PHOTODIODE 935NM TO46 |
4,022 | - |
|
Datasheet | - | - | Bulk | Obsolete | 935nm | - | 600nm ~ 1100nm | PIN | - | 10ns | 100 V | 1nA | - | 80° | -65°C ~ 125°C | - | - | Through Hole |
|
EPC330-CSP32-001SENSOR PHOTODIODE 850NM 32XFBGA |
2,632 | - |
|
Datasheet | - | 32-XFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | 850nm | Infrared (NIR)/Red | 400nm ~ 1030nm | - | 0.6 A/W @ 850nm | 300ns | 20 V | 640pA | 6.84mm² | 150° | -40°C ~ 85°C | - | - | Surface Mount |
|
MLX90255KWB-BAM-000-TRSENSOR PHOTODIODE 880NM 5SIP MOD |
4,095 | - |
|
Datasheet | - | 5-SIP Module | Tray | Obsolete | 880nm | - | 400nm ~ 1000nm | - | - | - | - | - | 200µm H x 66.0µm W | - | -40°C ~ 125°C | - | - | Through Hole |
|
|
PDU-V102SENSOR PHOTODIODE TO46-2 |
3,580 | - |
|
Datasheet | - | TO-46-2 Lens Top Metal Can | Tray | Obsolete | - | - | 190nm ~ 1100nm | PIN | 0.18 A/W @ 254nm | 400ns | 75 V | 1pA | 0.87mm² | 72° | -40°C ~ 125°C | - | - | Through Hole |
|
|
OP916SENSOR PHOTODIODE COAXIAL |
4,615 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
S-10VLSENSOR PHOTODIODE 970NM PVC WIRE |
3,335 | - |
|
Datasheet | Solderable Chip | Chip with 30 Gauge PVC Wire | Bulk | Active | 970nm | - | - | Planar Diffusion | 0.65 A/W @ 970nm | - | - | - | 9.6mm² | - | - | - | - | Free Hanging |
|

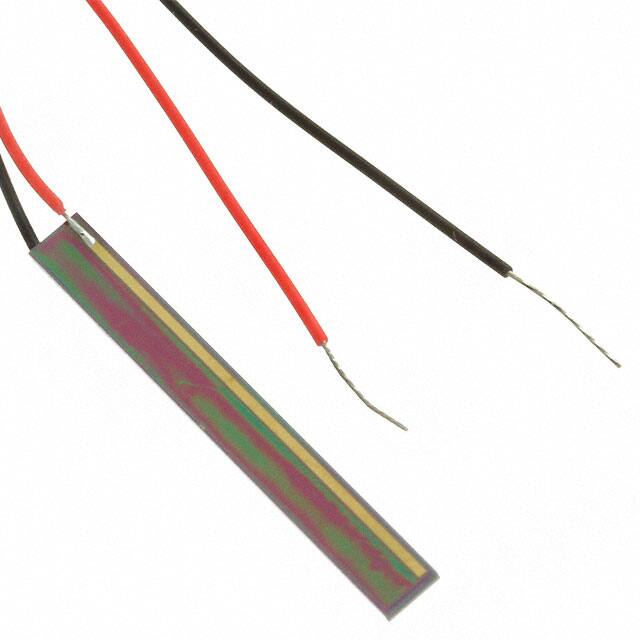

SLSD-71N400SENSOR PHOTODIODE 930NM RECT |
1,832 | - |
|
Datasheet | - | Rectangular, Wire Leads | Bulk | Active | 930nm | - | 400nm ~ 1100nm | - | - | - | 20 V | 5µA | - | 120° | -40°C ~ 150°C | - | - | Free Hanging |
|
PDB-C169SENSOR PHOTODIODE 950NM RADIAL |
2,154 | - |
|
Datasheet | - | Radial | Bulk | Active | 950nm | - | 350nm ~ 1100nm | PIN | - | 50ns | 200 V | 5nA | 9.04mm² | 120° | -40°C ~ 80°C | - | - | Through Hole |
|
|
0008-3111-011SENSOR PHOTODIOD 900-1700NM TO46 |
4,274 | - |
|
Datasheet | - | TO-46-2 Lens Top Metal Can | Tray | Active | 900nm ~ 1700nm | Infrared (NIR)/Red | - | - | 0.83 A/W @ 1300nm, 0.95 A/W @ 1550nm | - | 35 V | 50pA | 0.10mm Dia | - | -40°C ~ 100°C | - | - | Through Hole |
|
|
ADPD2140WBCPZN-RLSENSOR PHOTODIODE 850NM 8WFDFN |
1,907 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | 850nm | Infrared (NIR) | 800nm ~ 1080nm | - | 0.4 A/W @ 880nm, 0.025 A/W @ 660nm | 258ns, 260ns | 8 V | 0.786pA | 0.363mm² | - | -40°C ~ 105°C | - | - | Surface Mount |
|
ODD-5WBSENSOR PHOTODIODE 940NM TO5 |
3,716 | - |
|
Datasheet | Visible | - | Tray | Active | 940nm | Blue | 400nm ~ 1100nm | - | 0.28 A/W @ 450nm | 10ns | 60 V | 1nA | 5mm² | - | -55°C ~ 100°C | - | - | Through Hole |
|
OPR2100HSSENSOR PHOTODIODE 890NM ARRAY |
3,858 | - |
|
Datasheet | - | - | Tube | Obsolete | 890nm | - | 400nm ~ 1100nm | PIN | 0.45 A/W @ 890nm | - | 50 V | 10nA | 3.45mm² (x6) | - | -55°C ~ 125°C | - | - | Surface Mount |
|
|
MTD5032M8950NM TO-46 METAL CAN DRIP LENS |
3,143 | - |
|
Datasheet | - | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SLCD-61N5SENSOR PHOTODIODE 930NM |
3,141 | - |
|
Datasheet | - | - | Bulk | Active | 930nm | - | 400nm ~ 1100nm | - | 0.55 A/W @ 940nm | - | 20 V | 3.3µA | - | 120° | -40°C ~ 125°C | - | - | Surface Mount |
|
|
OPF793SENSOR PHOTODIODE 800NM |
1,275 | - |
|
Datasheet | - | - | Tray | Obsolete | 800nm | - | 800nm ~ 1000nm | PIN | 0.55 A/W @ 850nm | 2ns | 50 V | 500pA | - | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
VTB1012BHSENSOR PHOTODIODE 580NM TO46-2 |
3,953 | - |
|
Datasheet | - | TO-46-2 Lens Top Metal Can | Box | Active | 580nm | - | 330nm ~ 720nm | Planar Diffusion | - | - | 40 V | - | 1.6mm² | 70° | -40°C ~ 110°C | - | - | Through Hole |
|
OPF792SENSOR PHOTODIODE 800NM |
2,941 | - |
|
Datasheet | - | - | Bulk | Obsolete | 800nm | - | 800nm ~ 1000nm | PIN | 0.55 A/W @ 850nm | 2ns | 50 V | 500pA | - | - | -40°C ~ 85°C | - | - | Through Hole |
Photodiodes FAQ
Common questions about selecting, comparing and sourcing Photodiodes components through Winsun (HK) Electronics.
What should I check when selecting Photodiodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Photodiodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Photodiodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Photodiodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
