Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

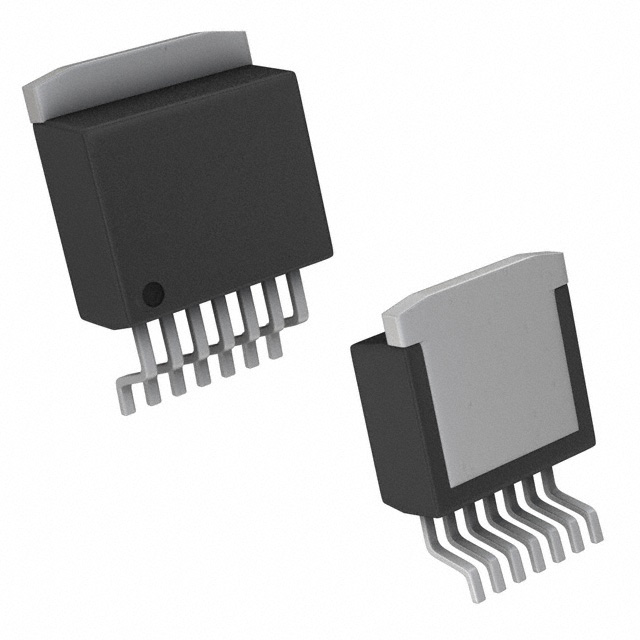

BTS7930BIC HALF BRIDGE DRVR 20A TO263-7 |
2,418 | - |
|
Datasheet | NovalithIC™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 18mOhm LS, 10mOhm HS | 20A | 50A | 5.5V ~ 28V | 5.5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-7-1 |
|
BTS7960PIC HALF BRIDGE DRVR 40A TO220-7 |
3,296 | - |
|
Datasheet | NovalithIC™ | TO-220-7 Formed Leads | Tube | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 9mOhm LS, 7mOhm HS | 40A | 60A | 5.5V ~ 27.5V | 5.5V ~ 27.5V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Through Hole | P-TO220-7 |
|
IR2086STRPBFIC GATE DRVR HALF-BRIDGE 16SOIC |
3,670 | - |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | 9.5V ~ 15V | - | -40°C ~ 125°C (TJ) | - | - | - | - | Surface Mount | 16-SOIC |
.jpg "BTM7710GPAUMA1")
|
BTM7710GPAUMA1IC HALF BRIDGE DRIVER TO263-15 |
2,043 | - |
|
Datasheet | TrilithIC™ | TO-263-18 (15 Leads + 3 Tabs) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 40mOhm LS, 70mOhm HS | - | 15A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 110°C (TJ) | - | - | Status Flag | Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-15-1 |
|
|
BTM7750GPAUMA1IC HALF BRIDGE DRIVER TO263-15 |
1,403 | - |
|
Datasheet | TrilithIC™ | TO-263-18 (15 Leads + 3 Tabs) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 45mOhm LS, 70mOhm HS | - | 12A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 110°C (TJ) | - | - | Status Flag | Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-15-1 |
|
BTM7751GXUMA1IC HALF BRIDGE DRIVER DSO28 |
3,889 | - |
|
Datasheet | TrilithIC™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 45mOhm LS, 70mOhm HS | - | 14A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-DSO-28 |
|
BTN7933BAUMA1IC HALF BRIDGE DRVR 20A TO263-7 |
3,580 | - |
|
Datasheet | NovalithIC™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 18mOhm LS, 10mOhm HS | 20A | 50A | 4.5V ~ 28V | 4.5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | PG-TO263-7-1 |
|
|
BTN7963BAUMA1IC HALF BRIDGE DRVR 44A TO263-7 |
2,444 | - |
|
Datasheet | NovalithIC™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 9mOhm LS, 7mOhm HS | 44A | 90A | 4.5V ~ 28V | 4.5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | PG-TO263-7-1 |
|
|
BTN7973BAUMA1IC HALF BRIDGE DRVR 44A TO263-7 |
4,483 | - |
|
Datasheet | NovalithIC™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 9mOhm LS, 7mOhm HS | 44A | 90A | 4.5V ~ 28V | 4.5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | PG-TO263-7-1 |
|
TDA21211AUMA1IC HALF BRIDGE DRVR 35A IQFN-40 |
2,082 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Buck Converters | PWM | Inductive | DrMOS | - | 35A | - | 4.5V ~ 5.5V | 5V ~ 30V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | PG-IQFN-40-1 |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
