Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRSM505-055PATRIC HALF BRIDGE DRIVER 2.4A 23SOP |
3,268 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
BTN8946TAAUMA1IC HALF BRIDGE DRVR 42A TO263-7 |
2,875 | - |
|
Datasheet | NovalithIC™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Discontinued at Digi-Key | Half Bridge | DC Motors, General Purpose | Logic, PWM | - | DMOS | 6.7mOhm LS + HS | 42A | - | 5.5V ~ 40V | 5.5V ~ 40V | - | - | - | Slew Rate Controlled | Current Limiting, Over Temperature, UVLO | Surface Mount | PG-TO263-7 |
|
TDA21240AUMA1IC HALF BRIDGE DRIVER 40A 30IQFN |
4,534 | - |
|
Datasheet | - | 30-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 7V | 5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
|
TDA21241AUMA1IC HALF BRIDGE DRIVER 35A 30IQFN |
3,416 | - |
|
Datasheet | - | 30-PowerTFQFN | Tape & Reel (TR) | Discontinued at Digi-Key | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 35A | - | 4.5V ~ 7V | 5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
|
TDA21242AUMA1IC HALF BRIDGE DRIVER 25A 30IQFN |
2,481 | - |
|
Datasheet | - | 30-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 25A | - | 4.5V ~ 7V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
TLE94106ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
1,156 | - |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (6) | DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Over Voltage, UVLO | Surface Mount | PG-SSOP-24 |

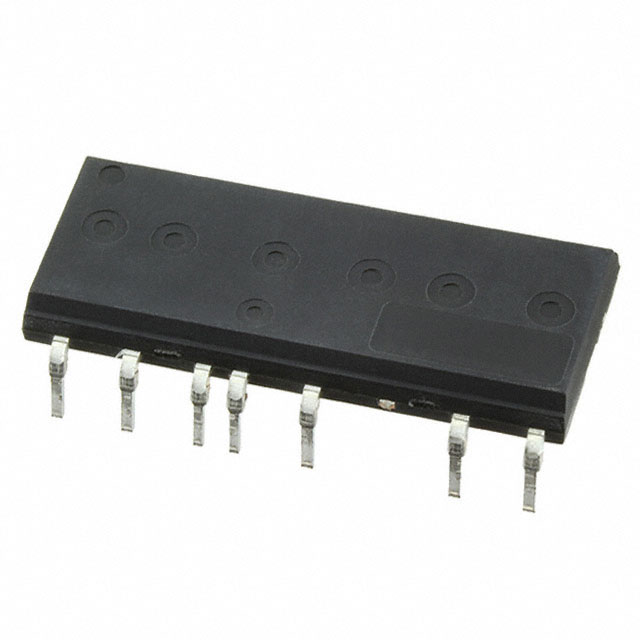

.jpg "IRSM506-076DA")
|
IRSM506-076DAIC HALF BRIDGE DRIVER 4A 23DIP |
1,339 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM516-076DAIC HALF BRIDGE DRIVER 4A 23DIP |
2,225 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |

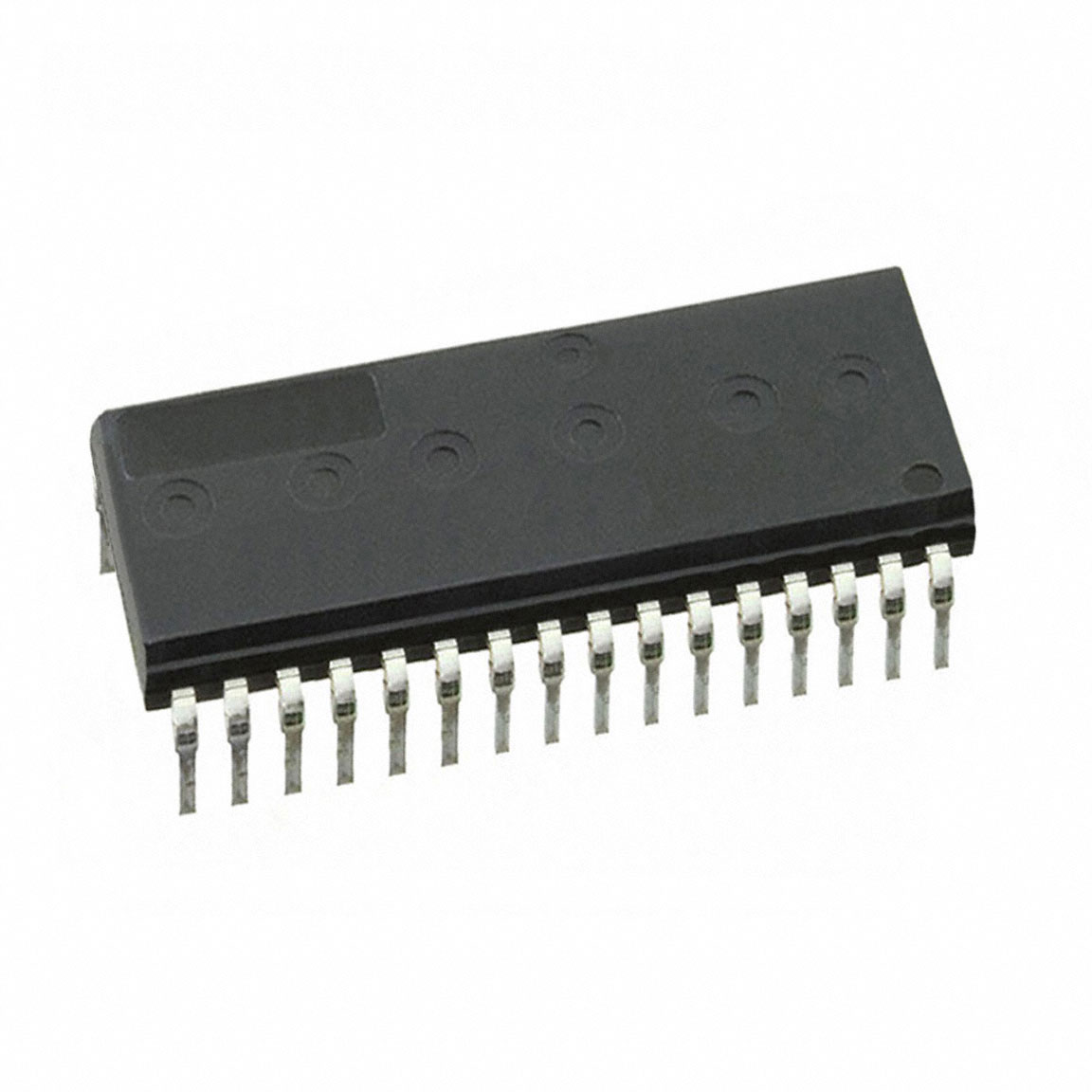

.jpg "IRSM516-076DA2")
|
IRSM516-076DA2IC HALF BRIDGE DRIVER 4A 23DIP |
2,108 | - |
|
Datasheet | µIPM™-DIP | 23-PowerDIP Module (0.551", 14.00mm) | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM516-076PAIC HALF BRIDGE DRIVER 4A 23SOP |
2,867 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
