Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

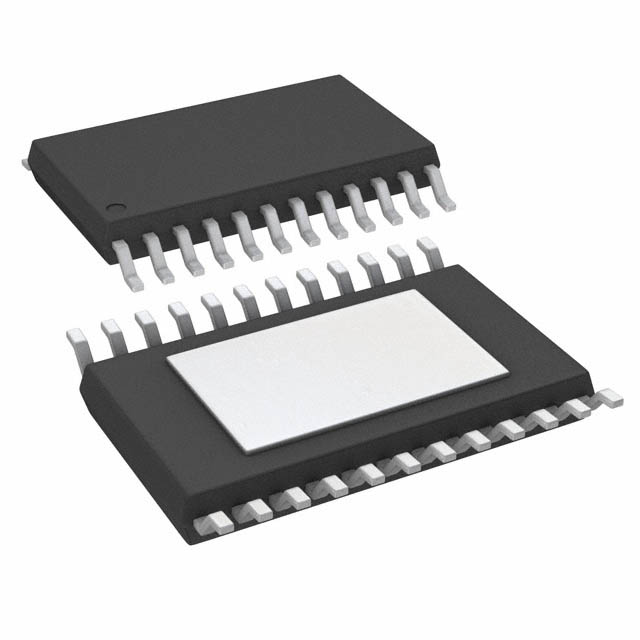

TLE94108ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
1,903 | - |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (8) | AC Motors, DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit, UVLO | Surface Mount | PG-SSOP-24-4 |
|
IRSM005-800MHTRIC HALF BRIDGE DRIVER 80A 27QFN |
6,659 | - |
|
Datasheet | µIPM™ | 27-PowerVQFN | Tape & Reel (TR) | Obsolete | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive, Capacitive | Power MOSFET | 2.7mOhm | 80A | - | 10V ~ 20V | 40V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 27-PQFN (7x8) |
|
|
IRSM005-800MHIC HALF BRIDGE DRIVER 80A 27QFN |
1,297 | - |
|
Datasheet | µIPM™ | 27-PowerVQFN | Tray | Obsolete | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive, Capacitive | Power MOSFET | 2.7mOhm | 80A | - | 10V ~ 20V | 40V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 27-PQFN (7x8) |
|
|
TLE94112ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
2,389 | - |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (12) | AC Motors, DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit, UVLO | Surface Mount | PG-SSOP-24-4 |
|
IRSM515-024PAIC HALF BRIDGE DRIVER 1.6A 23SOP |
4,147 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM515-044PAIC HALF BRIDGE DRIVER 3A 23SOP |
4,377 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 800mOhm | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
IRSM515-084DA2-INFIC HALF BRIDGE DRIVER 4.6A 23DIP |
2,160 | - |
|
Datasheet | - | 23-PowerDIP Module (0.748", 19.00mm) | Bulk | Active | Half Bridge (3) | AC Motors | Logic, PWM | Inductive, Capacitive, Resistive | NMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM505-024DAIC HALF BRIDGE DRIVER 1.6A 23DIP |
2,812 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-024DA2IC HALF BRIDGE DRIVER 1.6A 23DIP |
3,931 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM515-044DA-INFIC HALF BRIDGE DRIVER 3A 23DIP |
120 | - |
|
Datasheet | - | 23-DIP Module (0.573", 14.55mm) | Bulk | Active | Half Bridge (3) | AC Motors | Logic | Inductive | MOSFET (Metal Oxide) | 800mOhm LS, 800mOhm HS | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
