Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STK621-738-EIC HALF BRIDGE DRIVER 15A 21SIP |
4,940 | - |
|
Datasheet | - | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Auto Restart, Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 21-SIP |
|
STK681-200-EIC HALF BRIDGE DRIVER 4.2A 12SIP |
3,879 | - |
|
Datasheet | - | 12-SIP, 11 Leads | Bulk | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET, IGBT | - | 4.2A | - | 4.75V ~ 5.25V | 10V ~ 42V | 150°C (TJ) | - | - | - | - | Through Hole | 12-SIP |
|

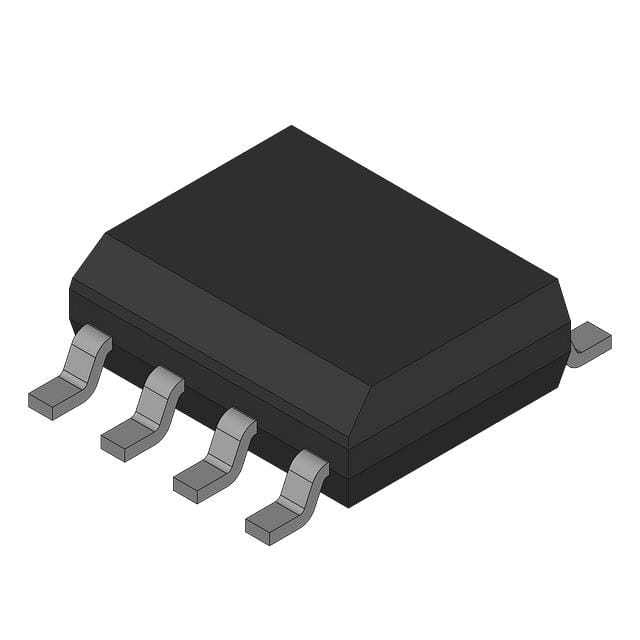

TND316S-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
3,577 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 6Ohm LS, 8Ohm HS | - | 1A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
TND523SS-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
1,248 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | - | - | 200mA, 400mA | 10V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
TND524VS-TL-HIC HALF BRIDGE DRIVER 8VEC |
2,510 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | - | - | 200mA, 400mA | 10V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-VEC |
|
TND525SS-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
3,805 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | - | 200mA, 400mA | 10V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
|
STK534U362C-EIC HALF BRIDGE DRIVER 10A 29SIP |
2,495 | - |
|
Datasheet | - | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 29-SIP |
|

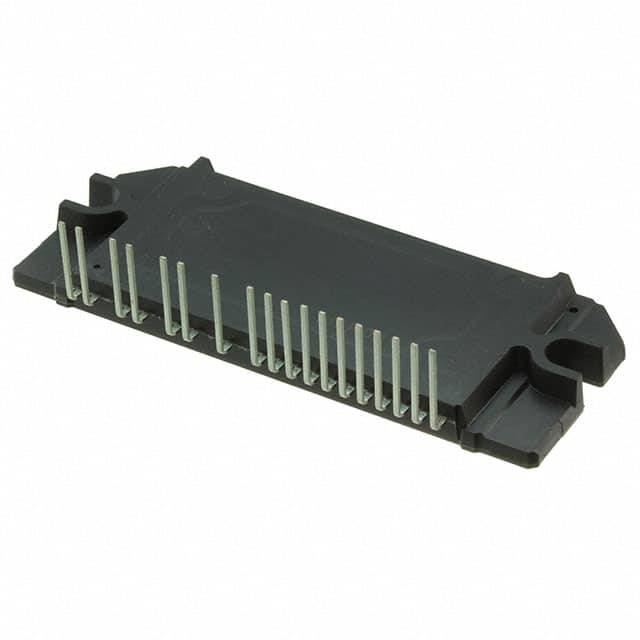

STK581U3C2D-EIC HALF BRIDGE DRIVER 30A 22SIP |
4,062 | - |
|
Datasheet | - | 22-SIP, 18 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 30A | 45A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 22-SIP |
|
TND321VD-TL-HIC HALF BRIDGE DRIVER SOT28FL |
1,306 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | 6Ohm LS, 11Ohm HS | - | 800mA, 1A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | SOT-28FL/VEC8 |
|

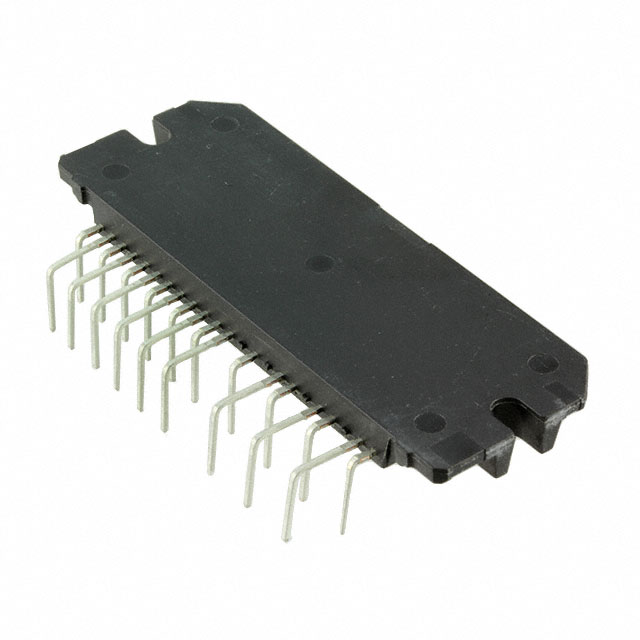

STK541UC60C-EIC HALF BRIDGE DRIVER 10A 23SIP |
4,180 | - |
|
Datasheet | - | 23-SIP, 19 Leads, Formed Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, UVLO | Through Hole | 23-SIP |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
