Full Half-Bridge (H Bridge) Drivers
Use the filters and product table below to compare Full Half-Bridge (H Bridge) Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

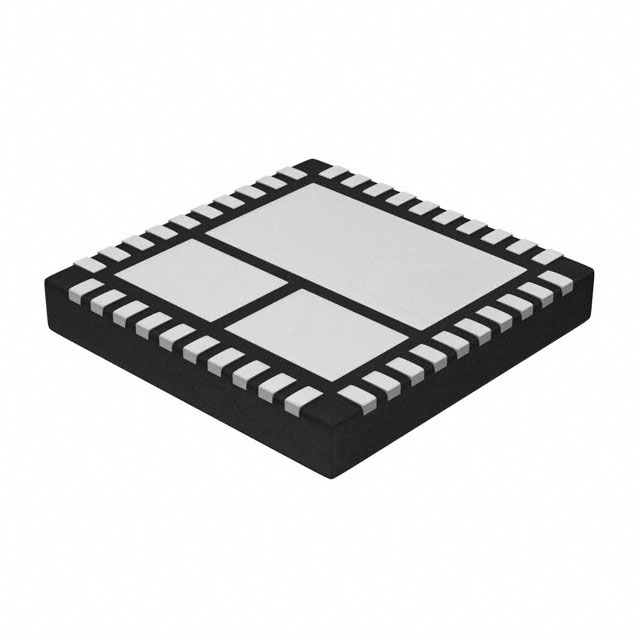

NCP5338MNR2GIC HALF BRIDGE DRIVER 40A 40QFN |
3,979 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 5.5V | 4.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 40-QFN (6x6) |
|
NCV7728DPR2GIC HALF BRIDGE DRVR 550MA 24SSOP |
2,357 | - |
|
Datasheet | - | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (6) | DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 1Ohm LS, 1Ohm HS | 550mA | - | 3.15V ~ 5.25V | 5.5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-SSOP |
|
STK531U369A-EIC HALF BRIDGE DRIVER 10A 29SIP |
2,850 | - |
|
Datasheet | - | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, UVLO | Through Hole | 29-SIP |
|
STK5F1U3E3D-EIC HALF BRIDGE DRIVER 50A 44DIP |
2,180 | - |
|
Datasheet | - | 44-DIP Module, 37 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 50A | 76A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 44-DIP |
|
|
STK531U394A-EIC HALF BRIDGE DRIVER 15A 29SIP |
4,275 | - |
|
Datasheet | - | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting | Through Hole | 29-SIP |
|
STK534UC60A-E3PHASE INVERTER HIC |
2,992 | - |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STK534UC90A-E3PHASE INVERTER HIC |
1,049 | - |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

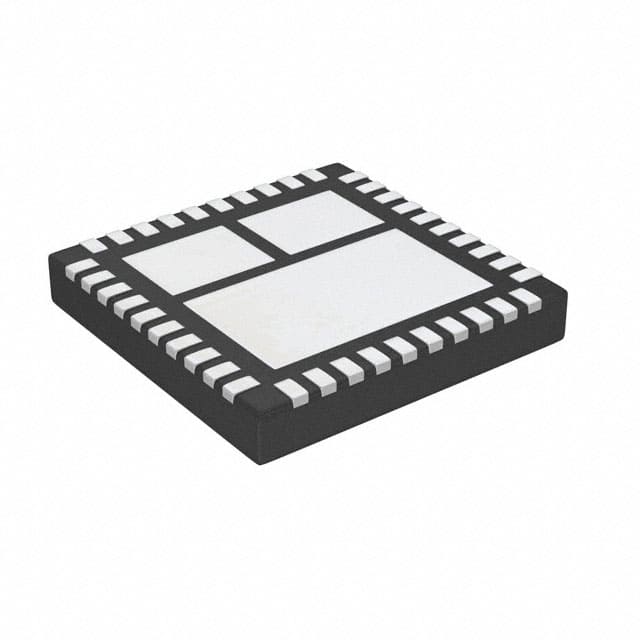

.jpg "NCP5339MNTXG")
|
NCP5339MNTXGIC HALF BRIDGE DRIVER 50A 40QFN |
4,195 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | DC-DC Converters | PWM | Inductive | NMOS | - | 50A | 80A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 40-QFN (6x6) |
|
STK57FU394A-EIC HALF BRIDGE DRIVER 15A 35SIP |
4,751 | - |
|
Datasheet | - | 35-SSIP, 25 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | - | Inductive | Bipolar | - | 15A | 30A | 12.5V ~ 17V | 400V (Max) | 150°C (TJ) | - | - | - | - | Through Hole | 35-SIP |
|

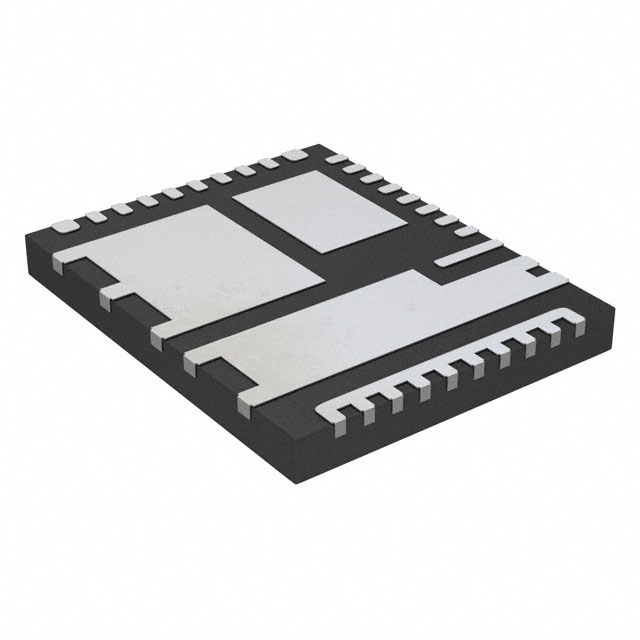

FDMF2011IC HALF BRIDGE DRIVER 20A 36QFN |
3,011 | - |
|
Datasheet | - | 36-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | PWM | Inductive, Capacitive | Power MOSFET | 7.3mOhm LS, 7.7mOhm HS | 20A | - | 10V ~ 20V | 3V ~ 80V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 36-PQFN (7.5x6) |
Full Half-Bridge (H Bridge) Drivers FAQ
Common questions about filtering, comparing and sourcing Full Half-Bridge (H Bridge) Drivers components.
How can I narrow the Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Full Half-Bridge (H Bridge) Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
