Gate Drivers
Use the filters and product table below to compare Gate Drivers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

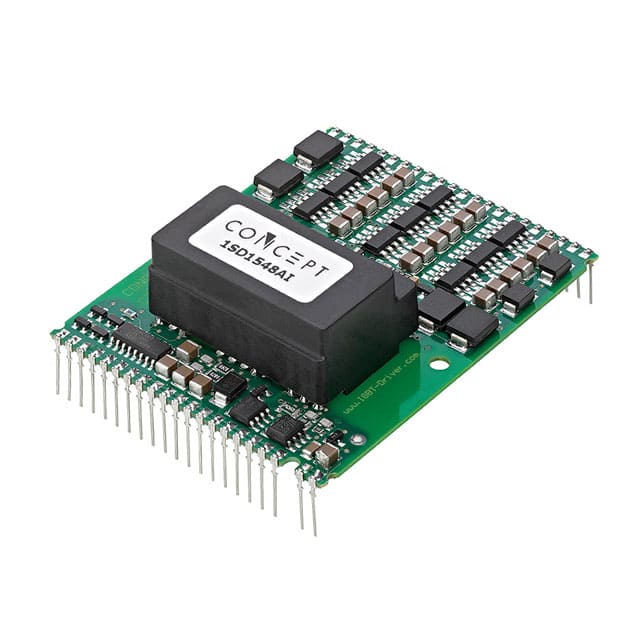

1SD1548AI ULIC GATE DRVR HALF-BRIDGE MODULE |
1,071 | - |
|
Datasheet | SCALE™-1 | Module | Bulk | Active | Not Verified | Half-Bridge | - | 1 | IGBT, N-Channel, P-Channel MOSFET | 15V | - | 48A, 48A | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|

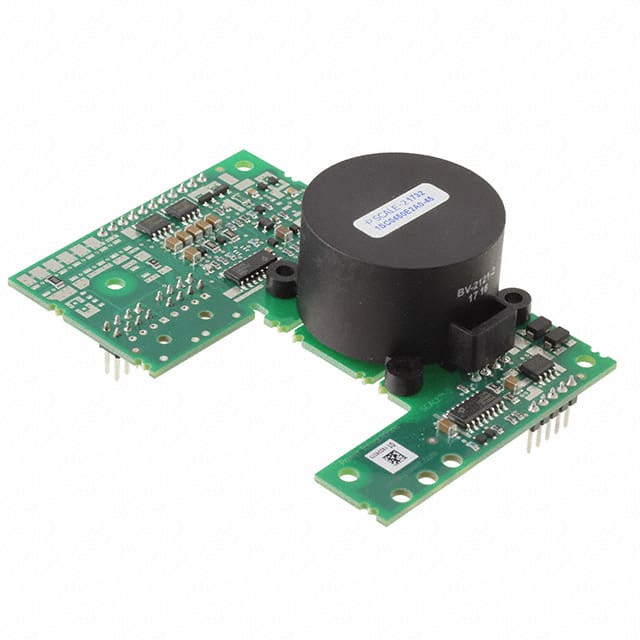

1SC0450E2A0-45IC GATE DRVR HI/LOW SIDE MODULE |
2,143 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 4500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
1SP0635D2S1-12IC GATE DRVR HI/LOW SIDE MODULE |
2,503 | - |
|
Datasheet | SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1200 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

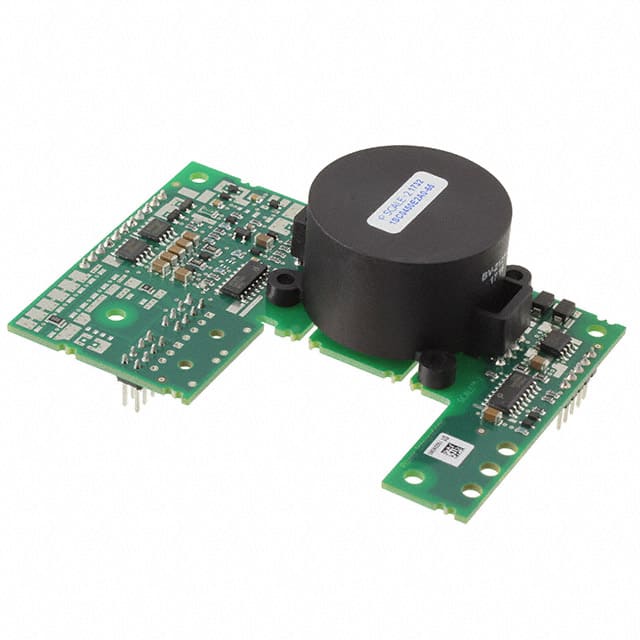

1SC0450E2A0-65IC GATE DRVR HI/LOW SIDE MODULE |
2,111 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
IHD260IC GATE DRVR HALF-BRIDGE MODULE |
4,419 | - |
|
Datasheet | SCALE™-1 | 36-DIP Module, 24 Leads | Box | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 14V ~ 16V | - | - | - | - | 100ns, 80ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|
|
1SP0335V2M1-FZ500R65KE3IC GATE DRVR HI/LOW SIDE MODULE |
2,763 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-MBN1200H45E2-HIC GATE DRVR HI/LOW SIDE MODULE |
3,557 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-5SNA0400J650100IC GATE DRVR HI/LOW SIDE MODULE |
4,498 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-FZ400R65KE3IC GATE DRVR HI/LOW SIDE MODULE |
2,817 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-5SNA1200G450300IC GATE DRVR HI/LOW SIDE MODULE |
3,595 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
Gate Drivers FAQ
Common questions about filtering, comparing and sourcing Gate Drivers components.
How can I narrow the Gate Drivers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Gate Drivers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
