Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

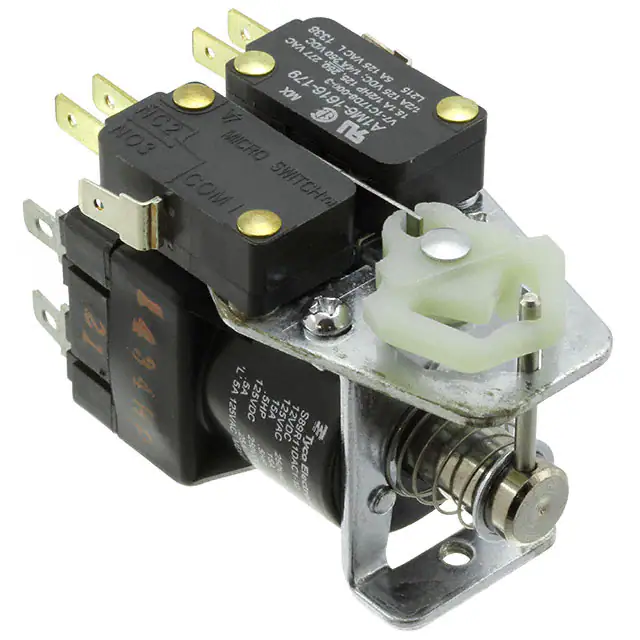

S89R11DAC1-12RELAY IMPULSE DPDT 15A 12V |
1,758 | - |
|
Datasheet | S89R | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 533 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | - | - | -10°C ~ 60°C | - | Impulse | - | - |
|

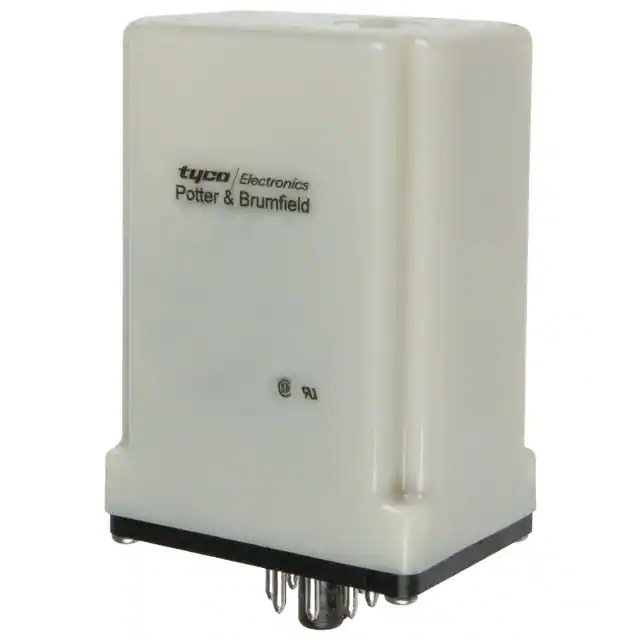

S89R11APP1-120RELAY IMPULSE DPDT 15A 120V |
1,849 | - |
|
Datasheet | S89R | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 75 mA | Latching, Single Coil | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - | Impulse | - | - |
|
RM805024RELAY GEN PURPOSE DPDT 25A 24V |
4,292 | - |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
CSJ-38-70010RELAY GEN PURPOSE DPDT 10A 120V |
3,211 | - |
|
Datasheet | CS | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - | General Purpose | - | - |
|
S89R11AAC1-120RELAY IMPULSE DPDT 15A 120V |
4,294 | - |
|
Datasheet | S89R | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 75 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - | Impulse | - | - |
|
KRP-3AH-120RELAY GEN PURPOSE SPST 20A 120V |
2,836 | - |
|
Datasheet | KRP | Bulk | Obsolete | Socketable | 120VAC | SPST-NO (DM) (1 Form X) | 20 A | 240VAC - Max | 4800VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KBP-11AG-120RELAY GEN PURPOSE DPDT 10A 120V |
4,300 | - |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 120VAC - Nom | - | 44 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RY610005RELAY GEN PURPOSE SPDT 8A 5V |
3,992 | - |
|
Datasheet | RY, SCHRACK | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RY610012RELAY GEN PURPOSE SPDT 8A 12V |
2,060 | - |
|
Datasheet | RY, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RY610024RELAY GEN PURPOSE SPDT 8A 24V |
1,325 | - |
|
Datasheet | RY, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
