Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1432782-1RELAY GEN PURPOSE SPST 30A 12V |
1,425 | - |
|
Datasheet | VF4 | Bulk | Obsolete | Socketable | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | - | 133 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.8 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
1432786-1RELAY GEN PURPOSE SPDT 30A 12V |
4,287 | - |
|
Datasheet | VF4 | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 151 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.8 VDC | 1.2 VDC | 10 ms | 13 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
1432826-1RELAY GEN PURPOSE SPDT 30A 24V |
4,164 | - |
|
Datasheet | VF4 | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 66.7 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 15.6 VDC | 2.4 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RE030006RELAY GEN PURPOSE SPST 6A 6V |
2,958 | - |
|
Datasheet | RE, SCHRACK | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RE032005RELAY GEN PURPOSE SPST 6A 5V |
1,297 | - |
|
Datasheet | RE, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RE032012RELAY GEN PURPOSE SPST 6A 12V |
4,611 | - |
|
Datasheet | RE, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RE032024RELAY GEN PURPOSE SPST 6A 24V |
2,166 | - |
|
Datasheet | RE, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

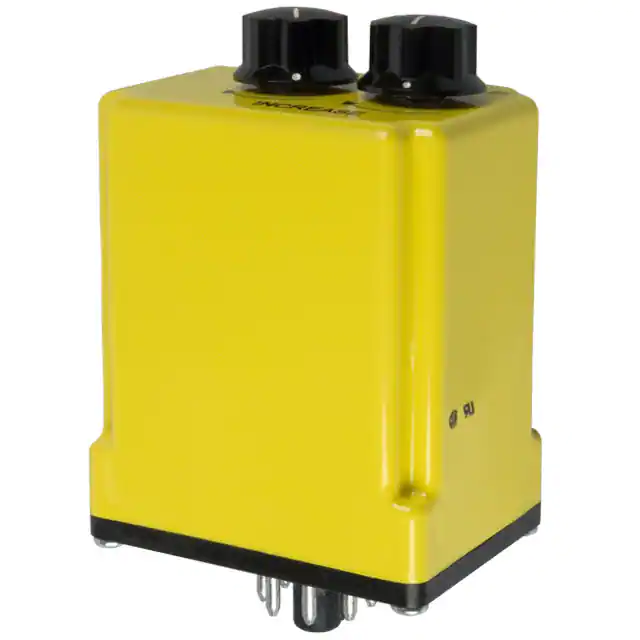

CSL-38-60010RELAY GEN PURPOSE DPDT 10A 110V |
3,995 | - |
|
Datasheet | CS | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - | General Purpose | - | - |
|

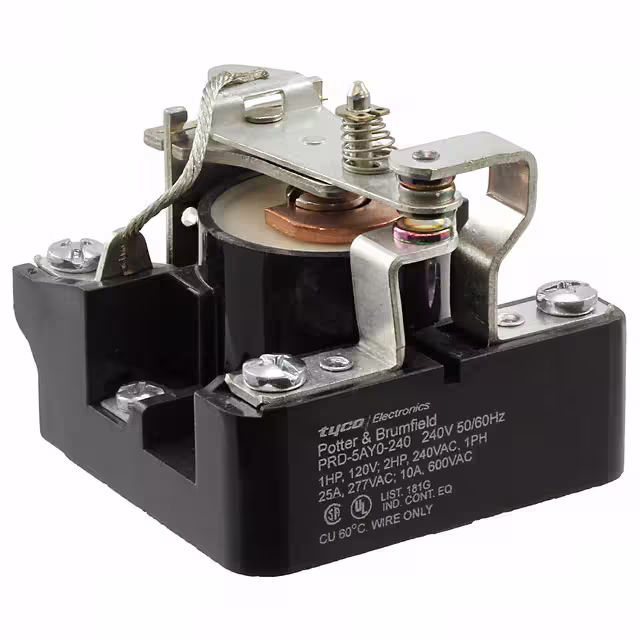

PRD-5AY0-240RELAY GEN PURPOSE SPDT 25A 240V |
4,480 | - |
|
Datasheet | PRD | Bulk | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 43 mA | Non Latching | - | Screw Terminal | - | Class B | 204 VAC | 24 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | General Purpose | - | - |
|
KRPA-11AN-12RELAY GEN PURPOSE DPDT 10A 12V |
1,416 | - |
|
Datasheet | KRPA | Tray | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 168 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 10.2 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
