Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

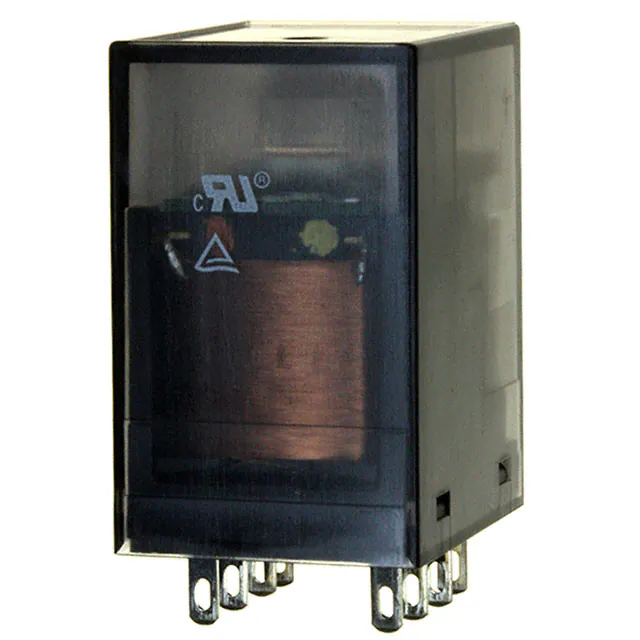

PT52A615BRELAY GEN PURPOSE 4PDT 6A 115V |
3,842 | - |
|
Datasheet | PTH, SCHRACK | Bulk | Obsolete | Socketable | 115VAC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 8.8 mA | Non Latching | - | Plug In | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
18726C2L1RELAY GEN PURPOSE DPST 20A 24V |
4,512 | - |
|
Datasheet | 187 | Tray | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 50 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
7-1393298-3VF4A-15F21-S01=VF4A |
4,317 | - |
|
Datasheet | VF4A | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | - | 16.7 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1393304-5RELAY GEN PURPOSE SPST 70A 24V |
4,745 | - |
|
Datasheet | V23134, AXICOM | Bulk | Obsolete | Socketable | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | - | 89.6 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 16 VDC | 4 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy | General Purpose | - | - |
|
|
1432635-1VF4A-61F21-A01 |
1,748 | - |
|
Datasheet | VF4A | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 40 A | 12VDC - Nom | - | 133.3 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | - | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|

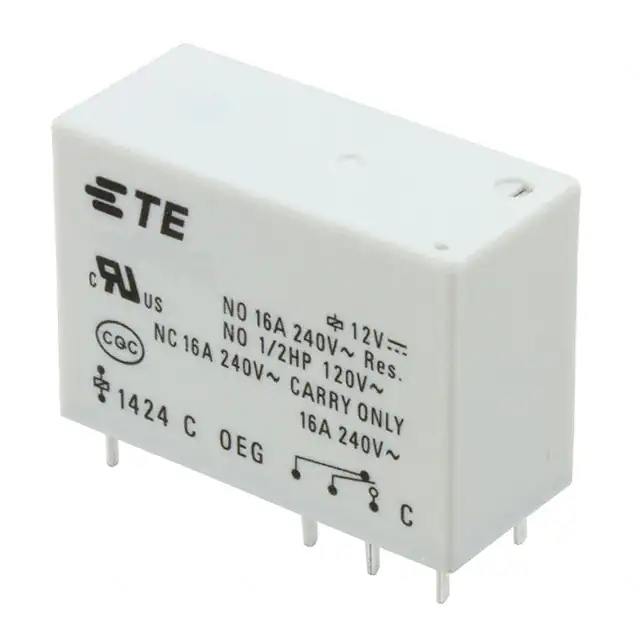

OZ-SS-112LF,000RELAY GEN PURPOSE SPDT 16A 12V |
1,504 | - |
|
Datasheet | OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

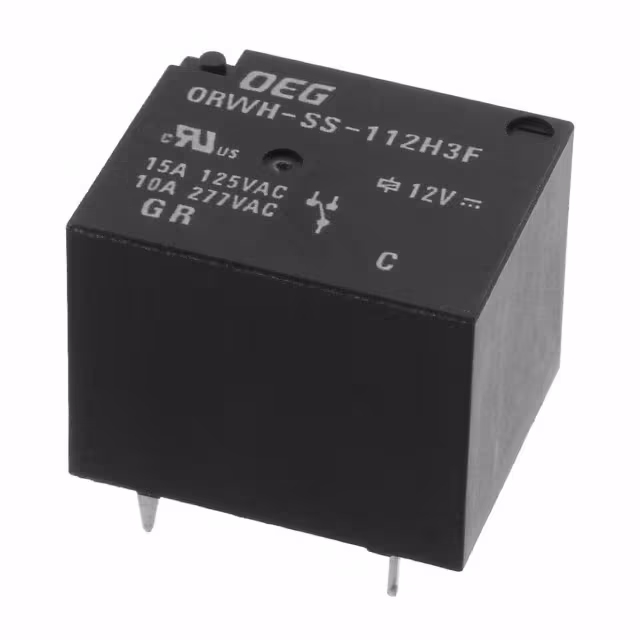

ORWH-SS-112H3F,000RELAY GEN PURPOSE SPDT 10A 12V |
1,279 | - |
|
Datasheet | ORWH, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1904000-1V23232D0001X001-EV-260 |
4,883 | - |
|
Datasheet | V23232, AXICOM | Box | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 50 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 8.8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|

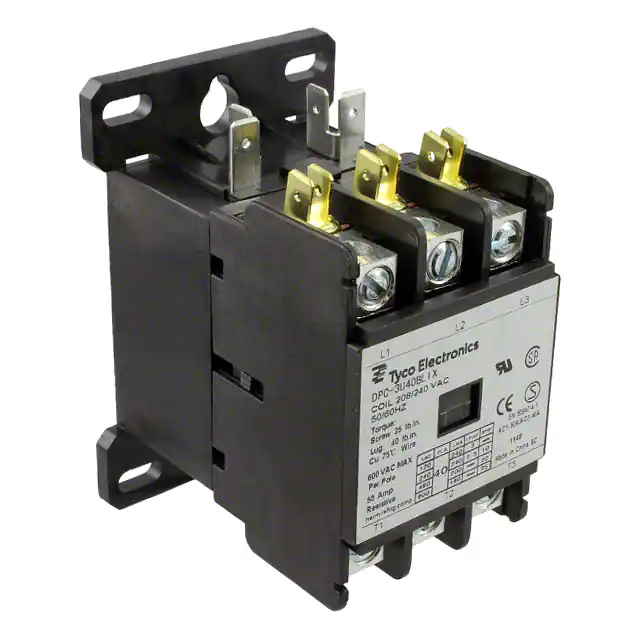

DPC-3U40BL1XRELAY 3PST 40A 208-240V |
3,577 | - |
|
Datasheet | DPC | Bulk | Obsolete | Chassis Mount | 208 ~ 240VAC | 3PST-NO (DM) (3 Form X) | 40 A | - | - | 67 mA | Non Latching | - | Solder Lug | - | - | 177 VDC | 140 VDC | - | - | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

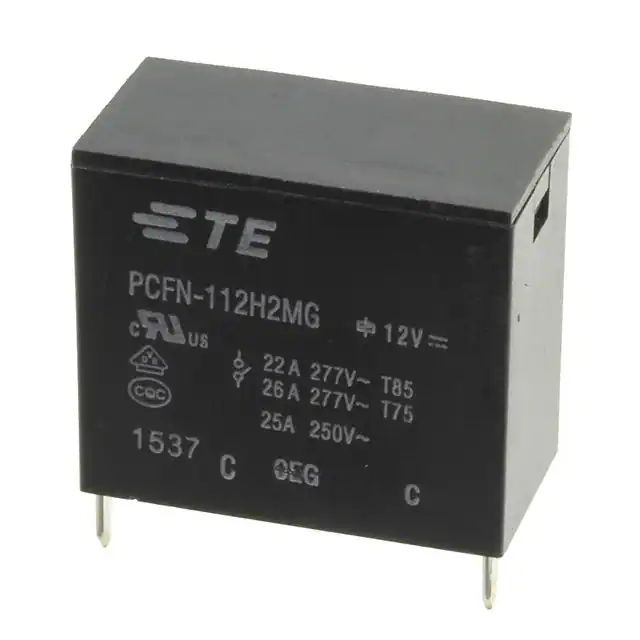

PCFN-112H2MG,000RELAY GEN PURPOSE SPST 26A 12V |
2,239 | - |
|
Datasheet | PCFN Solar, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 26 A | 277VAC - Max | 7202VA | 125 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 7.8 VDC | 1.2 VDC | 20 ms | 10 ms | -25°C ~ 75°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
