Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

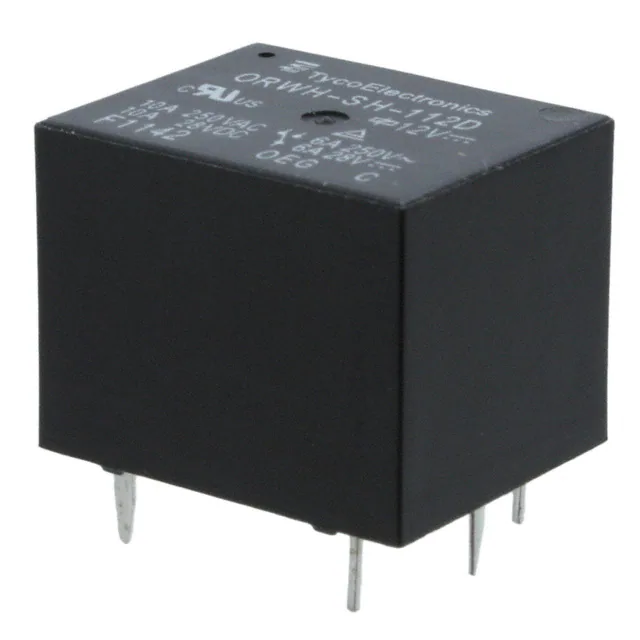

ORWH-SH-112D,N000RELAY GEN PURPOSE SPDT 10A 12V |
3,461 | - |
|
Datasheet | ORWH, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
7-1608065-1RELAY GEN PURPOSE DPDT 20A 24V |
1,122 | - |
|
Datasheet | 187 | Tray | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 333.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
5-1608054-5RELAY GEN PURPOSE DPDT 10A 120V |
2,228 | - |
|
Datasheet | 157, CII | Tray | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Nom | 2.7VA | 53.3 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
XT484S15RELAY GEN PURPOSE DPDT 8A 115V |
2,774 | - |
|
Datasheet | XT, SCHRACK | Tube | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 86.3 VAC | 17.3 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

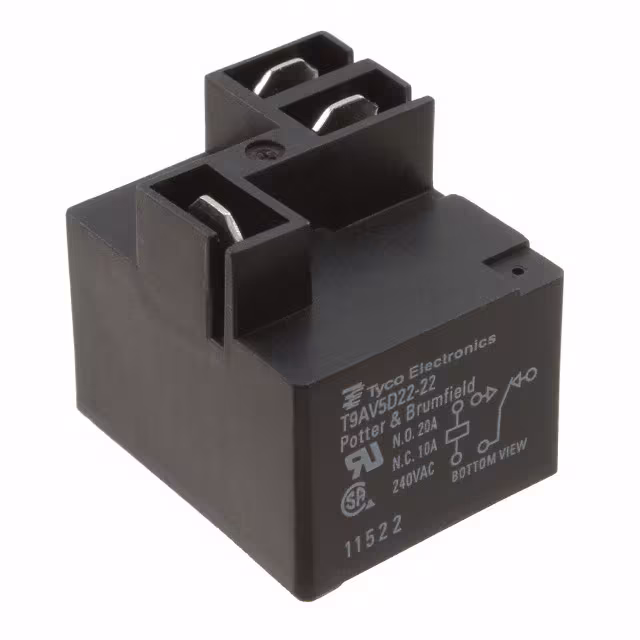

T9AV5D22-22RELAY GEN PURPOSE SPDT 20A 22V |
2,189 | - |
|
Datasheet | T9A | Bulk | Obsolete | Through Hole | 22VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 45.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
7-1608051-9157-22T1L5=R2939 |
1,376 | - |
|
Datasheet | 157, CII | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 240VAC, 28VDC - Nom | 2.7VA | 53.3 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
156-14Q200RELAY GEN PURPOSE 4PDT 24V |
2,700 | - |
|
Datasheet | 156, CII | Bulk | Obsolete | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 150 mA | Non Latching | - | Solder Lug | - | - | 20.4 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
156-14T2L0RELAY GEN PURP |
2,835 | - |
|
Datasheet | 156, CII | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | - | Non Latching | - | Solder Lug | - | - | 93.5 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
15722F2L5RELAY GEN PURP |
1,077 | - |
|
Datasheet | 157, CII | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Nom | 2400VA, 280W | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 82.5 VDC | - | 20 ms | 10 ms | -45°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
15732S7A1RELAY GEN PURPOSE DPDT |
3,881 | - |
|
Datasheet | 157, CII | Bulk | Active | Socketable | - | DPDT (2 Form C) | - | - | - | - | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
