Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

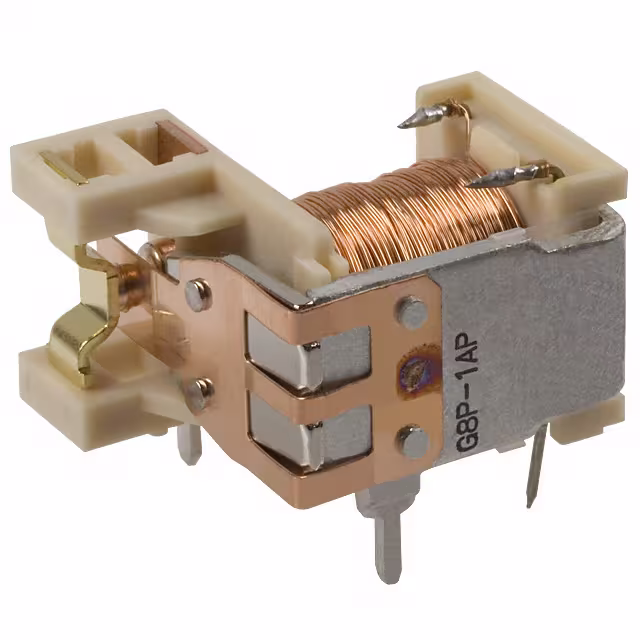

G8P-1AP DC110RELAY GEN PURPOSE SPST 30A 110V |
4,925 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 9 mA | Non Latching | - | PC Pin | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1AP DC9RELAY GEN PURPOSE SPST 30A 9V |
3,734 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 93 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G8P-1ATP DC110RELAY GEN PURPOSE SPST 30A 110V |
2,895 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1ATP DC12RELAY GEN PURPOSE SPST 30A 12V |
2,274 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 77 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1ATP DC24RELAY GEN PURPOSE SPST 30A 24V |
1,688 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 36 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1ATP DC5RELAY GEN PURPOSE SPST 30A 5V |
4,616 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 185 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

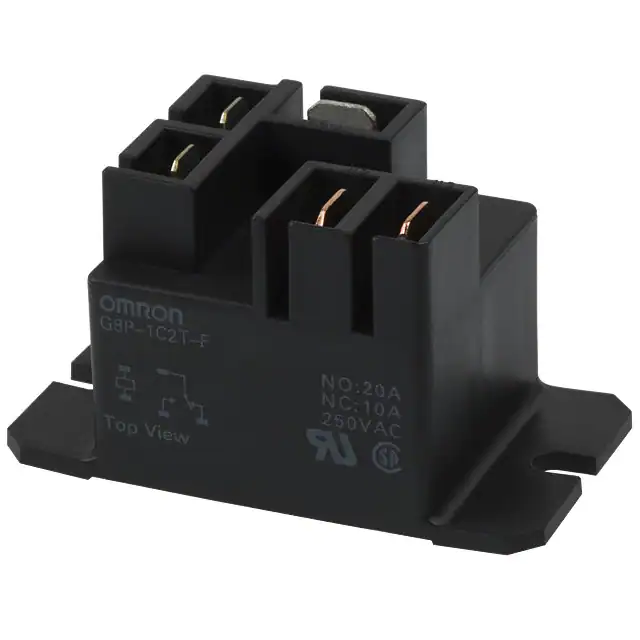

G8P-1C2T-F DC48RELAY GEN PURPOSE SPDT 10A 48V |
1,017 | - |
|
Datasheet | G8P | Bulk | Obsolete | Chassis Mount | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 19 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1C2T-F DC5RELAY GEN PURPOSE SPDT 10A 5V |
2,239 | - |
|
Datasheet | G8P | Bulk | Obsolete | Chassis Mount | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 185 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1C4P DC110RELAY GEN PURPOSE SPDT 10A 110V |
3,144 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1C4P DC22RELAY GEN PURPOSE SPDT 10A 22V |
4,002 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 22VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 41 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
