Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9EC-1-B DC48RELAY GEN PURPOSE SPST 200A 48V |
3,695 | - |
|
Datasheet | G9EC-1 | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 80000VA | 234 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 36 VDC | 3.84 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | General Purpose | - | - |
|
|
G9EC-1-B DC60RELAY GEN PURPOSE SPST 200A 60V |
4,729 | - |
|
Datasheet | G9EC-1 | Bulk | Active | Chassis Mount | 60VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 80000VA | 188 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 45 VDC | 4.8 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | General Purpose | - | - |
|

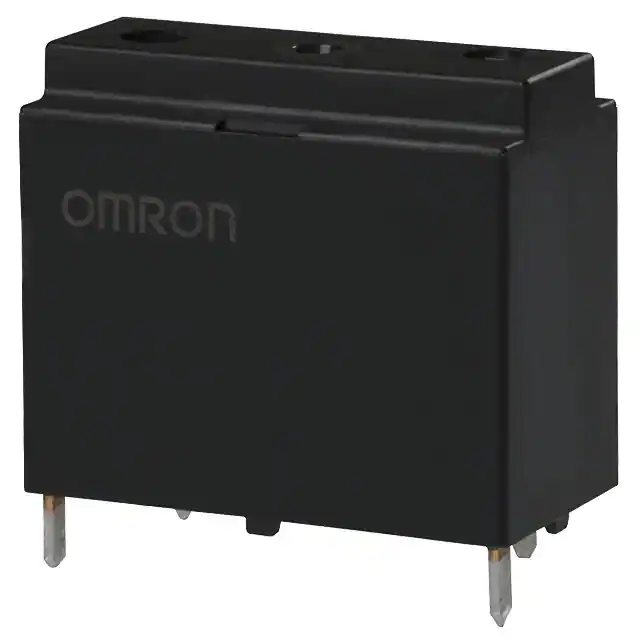

G4A-1A-PE-T130 DC12RELAY GEN PURPOSE SPST 20A 12V |
3,047 | - |
|
Datasheet | G4A | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -20°C ~ 60°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G4B-112T1-FD-C-US-RPAC12RELAY GEN PURPOSE SPDT 25A 12V |
2,052 | - |
|
Datasheet | G4B | Bulk | Obsolete | Chassis Mount | 12VAC | SPDT (1 Form C) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 108 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 9.6 VAC | 3.6 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
G4B-112T1-FD-C-USRP AC120RELAY GEN PURPOSE SPDT 25A 120V |
4,117 | - |
|
Datasheet | G4B | Tray | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 10.8 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
G4B-112T1-FD-C-US-RP AC24RELAY GEN PURPOSE SPDT 25A 24V |
1,429 | - |
|
Datasheet | G4B | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 54 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
G4B-112T1-FD-US-RP AC120RELAY GEN PURPOSE SPST 25A 120V |
1,798 | - |
|
Datasheet | G4B | Tray | Obsolete | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 10.8 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
G4B-112T1-FD-US-RP AC24RELAY GEN PURPOSE SPST 25A 24V |
3,700 | - |
|
Datasheet | G4B | Bulk | Obsolete | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 54 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
G4B-112T1-FD-USRPT130 AC120 BYRELAY GEN PURPOSE SPST 25A 120V |
4,107 | - |
|
Datasheet | G4B | Bulk | Obsolete | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 10.8 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
G4B-112T1-FD-US-RP-T130 AC24RELAY GEN PURPOSE SPST 25A 24V |
4,438 | - |
|
Datasheet | G4B | Bulk | Obsolete | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 54 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
