Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4Q-212S DC12RELAY GEN PURPOSE DPDT 5A 12V |
1,930 | - |
|
Datasheet | G4Q | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 320 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 8.4 VDC | 1.2 VDC | 60 ms | - | -10°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
G4Q-212S DC24RELAY GEN PURPOSE DPDT 5A 24V |
4,461 | - |
|
Datasheet | G4Q | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 162 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 16.8 VDC | 2.4 VDC | 60 ms | - | -10°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
G4W-1112P-US-TV8-HP-DC100RELAY GEN PURPOSE SPST 15A 100V |
3,518 | - |
|
Datasheet | G4W | Bulk | Active | Through Hole | 100VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 8 mA | Non Latching | - | PC Pin | - | - | 80 VDC | 10 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G4W-1112P-US-TV8-HP-DC18RELAY GEN PURPOSE SPST 15A 18V |
3,205 | - |
|
Datasheet | G4W | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 44.4 mA | Non Latching | - | PC Pin | - | - | 14.4 VDC | 1.8 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G4W-2212P-VD-TV5-HP DC24RELAY GEN PURPOSE DPST 10A 24V |
4,472 | - |
|
Datasheet | G4W | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 10 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 33.3 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

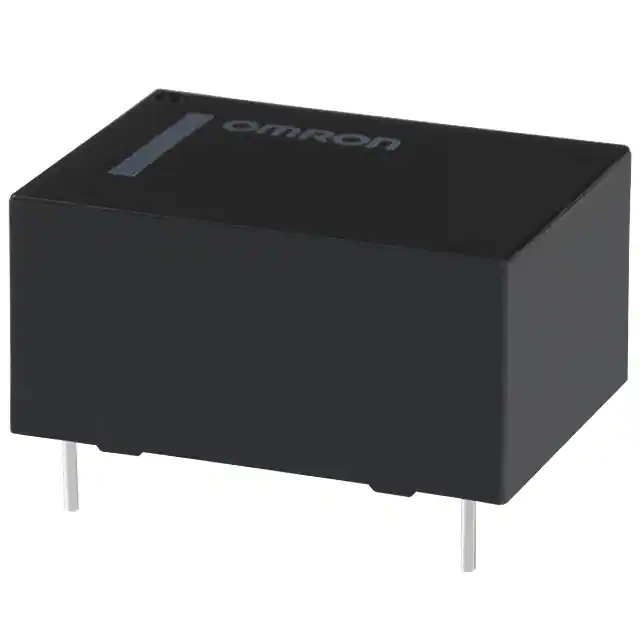

G5CA-1A-L DC24RELAY GEN PURPOSE SPST 10A 24V |
3,746 | - |
|
Datasheet | G5CA | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | General Purpose | - | - |
|
G5G-1ADC12RELAY GEN PURPOSE SPST 16A 12V |
4,316 | - |
|
Datasheet | G5G | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 41.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 0.6 VDC | 20 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
G5G-1A-PSDC24RELAY GEN PURPOSE SPST 16A 24V |
1,340 | - |
|
Datasheet | G5G | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 20.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 1.2 VDC | 20 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
G5LA-1A4-CF DC12RELAY GEN PURPOSE SPST 10A 12V |
4,754 | - |
|
Datasheet | G5LA | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 24VDC - Max | 2500VA, 240W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
G5LA-1A4-CF DC24RELAY GEN PURPOSE SPST 10A 24V |
2,751 | - |
|
Datasheet | G5LA | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 24VDC - Max | 2500VA, 240W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
