Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G5NB-1A-E-SP DC12RELAY GEN PURPOSE SPST 5A 12V |
3,988 | - |
|
Datasheet | G5NB | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
G5NB-1A-E DC9RELAY GEN PURPOSE SPST 5A 9V |
4,118 | - |
|
Datasheet | G5NB | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
G5NB-1A DC18RELAY GEN PURPOSE SPST 3A 18V |
3,627 | - |
|
Datasheet | G5NB | Tray | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 30VDC - Max | 750VA, 90W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 13.5 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
G5NB-1A DC9RELAY GEN PURPOSE SPST 3A 9V |
4,781 | - |
|
Datasheet | G5NB | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 30VDC - Max | 750VA, 90W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
G5NB-1A4-E DC24RELAY GEN PURPOSE SPST 5A 24V |
4,023 | - |
|
Datasheet | G5NB | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|

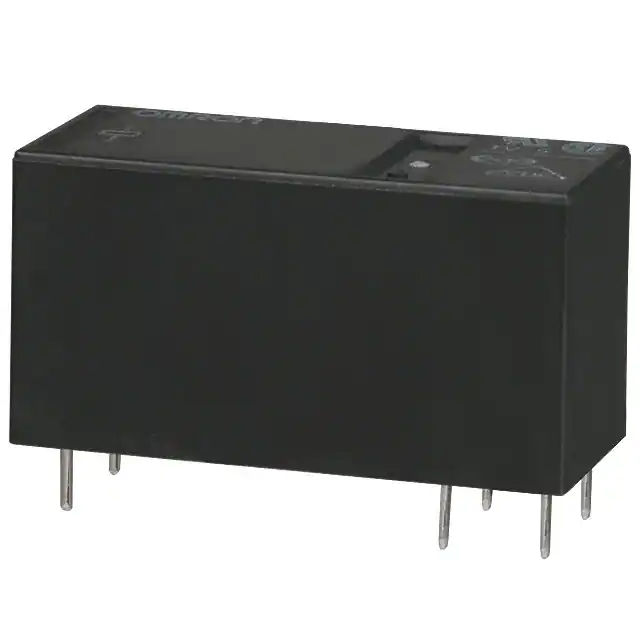

G5RL-1A-E AC115/120RELAY GEN PURPOSE SPST 16A 120V |
4,774 | - |
|
Datasheet | G5RL | Bulk | Active | Through Hole | 120VAC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 6.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 90 VAC | 18 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G5SB-14-CB DC12RELAY GEN PURPOSE SPDT 5A 12V |
2,801 | - |
|
Datasheet | G5SB | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

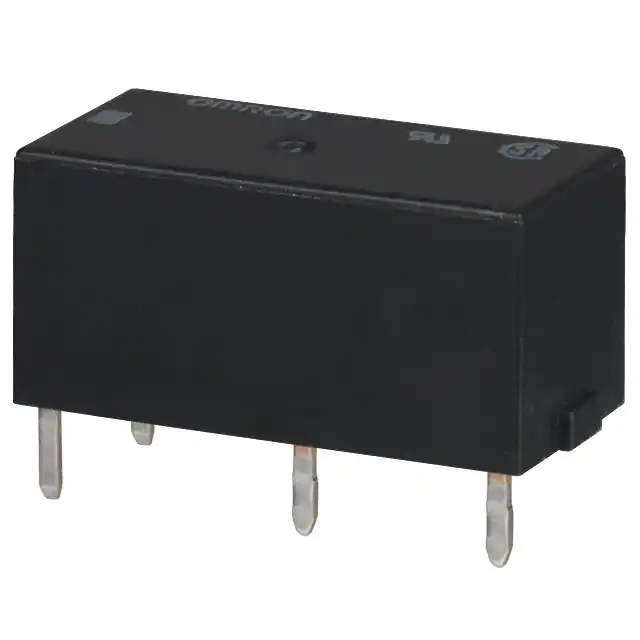

G6B-1174P-FD-US DC3RELAY GEN PURPOSE SPST 8A 3V |
2,685 | - |
|
Datasheet | G6B | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
G6B-2014P-US-P6B DC5RELAY GEN PURPOSE DPST 5A 5V |
4,022 | - |
|
Datasheet | G6B | Bulk | Active | Socketable | 5VDC | DPST-NC (2 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 60 mA | Non Latching | - | Plug In | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G6B-2214P-1-US-P6B DC24RELAY GEN PURPOSE DPST 5A 24V |
3,055 | - |
|
Datasheet | G6B | Bulk | Active | Socketable | 24VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 12.5 mA | Non Latching | - | Plug In | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
