Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-1A-P-CB DC6RELAY GEN PURPOSE SPST 20A 6V |
2,799 | - |
|
Datasheet | G7L | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 317 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-TUB-80-CB AC24RELAY GEN PURPOSE DPST 25A 24V |
4,859 | - |
|
Datasheet | G7L | Bulk | Obsolete | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 71 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VAC | 3.6 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-P-80-CB DC48RELAY GEN PURPOSE DPST 20A 48V |
2,203 | - |
|
Datasheet | G7L | Bulk | Active | Through Hole | 48VDC | DPST-NO (2 Form A) | 20 A | 250VAC - Max | 5000VA | 40 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|

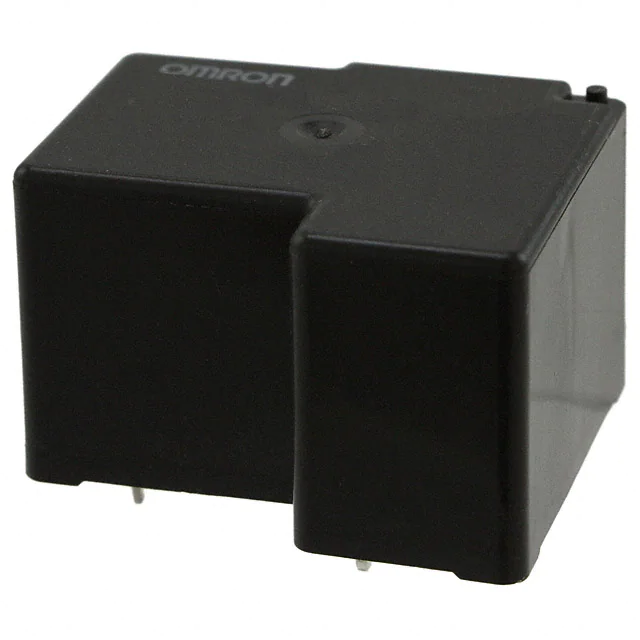

G8P-1A4P-BG-DC12RELAY GEN PURPOSE SPST 20A 12V |
1,639 | - |
|
Datasheet | G8P | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 28VDC - Max | 5000VA, 560W | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1A4P-BG-DC24RELAY GEN PURPOSE SPST 20A 24V |
3,059 | - |
|
Datasheet | G8P | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 28VDC - Max | 5000VA, 560W | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

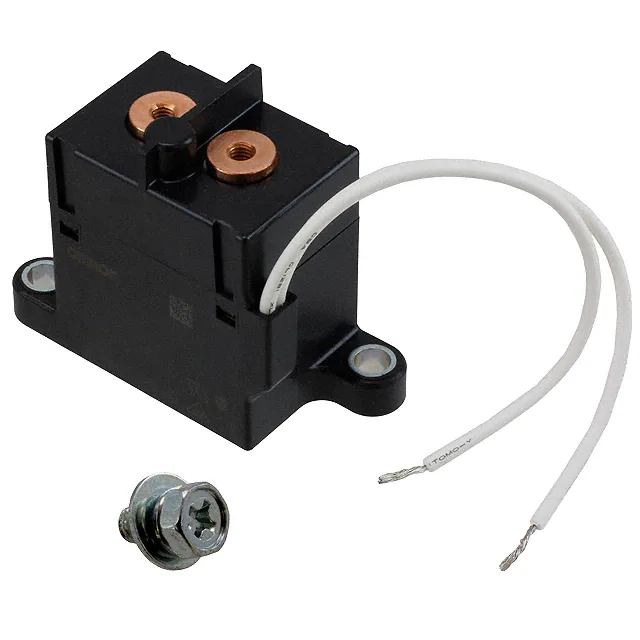

G9EN-1-UVD-DC24RELAY GEN PURPOSE SPST 60A 24V |
1,548 | - |
|
Datasheet | G9EN | Bulk | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000VA | 208 mA | Non Latching | - | Screw Terminal | - | - | 14.4 VDC | 1.2 VDC | 40 ms | 20 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
G5NB1A4EDC24ARELAY GEN PURPOSE SPST 5A 24V |
1,497 | - |
|
Datasheet | G5NB | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G9EN1DC12RELAY GEN PURPOSE SPST 60A 12V |
2,789 | - |
|
Datasheet | G9EN | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000VA | 417 mA | Non Latching | - | Screw Terminal | - | - | 7.2 VDC | 0.6 VDC | 40 ms | 20 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|

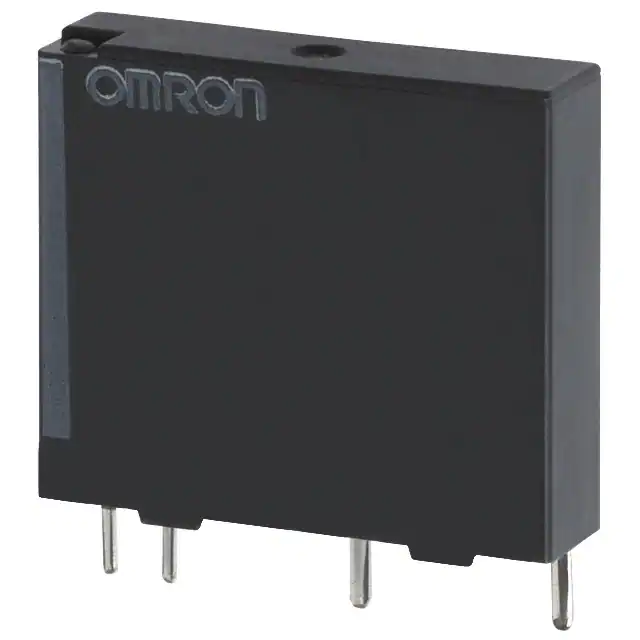

G6M-1A DC4.5RELAY GEN PURPOSE SPST 3A 4.5V |
3,913 | - |
|
Datasheet | G6M | Bulk | Obsolete | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 3 A | 270VAC, 125VDC - Max | 810VA, 375W | 26.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.38 VDC | 0.225 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
G6DN-1A ASI DC12RELAY GEN PURPOSE |
2,646 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
