Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6DN-1A-ASI DC24RELAY GEN PURPOSE |
4,491 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

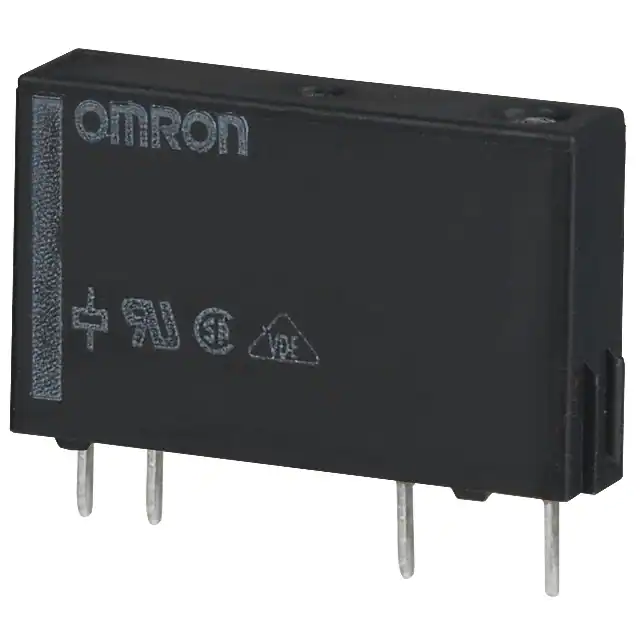

G6DS-1A-ASI DC12RELAY GEN PURPOSE |
1,517 | - |
|
Datasheet | G6DS | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 70°C | - | General Purpose | - | - |
|
|
G6DS-1A-ASI DC24RELAY GEN PURPOSE |
1,111 | - |
|
Datasheet | G6DS | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 70°C | - | General Purpose | - | - |
|
|
G6DS-1A-H DC20RELAY GEN PURPOSE SPST 5A 20V |
4,007 | - |
|
Datasheet | G6DS | Bulk | Obsolete | Through Hole | 20VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 14 VDC | 1 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
|
G6DS-1A-H DC6RELAY GEN PURPOSE SPST 5A 6V |
3,702 | - |
|
Datasheet | G6DS | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
|
G6DS-1A-H-OM DC24RELAY GEN PURPOSE SPST 5A 24V |
1,488 | - |
|
Datasheet | G6DS | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
|
G6DS-1A-N DC12RELAY GEN PURPOSE |
3,336 | - |
|
Datasheet | G6DS | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
G5Q-1A DC48RELAY GEN PURPOSE SPST 10A 48V |
4,258 | - |
|
Datasheet | G5Q | Tray | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 4.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 36 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
G5SB-1 DC48RELAY GEN PURPOSE SPDT 5A 48V |
3,923 | - |
|
Datasheet | G5SB | Bulk | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G5SB-1 DC9RELAY GEN PURPOSE SPDT 5A 9V |
1,842 | - |
|
Datasheet | G5SB | Bulk | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
