Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

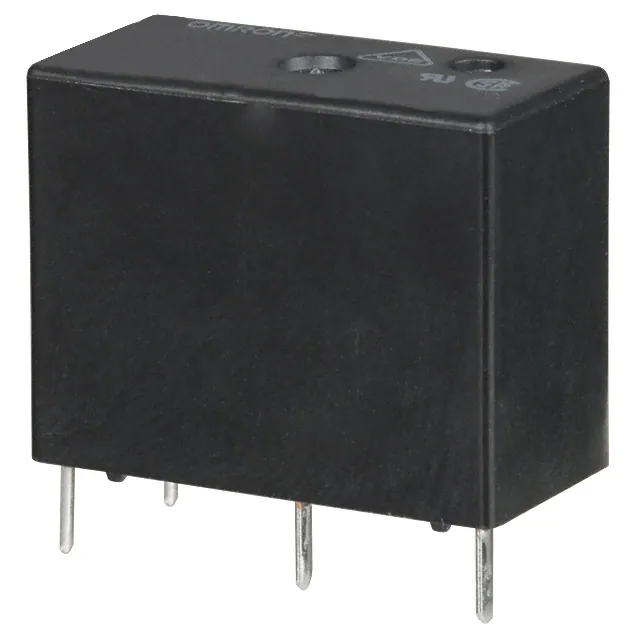

G5SB-14-ANI DC5RELAY GEN PURPOSE SPDT 5A 5V |
4,443 | - |
|
Datasheet | G5SB | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G2R-1-EZ DC24RELAY GEN PURPOSE SPDT 16A 24V |
2,936 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
LY2-UA-006349LY2-UA-006349 |
2,278 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G5LE-14-AP3-DC24HA RELAYS - POWER PCB RELAY |
2,224 | - |
|
Datasheet | G5LE | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G5SB-14-DC48POWER PCB RELAY |
3,286 | - |
|
Datasheet | G5SB | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | - | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G7L-2A-BUBJ-CB-DC12POWER RELAYS - GP POWER RELAY |
1,388 | - |
|
Datasheet | G7L | Box | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | - | 158 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
G2RL8076HRELAY GEN PURPOSE SPDT 10A 5V |
3,188 | - |
|
Datasheet | G2RL | - | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 440VAC, 300VDC - Max | 4400VA, 3000W | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G2RL-1ATP5-E-DC12PCB POWER RELAY |
3,312 | - |
|
Datasheet | G2RL | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G9EC-1-DC12DC POWER RELAY - DC POWER RELAY |
4,659 | - |
|
Datasheet | G9EC | - | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 80000W | 938 mA | Non Latching | - | Wire Leads | Sealed - Fully | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | General Purpose | - | - |
|
|
G6CK1102RRELAY GEN PURPOSE DPST 8A 3V |
3,517 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 67 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
