Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4W-1114P-US-TV8-HP DC12RELAY GEN PURPOSE SPST 15A 12V |
400 | - |
|
Datasheet | G4W | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 66.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G2R-2A4 AC100/(110)RELAY GEN PURPOSE DPST 5A 110V |
269 | - |
|
Datasheet | G2R | Bulk | Active | Through Hole | 110VAC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

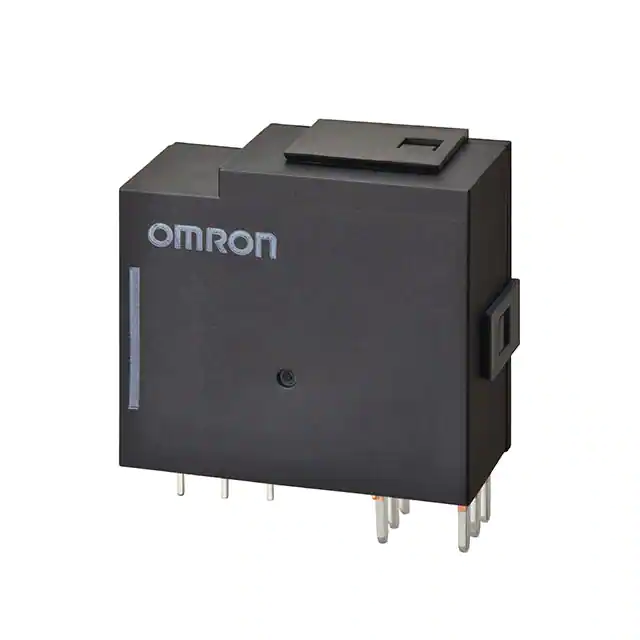

G9TA-K1AP DC12RELAY GEN PURPOSE SPST 60A 12V |
883 | - |
|
Datasheet | G9TA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 15000VA | 217 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G9TA-U1AP DC12RELAY GEN PURPOSE SPST 60A 12V |
996 | - |
|
Datasheet | G9TA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 15000VA | 83 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | - | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G7L-1A-TUB-J-CB AC200/240RELAY GEN PURPOSE SPST 30A 240V |
522 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 10.2 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-TUBJ AC24RELAY GEN PURPOSE DPST 25A 24V |
257 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 71 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VAC | 3.6 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-24 AC24RELAY GEN PURPOSE DPDT 4A 24V |
280 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 24VAC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

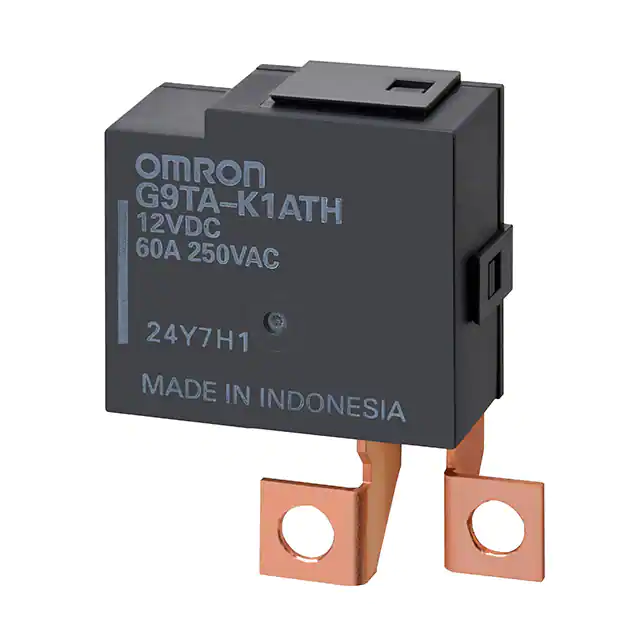

G9TA-K1ATH DC12RELAY GEN PURPOSE SPST 60A 12V |
133 | - |
|
Datasheet | G9TA | Tray | Active | Free Hanging | 12VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 15000VA | 217 mA | Latching, Dual Coil | - | Square Lug | Sealed - Flux Protection | - | 9.6 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G2R-14 DC110RELAY GEN PURPOSE SPDT 8A 110V |
112 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 110VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 4.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 77 VDC | 16.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G7L-2A-P-PV DC24RELAY GEN PURPOSE DPST 30A 24V |
215 | - |
|
Datasheet | G7L-PV | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 277VAC - Max | 8310VA | 95.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 30 ms | 30 ms | -25°C ~ 85°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
