Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-1A-TUB-J-CB DC12RELAY GEN PURPOSE SPST 30A 12V |
1,581 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 158 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G5RL-1-E AC230/240RELAY GEN PURPOSE SPDT 16A 240V |
1,500 | - |
|
Datasheet | G5RL | Bulk | Active | Through Hole | 240VAC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 31.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 180 VAC | 36 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G7L-1A-TUB-J-CB AC24RELAY GEN PURPOSE SPST 30A 24V |
183 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 71 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VAC | 3.6 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-P-CB DC6RELAY GEN PURPOSE DPST 20A 6V |
204 | - |
|
Datasheet | G7L | Bulk | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 20 A | 250VAC - Max | 5000VA | 317 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G7L-2A-TUB-CB AC200/240RELAY GEN PURPOSE DPST 25A 240V |
192 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 10.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|

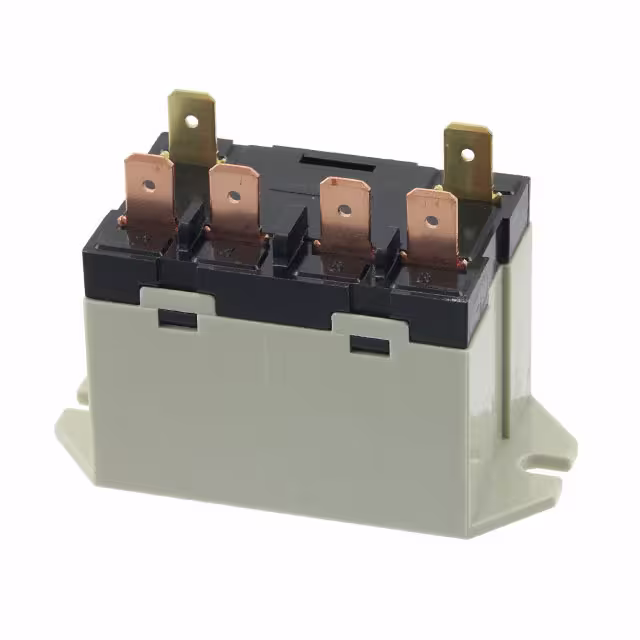

G7L-2A-TUB-80A-CB AC200/240RELAY GEN PURPOSE DPST 25A 240V |
672 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 10.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-24 AC220RELAY GEN PURPOSE DPDT 4A 220V |
533 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 220VAC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 4.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 176 VAC | 66 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

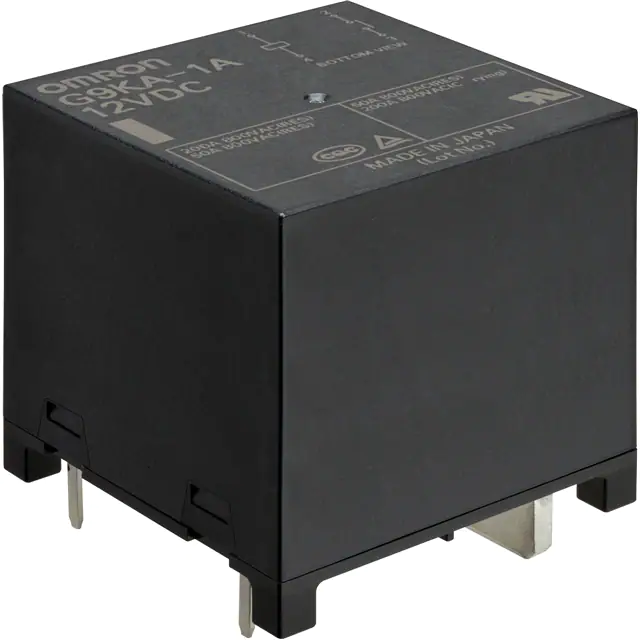

G9KA-1A DC12RELAY GEN PURPOSE SPST 200A 12V |
4,494 | - |
|
Datasheet | G9KA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 260 A | 800VAC, 60VDC - Max | 208000VA, 12000W | 417 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G6B-4BND DC5RELAY GEN PURPOSE SPST 5A 5V |
3,658 | - |
|
Datasheet | G6B-4 | Bulk | Active | DIN Rail | 5VDC | SPST-NO (1 Form A) x 4 | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 35.5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 4 VDC | 0.5 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|
G5Q-1A-EL-HA-VH DC12RELAY GEN PURPOSE SPST 10A 12V |
1,435 | - |
|
Datasheet | G5Q-EL | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
