Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9TB5003GAC Latching Relay - 120A |
1,966 | - |
|
Datasheet | G9TB | Bulk | Active | Socketable | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 451 mA | Latching, Dual Coil | - | Plug In | Sealed - Flux Protection | - | 9.6 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|

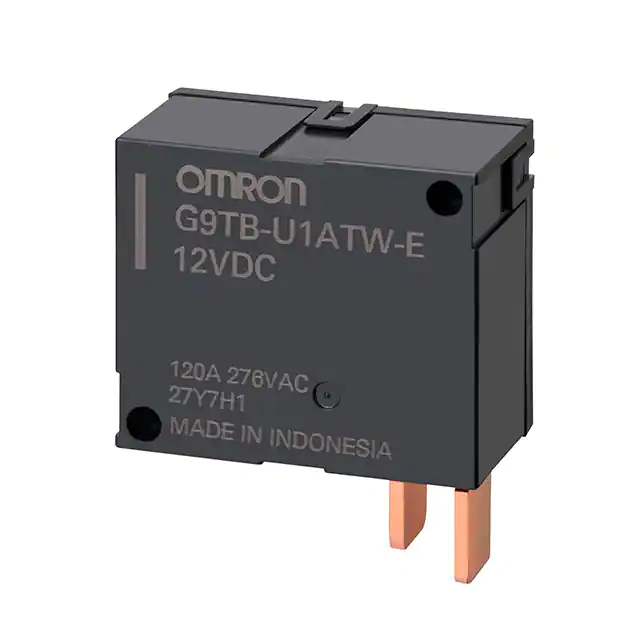

G9TB-U1ATW-E DC12AC POWER LATCHING RELAY |
2,475 | - |
|
Datasheet | G9TB | Bulk | Active | Socketable | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 225 mA | Latching, Single Coil | - | Plug In | Sealed - Flux Protection | - | 9.6 VDC | - | 25 ms | 25 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
G9TB5004EAC Latching Relay - 120A |
2,225 | - |
|
Datasheet | G9TB | Bulk | Active | Socketable | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 225 mA | Latching, Single Coil | - | Plug In | Sealed - Flux Protection | - | 9.6 VDC | - | 25 ms | 25 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|

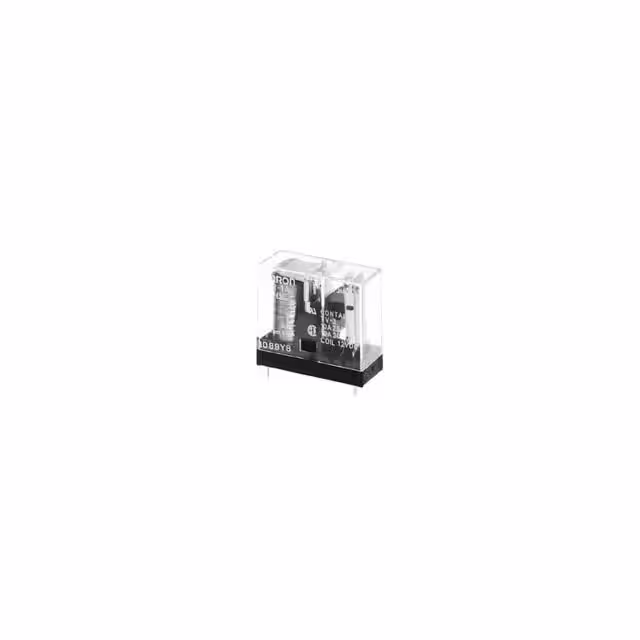

G2R-1A-E-DC110POWER RELAYS - LOW SIGNAL RELAY |
3,410 | - |
|
Datasheet | G2R | Box | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | - | 4.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | 16.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G6CK1126FRELAY GEN PURPOSE SPST 10A 24V |
1,686 | - |
|
Datasheet | G6C | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 11.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G7L-2A-B-J-CB-DC12POWER RELAYS - DPST-NO,SCRW,TB , |
3,566 | - |
|
Datasheet | G7L | Box | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | - | 158 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
G7L-2A-BUBJ-CB-DC110POWER RELAYS - 25A GP RY 2A SCRE |
2,972 | - |
|
Datasheet | G7L | Box | Active | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | - | 17.3 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 82.5 VDC | 16.5 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
G7EB-1AP1-DC24HIGH POWER POWER RELAY |
2,905 | - |
|
Datasheet | G7EB | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 100 A | 800VAC, 60VDC - Max | 80000VA, 6000W | 116.5 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

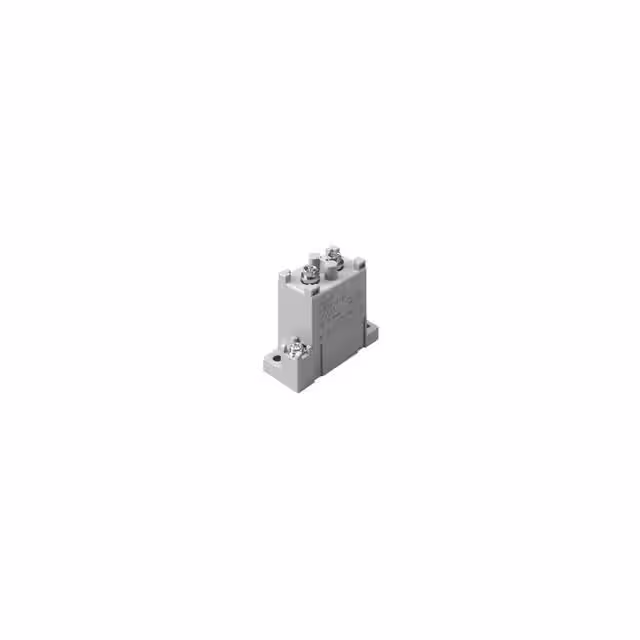

G9EB-1-B-DC60DC POWER RELAY |
2,325 | - |
|
Datasheet | G9EB-1 | Bulk | Active | Chassis Mount | 60VDC | SPST-NO (1 Form A) | 25 A | 250VAC - Max | - | 33.3 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 45 VDC | 0.6 VDC | 30 ms | 15 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|

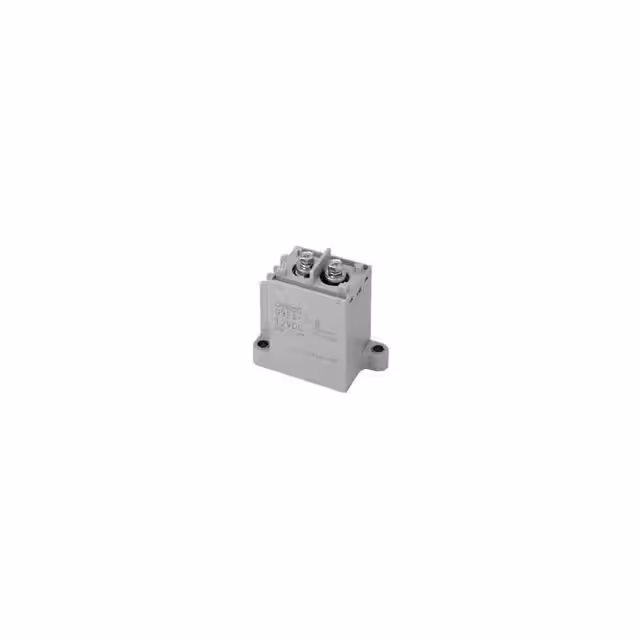

G9EA-1-CA-DC48DC POWER RELAY |
3,505 | - |
|
Datasheet | G9EA-1 | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Max | - | 102 mA | Non Latching | - | Wire Leads | Sealed - Fully | - | 36 VDC | 3.84 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
