Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6B-4CB-DC12HEAVY DUTY RELAYS - RELAY TERMIN |
3,478 | - |
|
Datasheet | G6B-4 | Box | Active | DIN Rail | 12VDC | 4PDT (4 Form C) | 5 A | 380VAC, 125VDC - Max | - | 25 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|
|
G9EC-1-B-DC60DC POWER RELAY |
4,749 | - |
|
Datasheet | G9EC-1 | Bulk | Active | Chassis Mount | 60VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | - | 188 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 45 VDC | 4.8 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | General Purpose | - | - |
|
G5Q-1A4-EL3-HA DC24RELAY GEN PURPOSE SPST 10A 24V |
1,466 | - |
|
Datasheet | G5Q-EL3 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G5Q-14-EU DC12RELAY GEN PURPOSE SPDT 10A 12V |
1,515 | - |
|
Datasheet | G5Q | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
G5RL-1-E AC115/120RELAY GEN PURPOSE SPDT 16A 120V |
1,325 | - |
|
Datasheet | G5RL | Bulk | Active | Through Hole | 120VAC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 6.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 90 VAC | 18 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G7L-2A-X-SI DC24RELAY GEN PURPOSE DPST 30A 24V |
3,256 | - |
|
Datasheet | G7L-X | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 1000VDC - Max | 25000W | 95.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

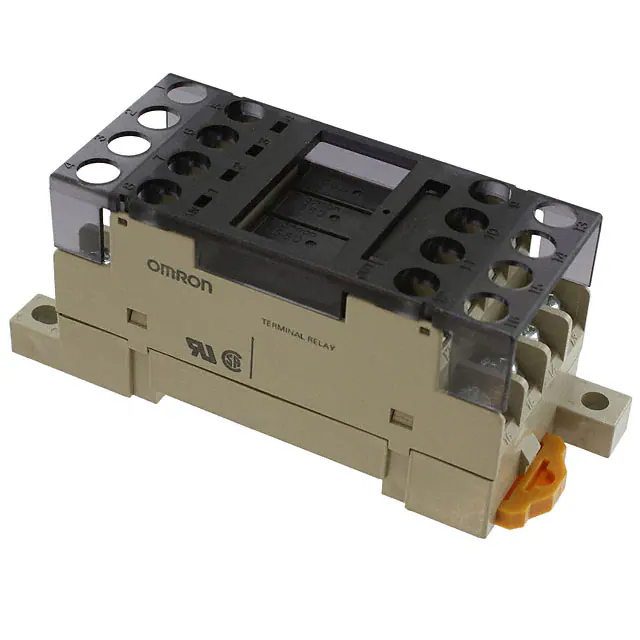

G6D-F4B DC24RELAY GEN PURPOSE SPST 3A 24V |
2,127 | - |
|
Datasheet | G6D-F4B | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 4 | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|
G9EA-1-B DC24RELAY GEN PURPOSE SPST 60A 24V |
2,707 | - |
|
Datasheet | G9EA-1 | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000W | 208 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 18 VDC | 1.92 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
G6B-4BND DC12RELAY GEN PURPOSE SPST 5A 12V |
2,242 | - |
|
Datasheet | G6B-4 | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) x 4 | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 19.1 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|
|
G5Q-1A DC24RELAY GEN PURPOSE SPST 10A 24V |
3,152 | - |
|
Datasheet | G5Q | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
