Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE1AN-P-DC6V-H18HE PV RELAY, 35A TYPE, 6VDC COIL |
4,841 | - |
|
Datasheet | HE-PV | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 35 A | 490VAC, 48VDC - Max | 17150VA, 1680W | 320 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HE1AN-S-AC120VRELAY GEN PURPOSE SPST 30A 120V |
3,331 | - |
|
Datasheet | HE | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 22.1 mA | Non Latching | - | Screw Terminal | - | - | 84 VAC | 18 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
S3EB-L2-12VRELAY GEN PURPOSE 4PST 4A 12V |
4,000 | - |
|
Datasheet | S | Box | Active | Through Hole | 12VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 15 ms | 15 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
DE2A-L-12VRELAY GEN PURPOSE DPST 8A 12V |
1,061 | - |
|
Datasheet | DE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 8.3 mA | Latching, Single Coil | - | PC Pin | - | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AHES3190RELAY GEN PURPOSE DPST 35A 6V |
1,593 | - |
|
Datasheet | HE-S | Tray | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 35 A | 277VAC - Nom | - | 313 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.5 VDC | 0.3 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AHES3195RELAY GEN PURPOSE DPST 35A 9V |
3,783 | - |
|
Datasheet | HE-S | Tray | Active | Through Hole | 9VDC | DPST-NO (2 Form A) | 35 A | 277VAC - Nom | - | 209 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.45 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
NC2EBD-JP-DC48VRELAY GEN PURPOSE DPDT 5A 48V |
4,508 | - |
|
Datasheet | NC | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 38.4 VDC | 4.8 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
HE1AN-Q-DC110VRELAY GEN PURPOSE SPST 30A 110V |
4,273 | - |
|
Datasheet | HE | Bulk | Active | Chassis Mount | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 17.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 77 VDC | 11 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADZS12124RELAY GEN PURPOSE SPST 90A 24V |
3,808 | - |
|
Datasheet | ADZS | Tray | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 90 A | 276VAC - Max | 24840VA | 62.5 mA | Latching, Single Coil | - | Screw Terminal | - | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

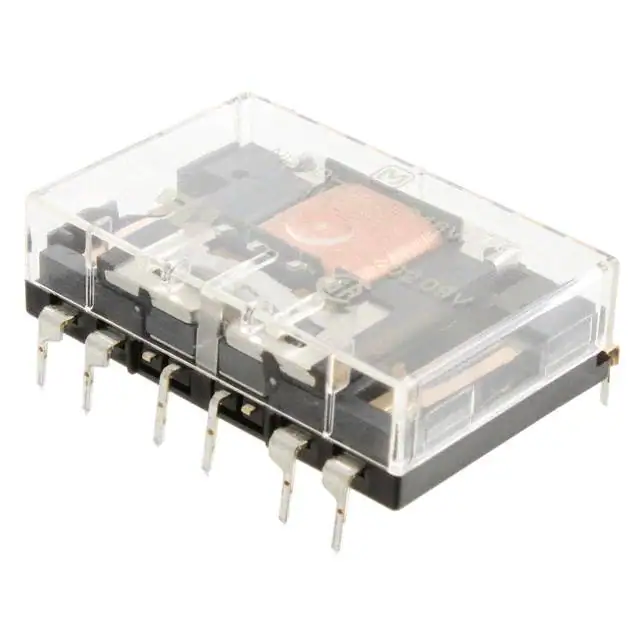

NC4D-JP-DC48VRELAY GEN PURPOSE 4PDT 5A 48V |
2,930 | - |
|
Datasheet | NC | Tube | Active | Through Hole | 48VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 15 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
