Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160D10PWR XFMR LAMINATED 1VA TH |
1,294 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 180mA, Series 90mA | Dual | Single, Multiple Taps | No | 1VA | Through Hole | PC Pin | 25.40mm L x 35.05mm W | 21.08mm | 2000Vrms | 0.13 lb (58.97 g) |
|
|
160D24PWR XFMR LAMINATED 1VA TH |
1,093 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 70mA, Series 35mA | Dual | Single, Multiple Taps | No | 1VA | Through Hole | PC Pin | 25.40mm L x 35.05mm W | 21.08mm | 2000Vrms | 0.13 lb (58.97 g) |
|
161F28PWR XFMR LAMINATED 4.4VA TH |
239 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 320mA, Series 160mA | Single | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms | 0.33 lb (149.69 g) |
|

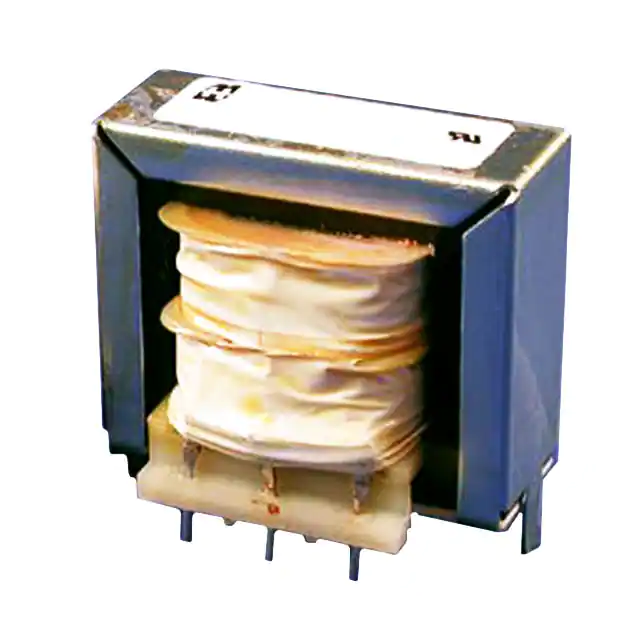

161EA20PWR XFMR LAMINATED 1.2VA TH |
132 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 120mA, Series 60mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.19 lb (86.18 g) |
|
|
161FA12PWR XFMR LAMINATED 1.2VA TH |
116 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 200mA, Series 100mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.19 lb (86.18 g) |
|
|
160D120PWR XFMR LAMINATED 1VA TH |
179 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 16mA, Series 8mA | Dual | Single, Multiple Taps | No | 1VA | Through Hole | PC Pin | 25.40mm L x 35.05mm W | 21.08mm | 2000Vrms | 0.13 lb (58.97 g) |
|
229A12PWR XFMR SEMI-TORO 6VA TH |
237 | - |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 900mA, Series 450mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 21.59mm | 1750Vrms | 0.28 lb (127.01 g) |
|
183J12PWR XFMR LAMINATED 30VA TH |
149 | - |
|
Datasheet | 183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|

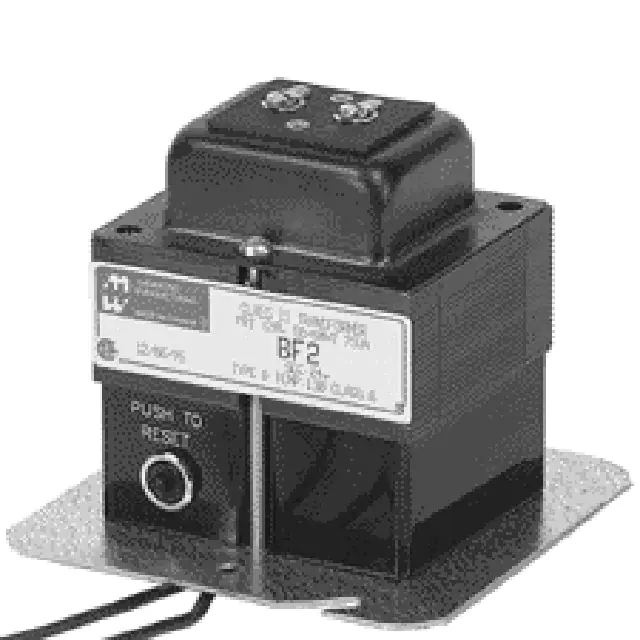

BF2GPWR XFMR LAMINATED 75VA CHAS MT |
4,967 | - |
|
Datasheet | BF | Bulk | Active | Laminated Core | 120V | 24V | 3.13A | Single | Single | No | 75VA | Chassis Mount | Wire Leads | 76.20mm L x 63.50mm W | 95.25mm | - | 3.2 lbs (1.5 kg) |
|
226NPWR XFMR SEMI-TORO 20VA TH |
3,730 | - |
|
Datasheet | 226 | Bulk | Active | Semi-Toroidal | 115V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Single | Dual | No | 20VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
