Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166L8PWR XFMR LAMINATED 17VA CHAS MT |
1,013 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 8.5V | 2A | Single | Single | Yes | 17VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.9 lb (408.23 g) |
|
186F24PWR XFMR LAMINATED 96VA CHAS MT |
4,759 | - |
|
Datasheet | 186 | Box | Active | Laminated Core | 115V, 230V | 24V | 4A | Dual | Single | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.6 lbs (1.2 kg) |
|
|
166M18PWR XFMR LAMINATED 54VA CHAS MT |
1,853 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 18V | 3A | Single | Single | Yes | 54VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2 lbs (907.2 g) |
|
|
166M25PWR XFMR LAMINATED 75VA CHAS MT |
1,738 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 25V | 3A | Single | Single | Yes | 75VA | Chassis Mount | Wire Leads | 102.36mm L x 57.15mm W | 66.80mm | 2000Vrms | 2.5 lbs (1.1 kg) |
|
|
166G100PWR XFMR LAMINATED 50VA CHAS MT |
1,578 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 100V | 500mA | Single | Single | Yes | 50VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2 lbs (907.2 g) |
|
|
166N24PWR XFMR LAMINATED 96VA CHAS MT |
2,154 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 96VA | Chassis Mount | Wire Leads | 114.30mm L x 63.50mm W | 76.20mm | 2000Vrms | 3.5 lbs (1.6 kg) |
|

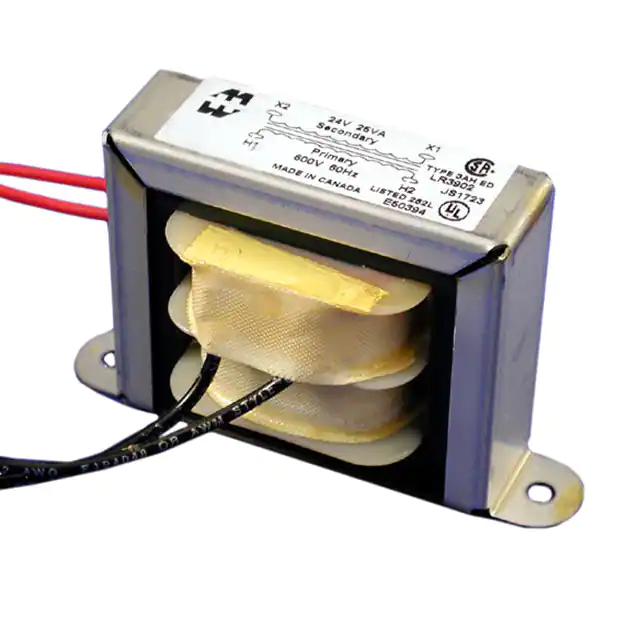

PHC25AGAPWR XFMR LAMINATED 25VA CHAS MT |
3,608 | - |
|
Datasheet | PHC | Box | Active | Laminated Core | 600V | 24V | 1.04A | Single | Single | No | 25VA | Chassis Mount | Wire Leads | 58.67mm L x 93.73mm W | 58.67mm | - | 1.4 lbs (635 g) |
|
1182E110PWR XFMR TOROIDAL 30VA CHAS MT |
2,905 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 110V, Series 220V | Parallel 272mA, Series 136mA | Dual | Dual | No | 30VA | Chassis Mount | Wire Leads | 76.20mm Dia | - | 4000Vrms | 1.1 lbs (499 g) |
|
|
1182D240PWR XFMR TOROIDAL 30VA CHAS MT |
2,256 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | 240V | 125mA | Dual | Single | No | 30VA | Chassis Mount | Wire Leads | 76.20mm Dia | 31.75mm | 4000Vrms | 1.1 lbs (499 g) |
|
269EXPWR XFMR LAMINATED 43VA CHAS MT |
3,451 | - |
|
Datasheet | 269 | Bulk | Active | Laminated Core | 115V | 380V, 6.3V | 71mA, 2.5A | Single | Dual | Yes | 43VA | Chassis Mount | Wire Leads | 55.63mm L x 66.80mm W | 66.80mm | 2000Vrms | 1.8 lbs (816.5 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
