Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

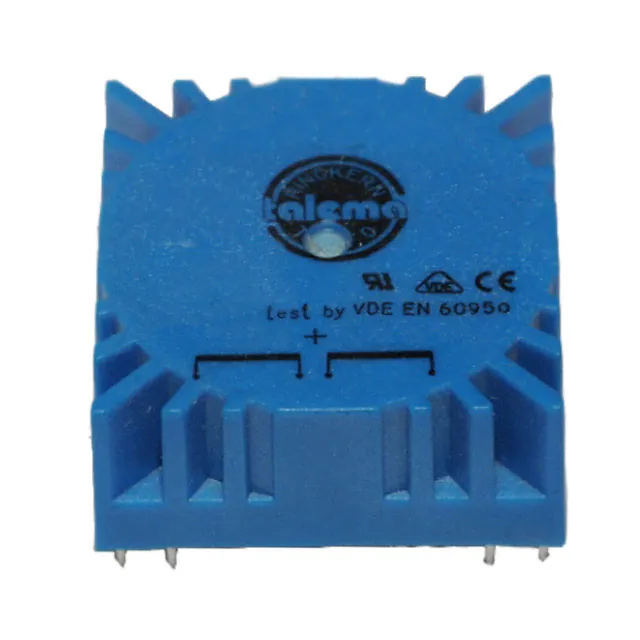

70011KPWR XFMR TOROIDAL 3.2VA TH |
229 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 356mA, Series 178mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms | 0.197 lb (89.36 g) |
|

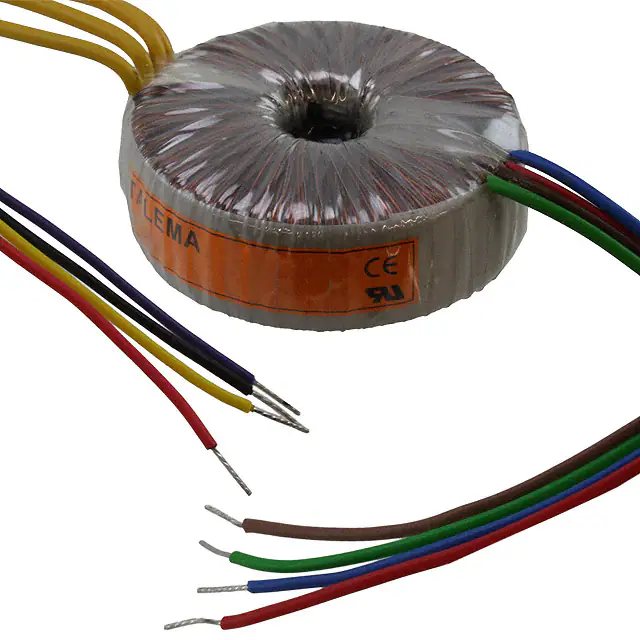

62054PWR XFMR TOROIDAL 15VA CHAS MT |
134 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 834mA, Series 417mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
70020KPWR XFMR TOROIDAL 5VA TH |
179 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 714mA, Series 357mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 19.50mm | 4000Vrms | 0.254 lb (115.21 g) |
|
|
70032KPWR XFMR TOROIDAL 7VA TH |
154 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 584mA, Series 292mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms | 0.32 lb (145.15 g) |
|
70070KPWR XFMR TOROIDAL 35VA TH |
127 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 5A, Series 2.5A | Dual | Dual | No | 35VA | Through Hole | PC Pin | 72.00mm L x 72.00mm W | 37.50mm | 4000Vrms | 1 lb (453.59 g) |
|

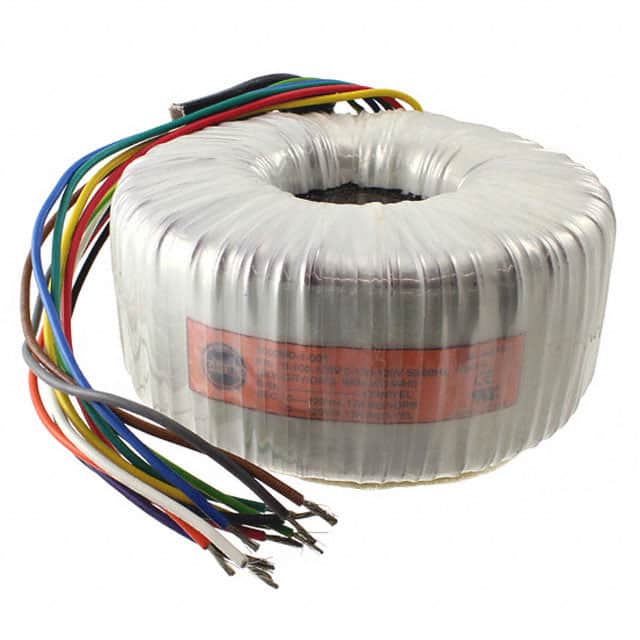

1000MD-1-003PWR XFMR TOROIDAL 1000VA CHAS MT |
2,286 | - |
|
Datasheet | MD | Box | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 8.33A, Series 4.17A | Dual, Multiple Taps | Single, Multiple Taps | No | 1000VA | Chassis Mount | Wire Leads | 168.00mm Dia x 80.00mm W | - | 5000Vrms | 18 lbs (8.2 kg) |
|
1500MD-1-004PWR XFMR TOROIDAL 1500VA CHAS MT |
1,879 | - |
|
Datasheet | MD | Box | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 12.5A, Series 6.25A | Dual, Multiple Taps | Single, Multiple Taps | No | 1500VA | Chassis Mount | Wire Leads | 200.00mm Dia x 90.00mm W | - | 5000Vrms | 26 lbs (11.8 kg) |
|
70050KPWR XFMR TOROIDAL 15VA TH |
2,036 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 2.142A, Series 1.071A | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
70061KPWR XFMR TOROIDAL 25VA TH |
4,187 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 2.754A, Series 1.377A | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
62051PWR XFMR TOROIDAL 15VA CHAS MT |
1,699 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 1.66A, Series 833mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
