Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

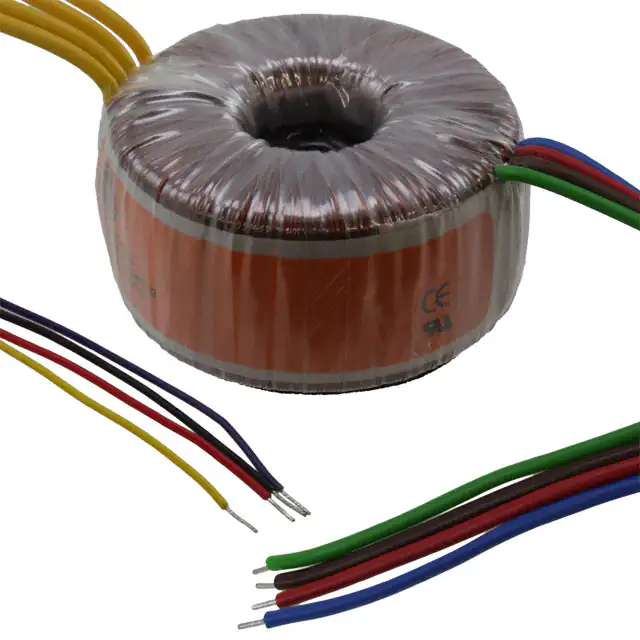

62060PWR XFMR TOROIDAL 25VA CHAS MT |
1,669 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 3.57A, Series 1.785A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
70051KPWR XFMR TOROIDAL 15VA TH |
3,643 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 1.666A, Series 833mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
70055KPWR XFMR TOROIDAL 15VA TH |
3,943 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 682mA, Series 341mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|
62052PWR XFMR TOROIDAL 15VA CHAS MT |
2,767 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.25A, Series 625mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
62053PWR XFMR TOROIDAL 15VA CHAS MT |
2,019 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1A, Series 500mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
70073KPWR XFMR TOROIDAL 35VA TH |
2,295 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 2.332A, Series 1.166A | Dual | Dual | No | 35VA | Through Hole | PC Pin | 72.00mm L x 72.00mm W | 37.50mm | 4000Vrms | 1 lb (453.59 g) |
|

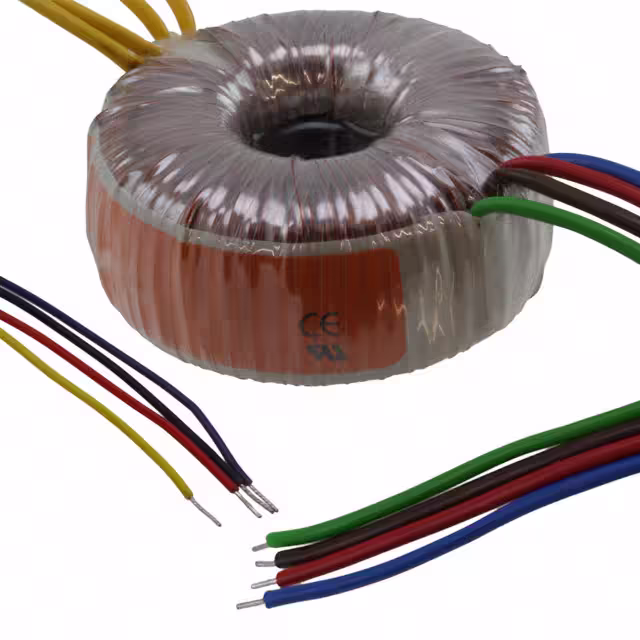

62072PWR XFMR TOROIDAL 35VA CHAS MT |
2,799 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.916A, Series 1.458A | Dual | Dual | No | 35VA | Chassis Mount | Wire Leads | - | - | 4000Vrms | 1 lb (453.59 g) |
|

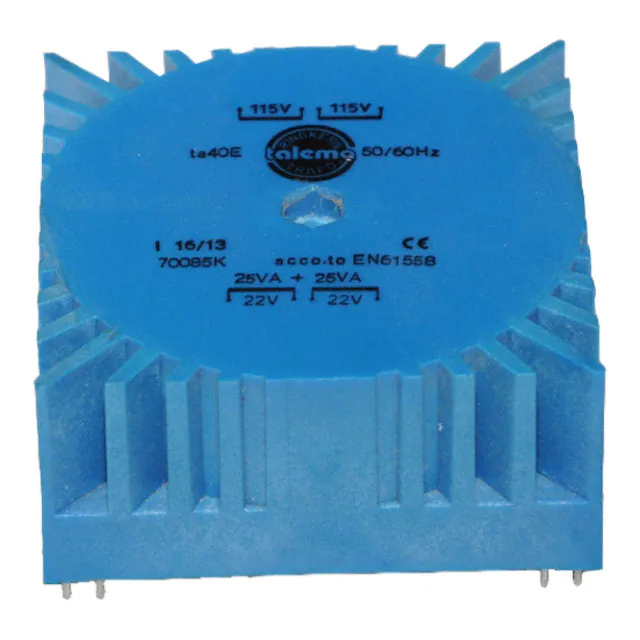

70084KPWR XFMR TOROIDAL 50VA TH |
2,674 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 2.776A, Series 1.388A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.5 lbs (680.4 g) |
|
|
70083KPWR XFMR TOROIDAL 50VA TH |
1,437 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 3.332A, Series 1.666A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.5 lbs (680.4 g) |
|
|
70082KPWR XFMR TOROIDAL 50VA TH |
3,182 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.166A, Series 2.083A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.5 lbs (680.4 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
