Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

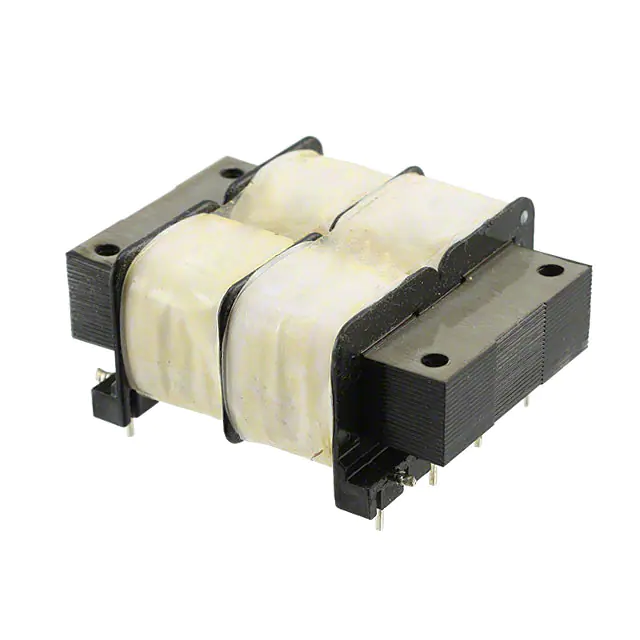

PF24-34PWR XFMR SEMI-TORO 24VA TH |
4,003 | - |
|
Datasheet | PF24 | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 850mA, Series 430mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.00mm L x 58.00mm W | 31.80mm | 1500Vrms | - |
|

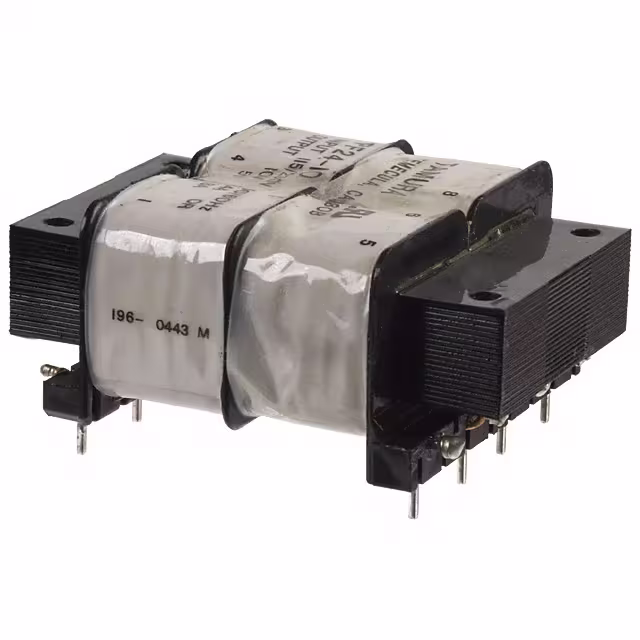

PF24-10PWR XFMR SEMI-TORO 24VA TH |
3,199 | - |
|
Datasheet | PF24 | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.00mm L x 58.00mm W | 31.80mm | 1500Vrms | - |
|

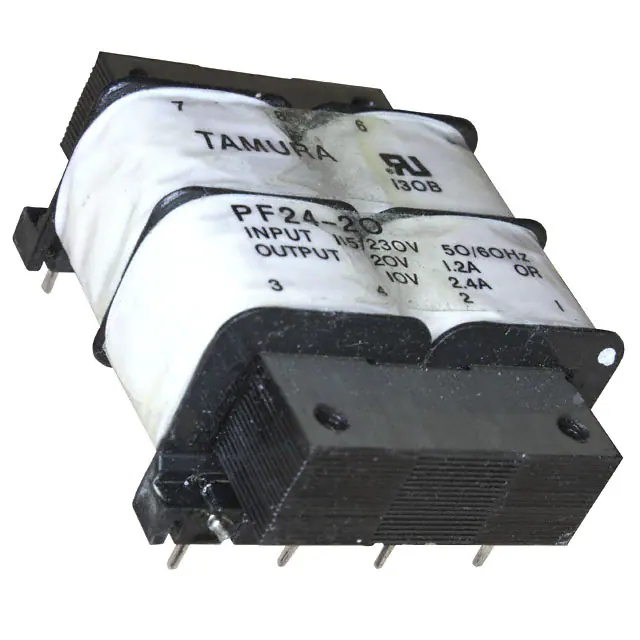

PF24-20PWR XFMR SEMI-TORO 24VA TH |
2,987 | - |
|
Datasheet | PF24 | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.00mm L x 58.00mm W | 31.80mm | 1500Vrms | - |
|
PF24-30PWR XFMR SEMI-TORO 24VA TH |
4,338 | - |
|
Datasheet | PF24 | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.00mm L x 58.00mm W | 31.80mm | 1500Vrms | - |
|
3FL34-340PWR XFMR LAMINATED 12VA TH |
3,729 | - |
|
Datasheet | 3FL | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 680mA, Series 340mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.05mm | 1500Vrms | - |
|
3FL12-950PWR XFMR LAMINATED 12VA TH |
4,631 | - |
|
Datasheet | 3FL | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1.9A, Series 950mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.05mm | 1500Vrms | - |
|
PF24-12PWR XFMR SEMI-TORO 24VA TH |
2,967 | - |
|
Datasheet | PF24 | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.8A, Series 1.9A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.00mm L x 58.00mm W | 31.80mm | 1500Vrms | - |
|
PF24-16PWR XFMR SEMI-TORO 24VA TH |
3,945 | - |
|
Datasheet | PF24 | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.00mm L x 58.00mm W | 31.80mm | 1500Vrms | - |
|
3FL20-600PWR XFMR LAMINATED 12VA TH |
1,825 | - |
|
Datasheet | 3FL | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.05mm | 1500Vrms | - |
|
PF24-24PWR XFMR SEMI-TORO 24VA TH |
4,291 | - |
|
Datasheet | PF24 | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.00mm L x 58.00mm W | 31.80mm | 1500Vrms | - |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
