Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL10-10-130BPWR XFMR LAMINATED 10VA TH |
2,978 | - |
|
Datasheet | PL10-xx130B | Tube | Obsolete | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2A, Series 1A | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 36.20mm | 3500Vrms | - |
|
PL20-10-130BPWR XFMR LAMINATED 20VA TH |
1,019 | - |
|
Datasheet | PL20-xx-130B | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.28mm | 3500Vrms | - |
|
PL56-12-130BPWR XFMR LAMINATED 56VA TH |
3,161 | - |
|
Datasheet | PL56-xx-130B | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 8.8A, Series 4.4A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 64.00mm W | 48.50mm | 3500Vrms | - |
|
PLT56-32-130BPWR XFMR LAMINATED 56VA TH |
3,750 | - |
|
Datasheet | - | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 9.3V, Series 27.5V | Parallel 680mA, Series 4A | Dual | Dual | Yes | 56VA | Through Hole | PC Pin | 76.20mm L x 64.00mm W | 48.50mm | 3500Vrms | - |
|
10A009PWR XFMR LAMINATED TH |
4,269 | - |
|
Datasheet | - | Bulk | Active | Laminated Core | 230V | 10V | 50mA | Single | Single, Multiple Taps | Yes | - | Through Hole | PC Pin | 29.46mm L x 28.45mm W | 27.94mm | 4000Vrms | - |
|
PFT6-32PWR XFMR SEMI-TORO 6VA TH |
1,092 | - |
|
Datasheet | - | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 17.5V, Series 31.5V | Parallel 155mA, Series 65mA | Dual | Dual | Yes | 6VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 21.60mm | 1500Vrms | - |
|

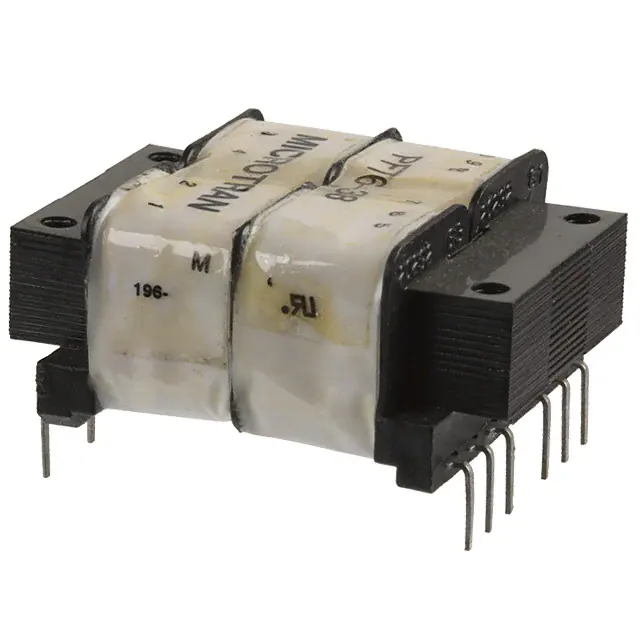

PFT6-38PWR XFMR SEMI-TORO 6VA TH |
3,656 | - |
|
Datasheet | - | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 17.5V, Series 37.5V | Parallel 155mA, Series 60mA | Dual | Dual | Yes | 6VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 21.60mm | 1500Vrms | - |
|

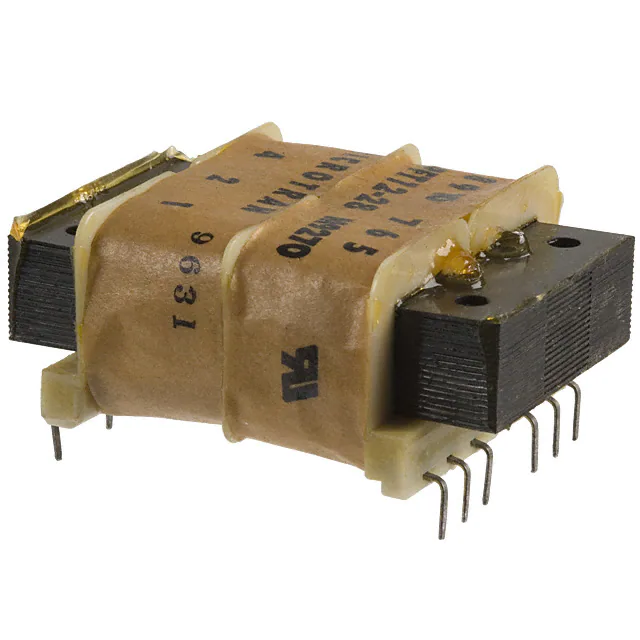

PFT12-28PWR XFMR SEMI-TORO 12VA TH |
2,005 | - |
|
Datasheet | - | Tube | Obsolete | Semi-Toroidal | 115V, 230V | 28V, 16V | 360mA, 187mA | Dual | Dual | Yes | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.00mm | 1500Vrms | - |
|
PFT12-35PWR XFMR SEMI-TORO 12VA TH |
2,058 | - |
|
Datasheet | - | Tube | Obsolete | Semi-Toroidal | 115V, 230V | 35V, 16V | 360mA, 150mA | Dual | Dual | Yes | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.00mm | 1500Vrms | - |
|

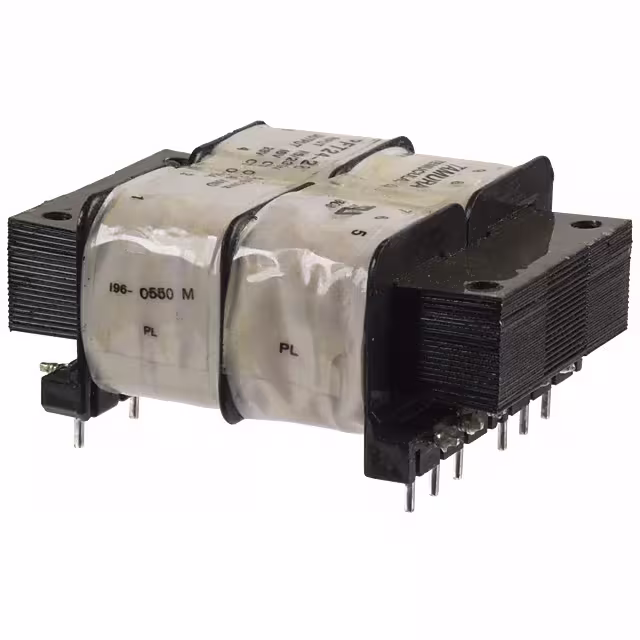

PFT24-28PWR XFMR SEMI-TORO 24VA TH |
3,276 | - |
|
Datasheet | - | Tube | Obsolete | Semi-Toroidal | 115V, 230V | Parallel 16V, Series 28V | Parallel 720mA, Series 375mA | Dual | Dual | Yes | 24VA | Through Hole | PC Pin | 73.80mm L x 58.00mm W | 31.70mm | 1500Vrms | - |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
