Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-301XPWR XFMR LAMINATED 7.5VA CHAS MT |
2,722 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 2.5V | 3A | Dual | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.45mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.68 lb (308.44 g) |
|

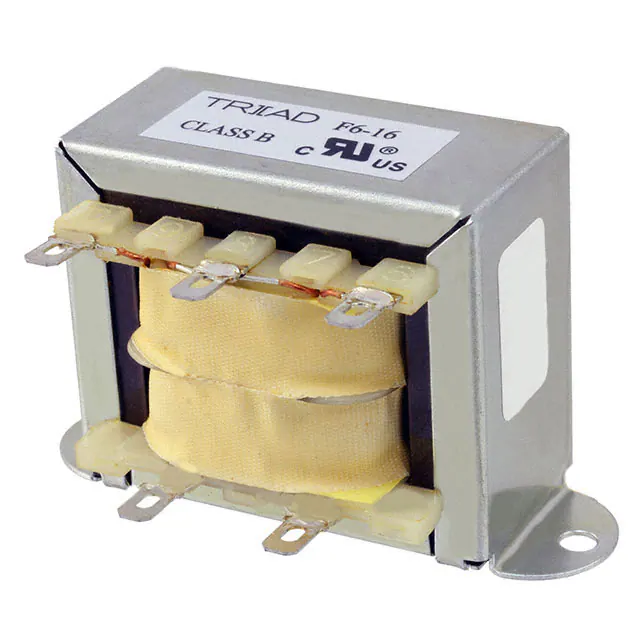

F6-16PWR XFMR LAMINATED 30VA CHAS MT |
3,056 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 16V | 2A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

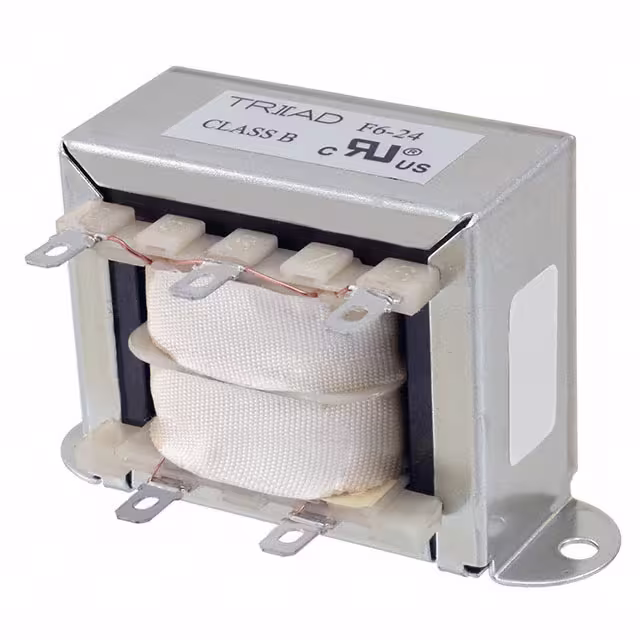

F6-24PWR XFMR LAMINATED 30VA CHAS MT |
1,016 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 24V | 1.25A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

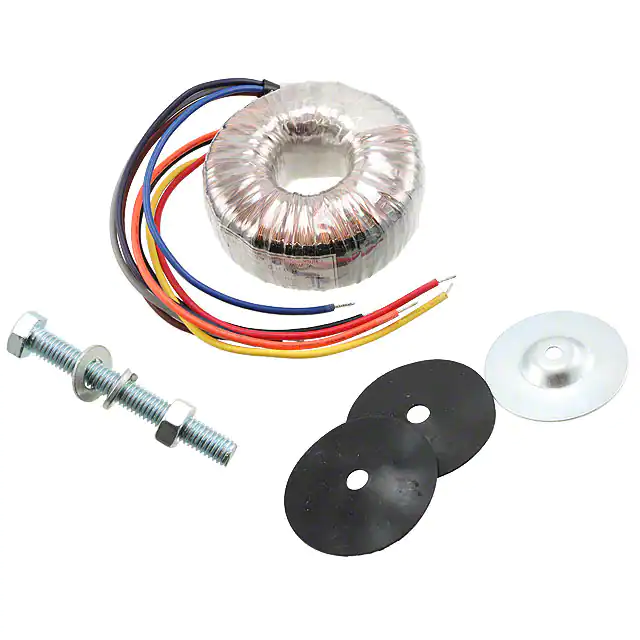

VPT48-520PWR XFMR TOROIDAL 25VA CHAS MT |
4,255 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 1.04A, Series 520mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|

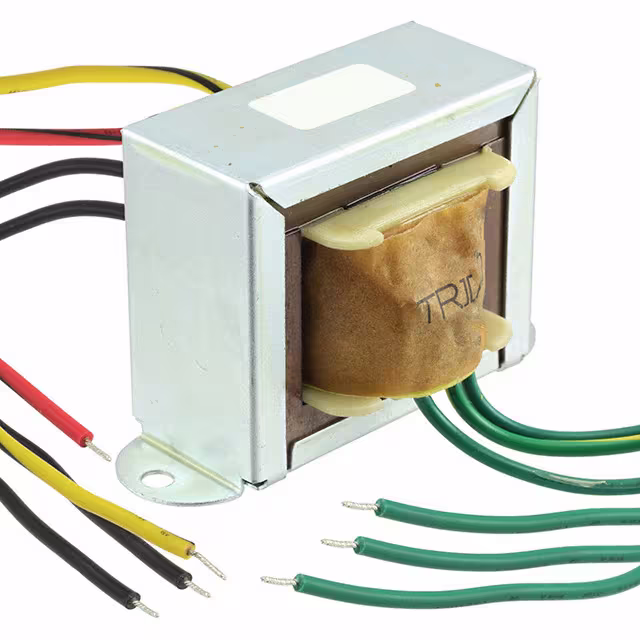

F-345XPWR XFMR LAMINATED 24VA CHAS MT |
1,336 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 24V | 1A | Dual | Single | Yes | 24VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|

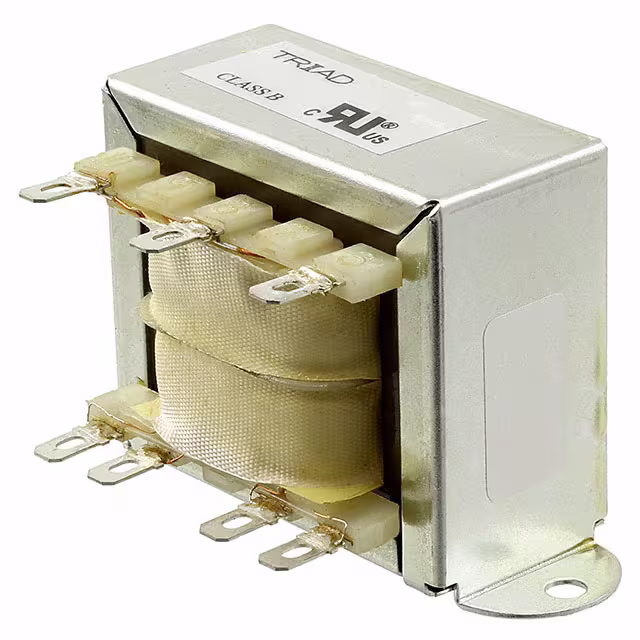

FD6-120PWR XFMR LAMINATED 30VA CHAS MT |
1,686 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 120V | 250mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

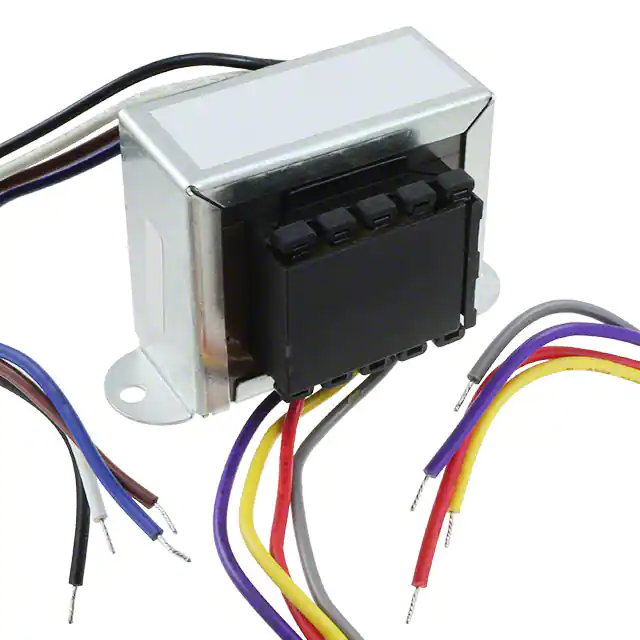

VPL2-10000PWR XFMR LAMINATED 25.0VA CHAS |
3,717 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 2.5V | 10A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|

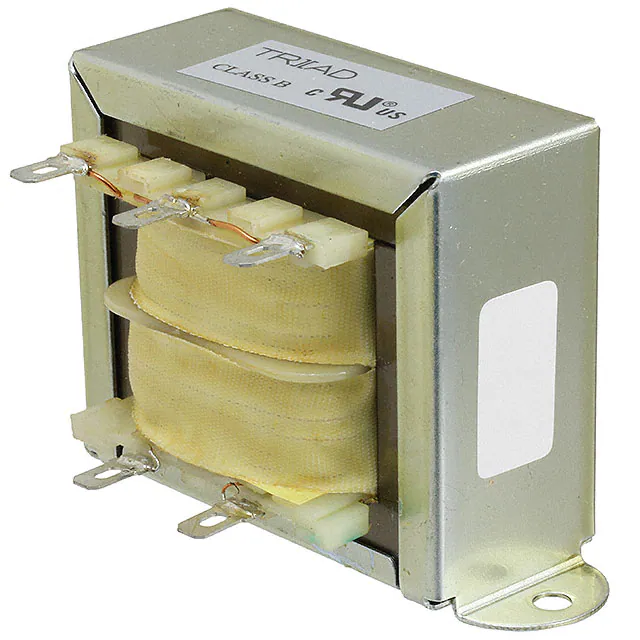

F7-24PWR XFMR LAMINATED 56VA CHAS MT |
2,900 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

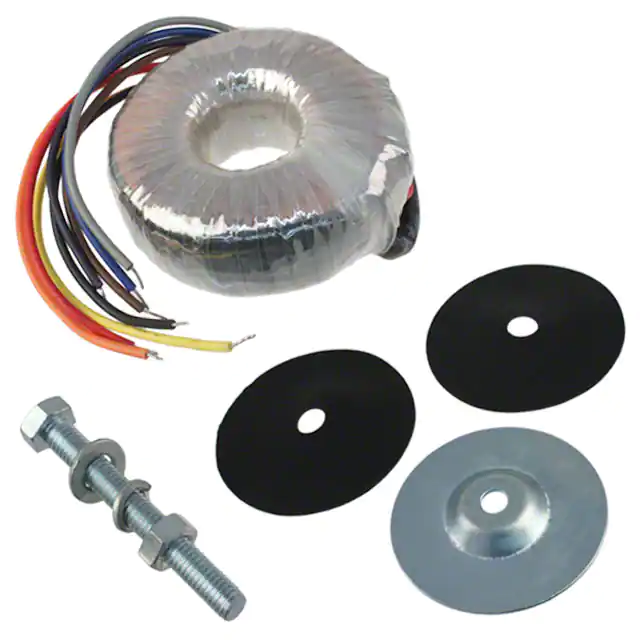

VPT230-110PWR XFMR TOROIDAL 25VA CHAS MT |
3,708 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 220mA, Series 110mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|
TCT50-01E07ABPWR XFMR LAMINATED 50VA CHAS MT |
1,952 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.00mm | 1500Vrms | 2 lbs (907.2 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
