Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPS24-3300PWR XFMR LAMINATED 80VA CHAS MT |
1,496 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 6.6A, Series 3.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|

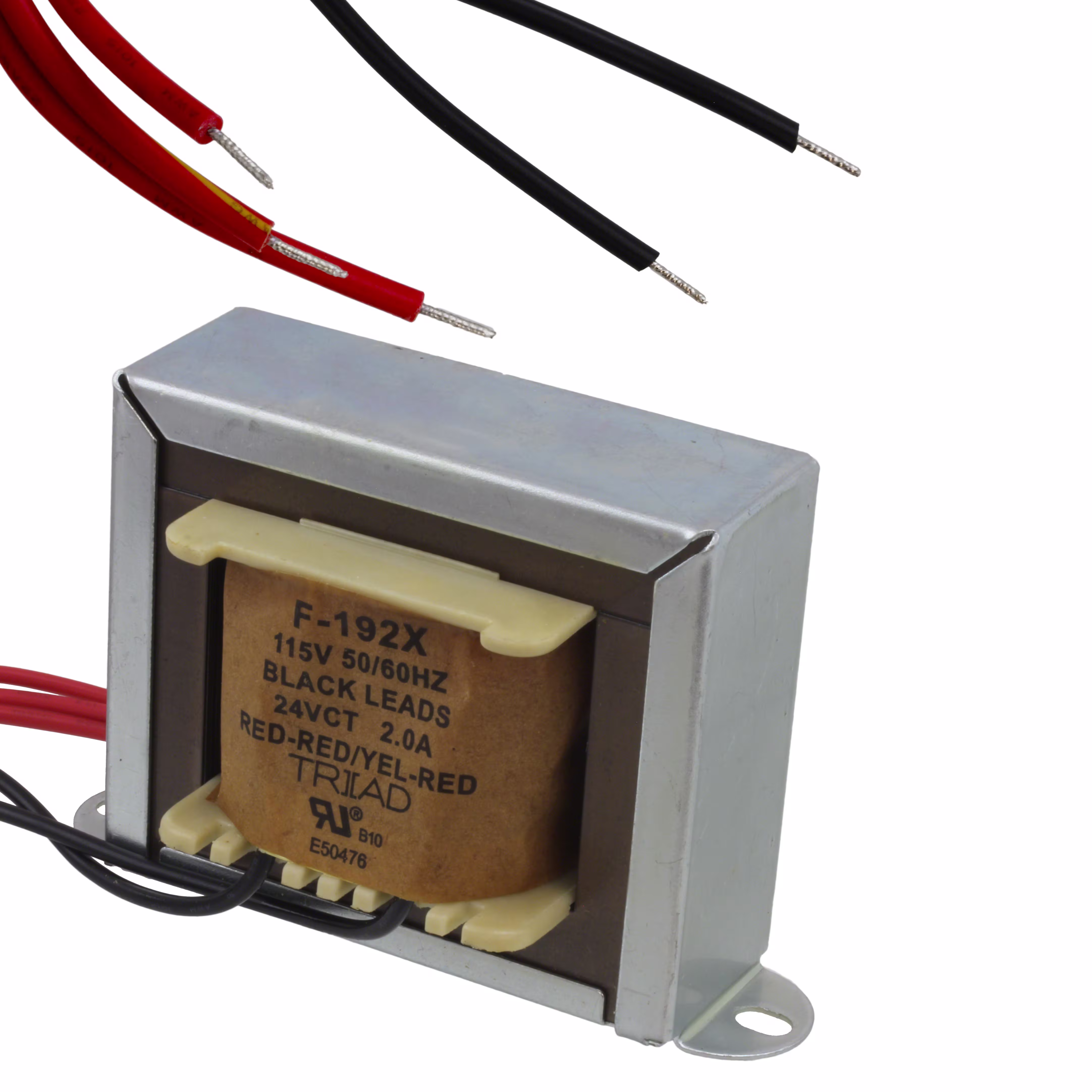

F-192XPWR XFMR LAMINATED 48VA CHAS MT |
1,399 | - |
|
Datasheet | Single Secondary | Bulk | Active | Laminated Core | 115V | 24V | 2A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.3 lbs (1 kg) |
|

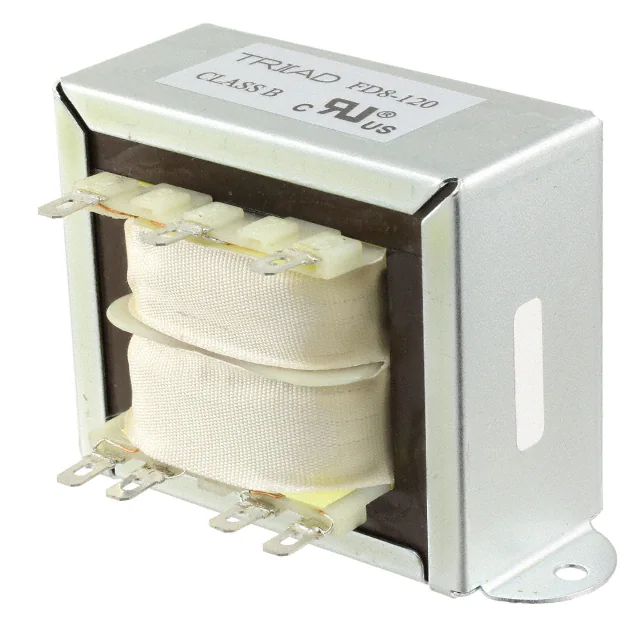

FD8-120PWR XFMR LAMINATED 100VA CHAS MT |
2,418 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 120V | 850mA | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

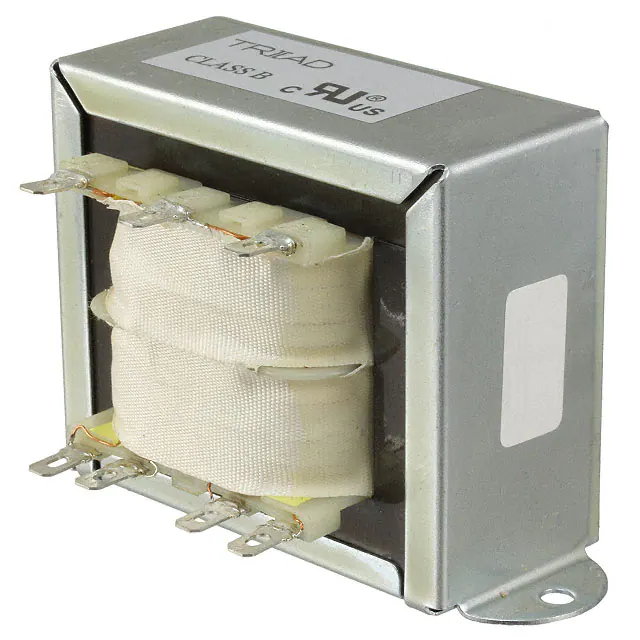

FD8-48PWR XFMR LAMINATED 100VA CHAS MT |
3,804 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 48V | 2A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

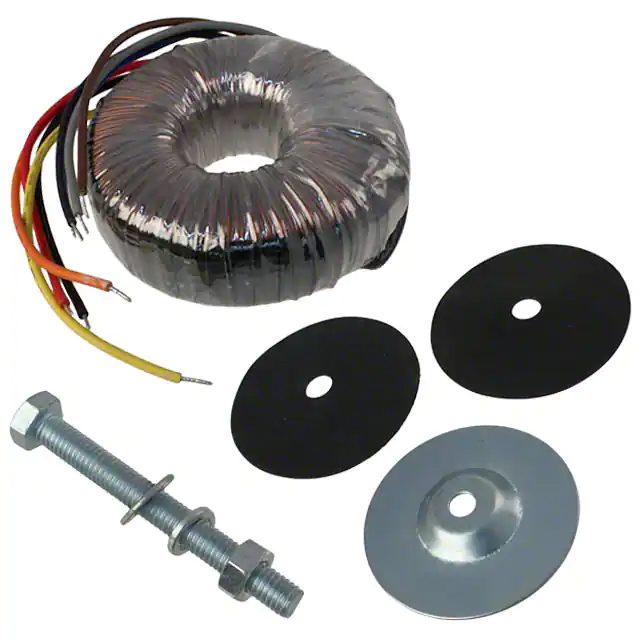

VPT18-2780PWR XFMR TOROIDAL 50VA CHAS MT |
1,180 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 5.56A, Series 2.78A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|

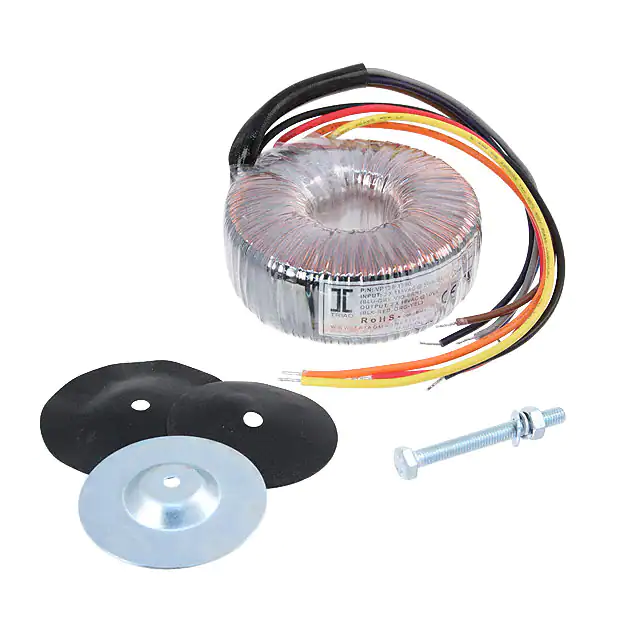

VPT36-1390PWR XFMR TOROIDAL 50VA CHAS MT |
2,241 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 2.78A, Series 1.39A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|
VPT12-4170PWR XFMR TOROIDAL 50VA CHAS MT |
4,539 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 6V, Series 12V | Parallel 8.34A, Series 4.17A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|
VPT48-1040PWR XFMR TOROIDAL 50VA CHAS MT |
3,151 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 2.08A, Series 1.04A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|
|
VPS24-5400PWR XFMR LAMINATED 130VA CHAS MT |
1,623 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 10.8A, Series 5.4A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 60.45mm L x 68.33mm W | 85.85mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|
|
VPS28-4600PWR XFMR LAMINATED 130VA CHAS MT |
1,700 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 9.2A, Series 4.6A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms | 4.1 lbs (1.9 kg) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
